treesse Phantom PR1 - Page 10

10
EN
Installation

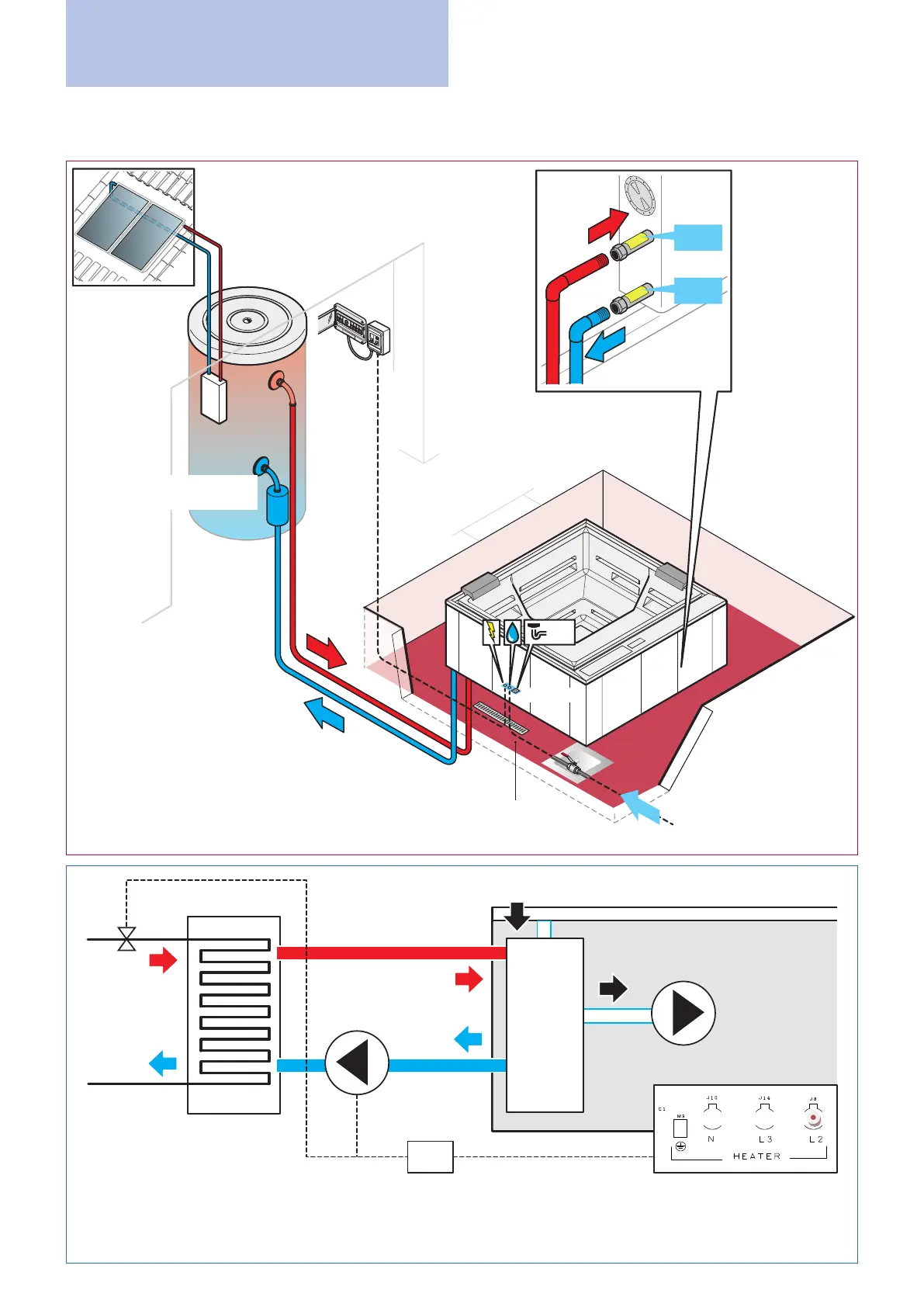

CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED)
230V
C
S
P
in
out
PR
TC
EV
BS
P2
BL 1
BL2
HTR
Cromo
230V~
EVc
EVs
EVclv
+
-
230V: heater/exchanger control cable
BS: water coming from the overow edge
C: switch (recommended)
OUT: outgoing cold water
P: circulator (not supplied)
PR: recirculation pump
S: exchanger (not supplied)
TC: minipool compensation tank
IN
OUT
IN
ø40
ø40
IN
OUT
IN
OUT
IN
OUT
OUT
IN
Electrical connection
Circulator
(not supplied)
Exchanger (not
supplied)
Room for the
electrical con-
nections
The exchanger
means the
device that heats
water (in this
manual , it is
represented by a
boiler connected
to the solar
panels)
Inlet connection:
1”1/4 female
Outlet connection:
1”1/4 female
Thecirculatormust be
installed according to the
characteristics of the do-
mestic system (head, length,
etc...) and the water content
(in litres).
Drain
Water
supply
Technical
inspection port
IN: incoming hot domestic
water
OUT: outgoing cold water
minipool Phantom
