treesse Shadow - Page 10

10
EN
Shadow minipool

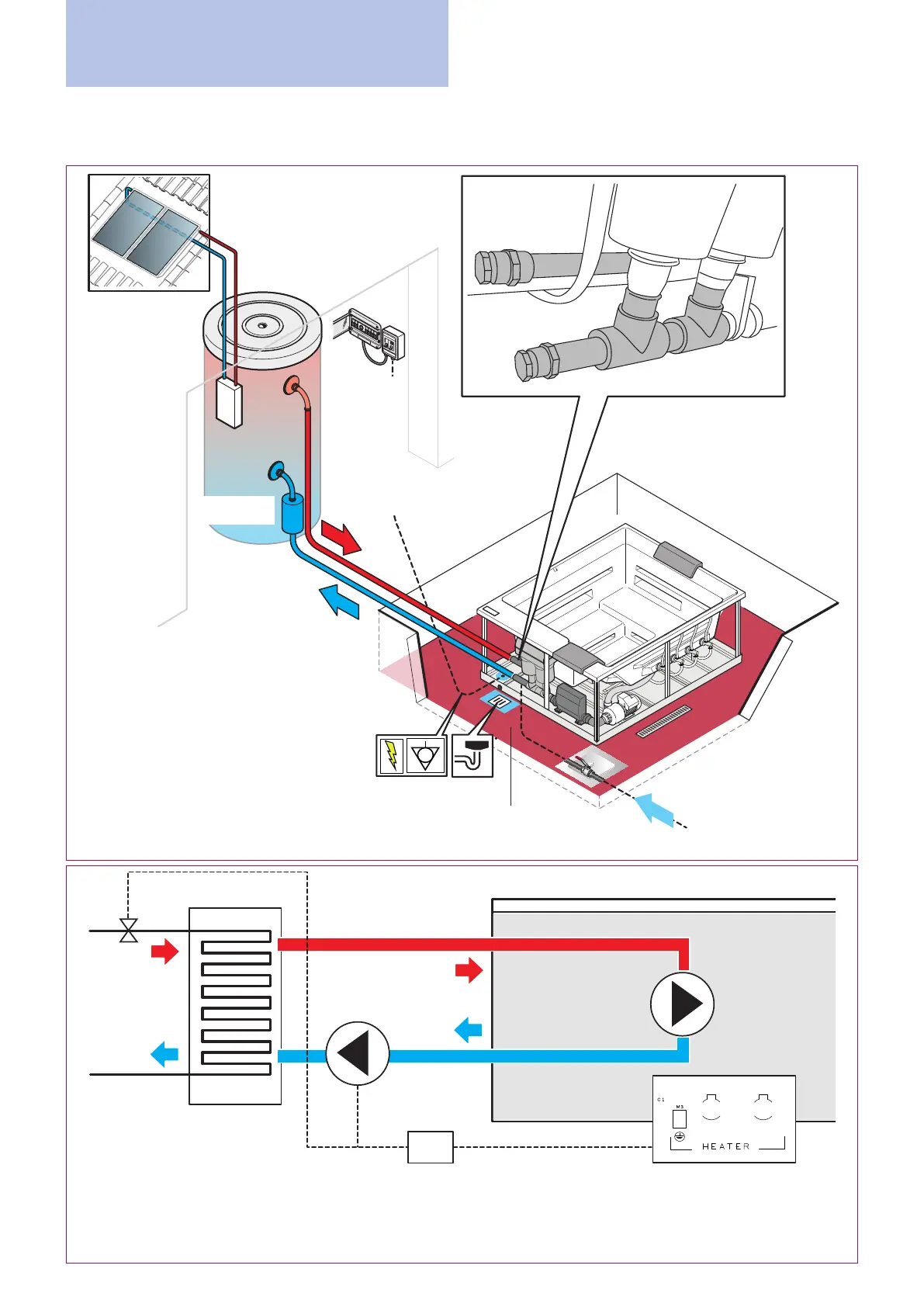

PREPARATION OF CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED)
IN
OUT
IN
IN
OUT
Electrical connection
Exchanger
(not supplied)
Circulator
(not supplied)
Room for
the electrical
connections
Drain
Water
supply
Technical
inspection
port
IN: incoming
hot domestic
water
OUT: outgoing cold
water
230V
C
S
P
in
out
PR
EV
P2
BL 1
BL2
HTR
Cromo
230V~
EVc
EVs
EVclv
+
-
J49J48
230V heater/exchanger control cable
C: switch (recommended)
OUT: outgoing cold water
P: circulator (not supplied)
PR: recirculation pump
S: exchanger (not supplied)
The Exchanger
is the device with
which domestic
water is heated
(in this manual
represented by a
boiler connected
to the solar
panels)
The circulator must be in-
stalled according to the cha-
racteristics of the domestic
system (prevalence, length,
etc.) and the water content
(in litres) of the mini-pool.
Inlet connection:
1 “1/4 female - socket
Outlet connection:
1 “1/4 female - socket
If you don’t need to
heater, disconnect plug
J44
Installation
