11
EN
Shadow minipool
IN
OUT
OUT
IN

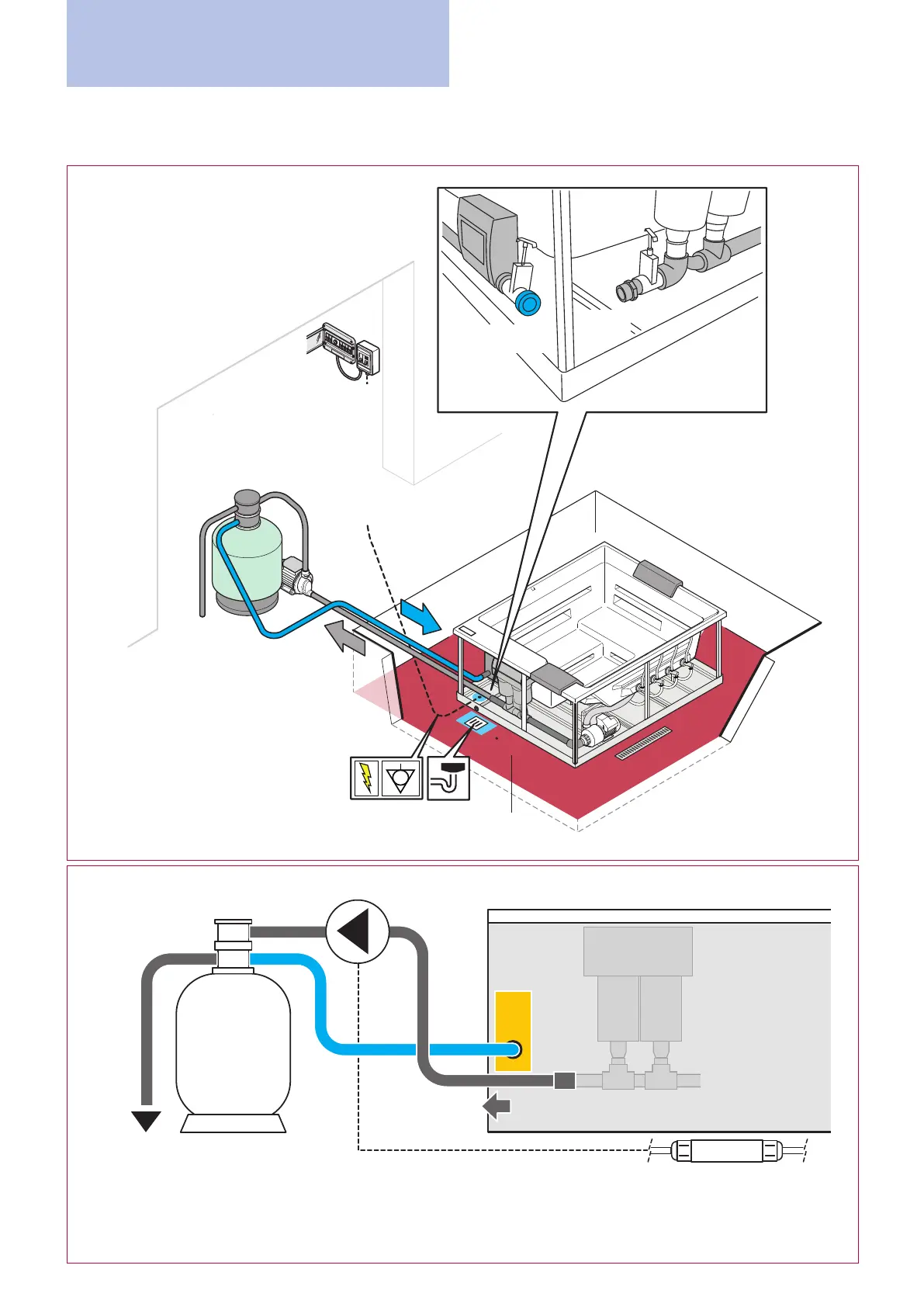

PREPARATION OF CONNECTION TO AN “SPA PACK” EXTERNAL (OPTIONAL)
Electrical connection
Room for
the electrical
connections
Drain
Technical
inspection
port
IN: incoming
water
OUT: outgoing
water
230V Circulator control cable
OUT: outgoing water
IN: incoming water
PR: recirculation pump
F: lter
C: control unit
The circulator must be in-
stalled according to the cha-
racteristics of the domestic
system (prevalence, length,
etc.) and the water content
(in litres) of the mini-pool.
Inlet connection:
1 “1/4 female - socket
Outlet connection:
1 “1/4 female - socket
230V
IN
PR
F
C
CP
Installation
