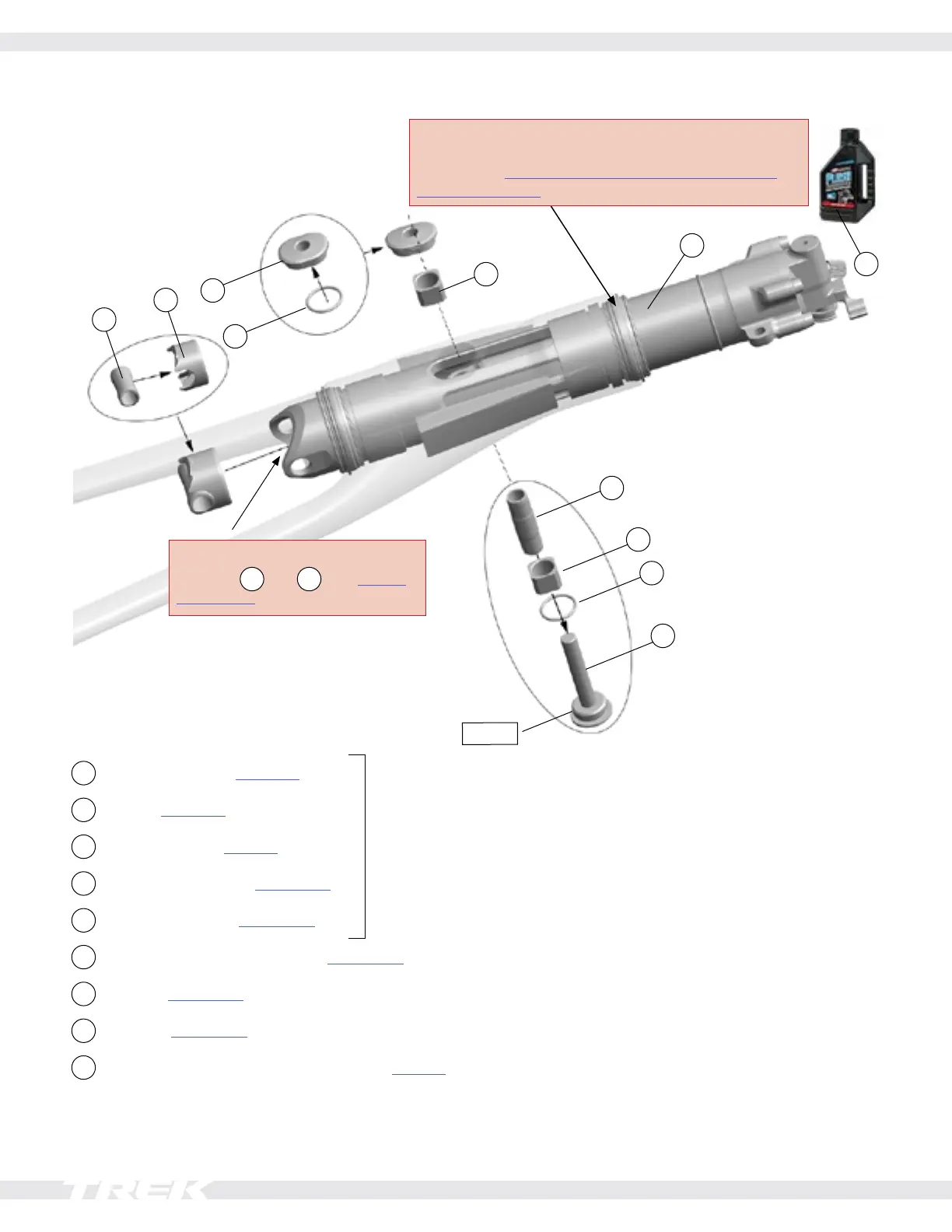

Trek SUPERCALIBER SL - IsoStrut Component Details; Damper Body Components; SIDLuxe IsoStrut Unit; IsoStrut Spacer and Oil Plug

2024 Supercaliber
12
IsoStrut
Click
1
2
3
4
3
2
5
6
7
8
Apply a light coat of Maxima Suspension Plush Fluid 10WT
oil to inner edge of the wiper seals before installing the
IsoStrut. See Bushings, carriage wiper seals, and foam
blocks on page 14.
Important: Add oil to IsoStrut before
installing
7
and
8
. See Add oil
on page 13.
7Nm
9
1
Damper body nut — W601176
— Damper body components
2
O-ring — W601177
3
Guide bushings — 591628
4
Damper body sleeve — W5290778
5
Damper body bolt — W5306808
6
SIDLuxe IsoStrut by ROCKSHOX — W5308335
7
Spacer — W5291120
8
Oil plug — W5292128
9
Maxima Suspension Plush Fluid 10WT oil — 600297
