Trek SUPERCALIBER SL - Rear Axle Installation (UDH); Switch Lever and Thru Axle; Dropout Brake Mount; UDH Derailleur Hanger

2024 Supercaliber
3

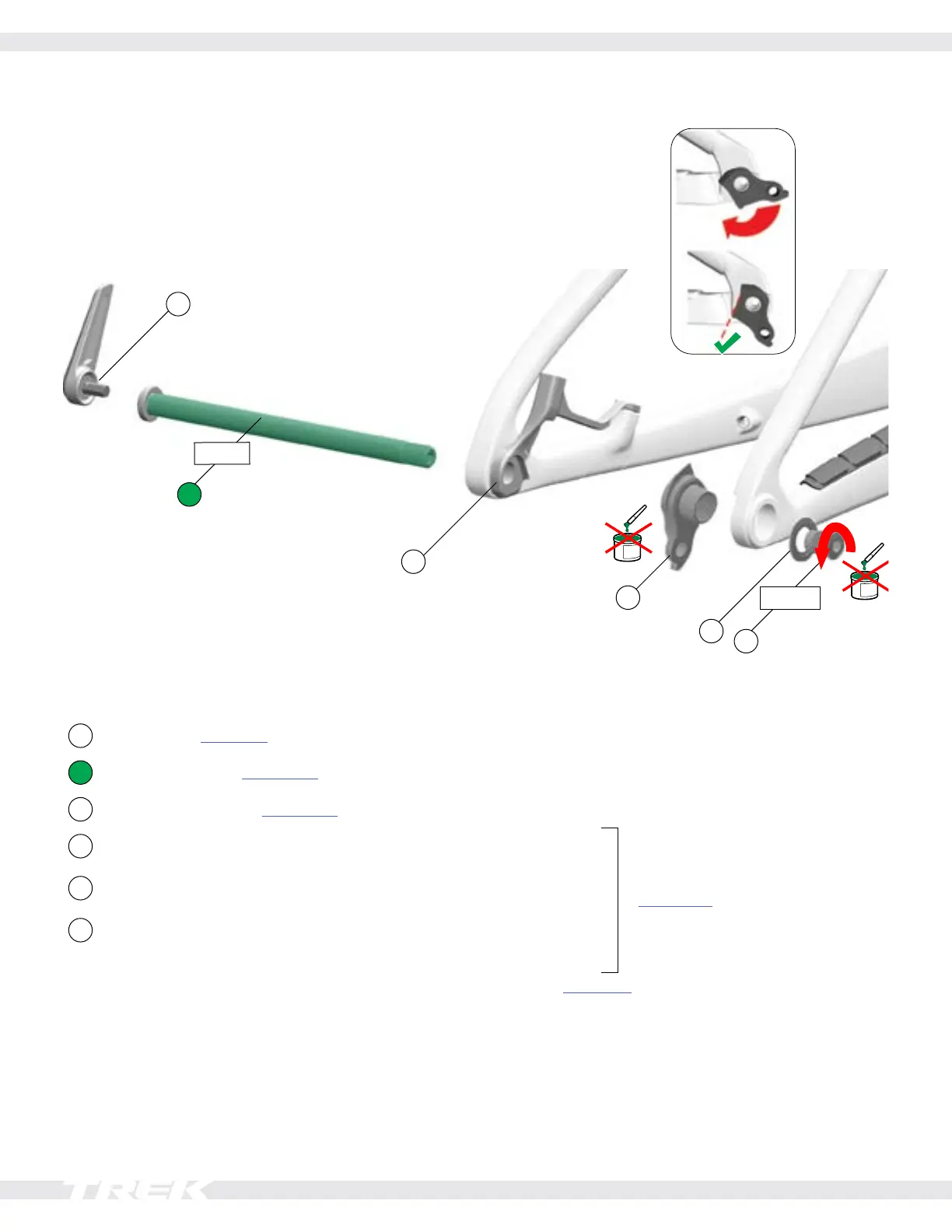

Rear axle with UDH
1
2
3
25Nm
10Nm
4
5
6
1
Switch lever — W573860
2
Thru axle, 12x180 — W5290786
3
Dropout brake mount — W5307257
4
Derailleur hanger, UDH
Notice: Do not apply grease.
— W5271424
5
Washer, 25mm
Notice: The washer is frame-specic. Install only the washer size specied.
6
Bolt
Notice: Do not apply grease. Left-hand thread. Do not over-tighten.
Over-tightening could cause the hangar to break
For additional information about the UDH, refer to the SRAM user manual at sram.com.
