Trek SUPERCALIBER SL - Table of Contents; SLR Routing with; AXS Shifting

2024 Supercaliber
1

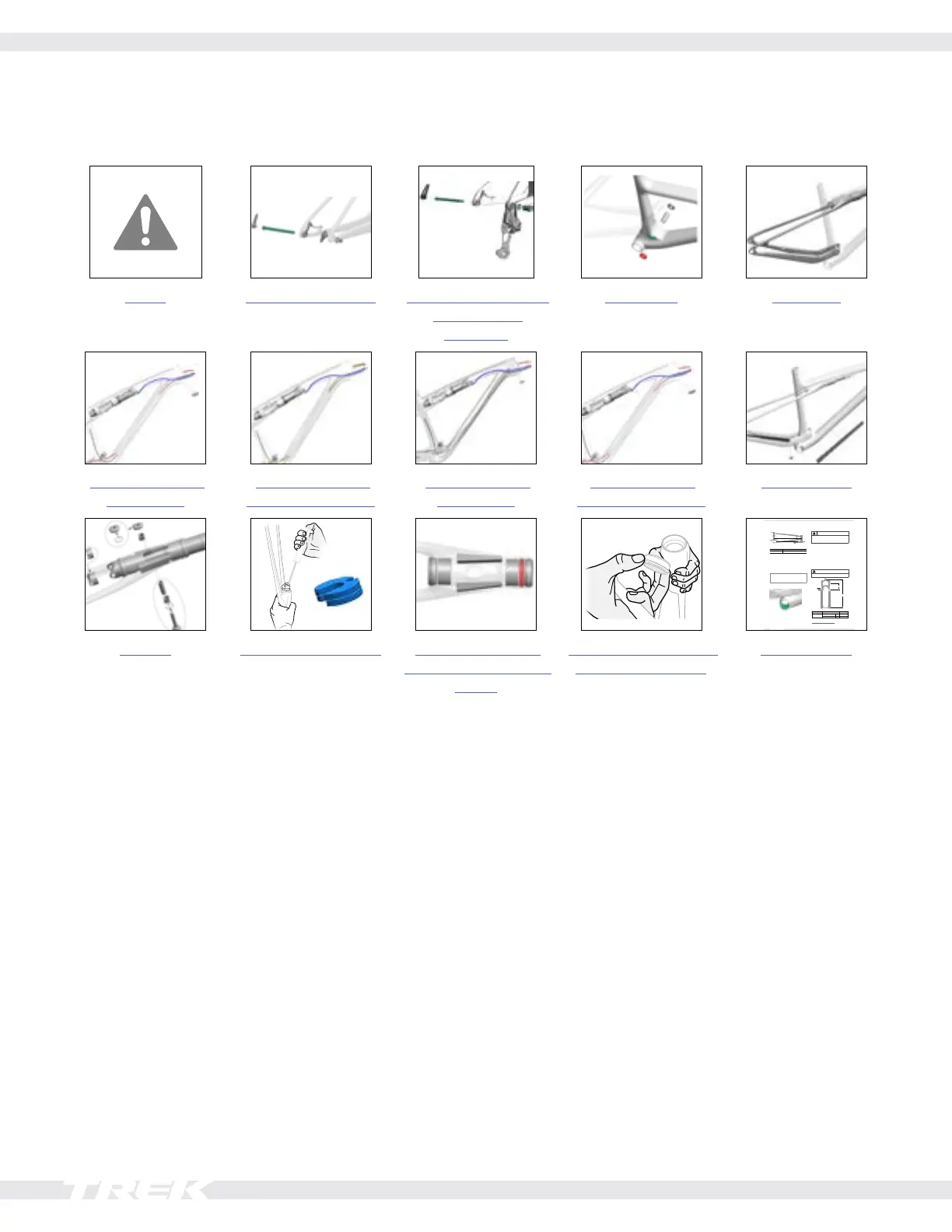

Contents
Safety Rear axle with UDH Rear axle with SRAM
Transmission
Derailleur
Main pivot Swingarm
SLR routing with
AXS shifting
SLR routing with
mechanical shifting
SL routing with
AXS shifting
SL routing with
mechanical shifting
Frame guards
2024 Supercaliber
19
Specifications
Chainline (1x only)
55mm
Chainring (1x only)
Minimum Maximum
30T Round 38T Round
Rear brake mount
160mm Direct Post Mount
OLD
Rear Hub: 148mm
Maximum tire size
29" x 2.4"
Notice: Measurements of actual tires may vary. Always
verify there is sufcient clearance between the tire and
the frame. Improper tire size could damage the bicycle
frame. Trek recommends 6mm clearance above and on
the sides of the tire.
Bottom bracket
Press t BB92
Seat post
WARNING
Always follow the seatpost manufacturer’s minimum
insertion recommendation. Failure to follow the recom-
mendation could cause damage to the seatpost and
result in injury to the rider.
Minimum insertion: Refer to seatpost manufacturer
Maximum insertion:
S: 215
M: 225
ML: 250
L: 270
XL: 330
Seat tube inside diameter: 31.6mm
Seat tube post clamp outer diameter: 36.2mm
Fork
WARNING
Exceeding the recommended maximum fork length could
damage the bicycle and result in injury to the rider.
Travel
Sag
Axle to Crown
Frame/Size Axle to Crown (mm) Travel (mm)
S, M, ML, L, XL Recommended 515 1 10
Maximum 533 120
Recommended sag: Refer to the suspension setup card
included with your bike or the suspension calculator at
Trekbikes.com/suspension-calculator.
IsoStrut IsoStrut maintenance Bushings, carriage
wiper seals, and foam
blocks
Replace bushings and
carriage wiper seals
Specications
