Trek SUPERCALIBER SL - Cable Routing: SLR AXS Shifting; Rear Brake Hose Routing; IsoStrut Lockout Cable Housing; Dropper Seatpost Cable Housing

2024 Supercaliber
7
SLR routing with AXS shiing
Note: The fork must be removed to route the brake hose and IsoStrut lockout cable housing.
Important:

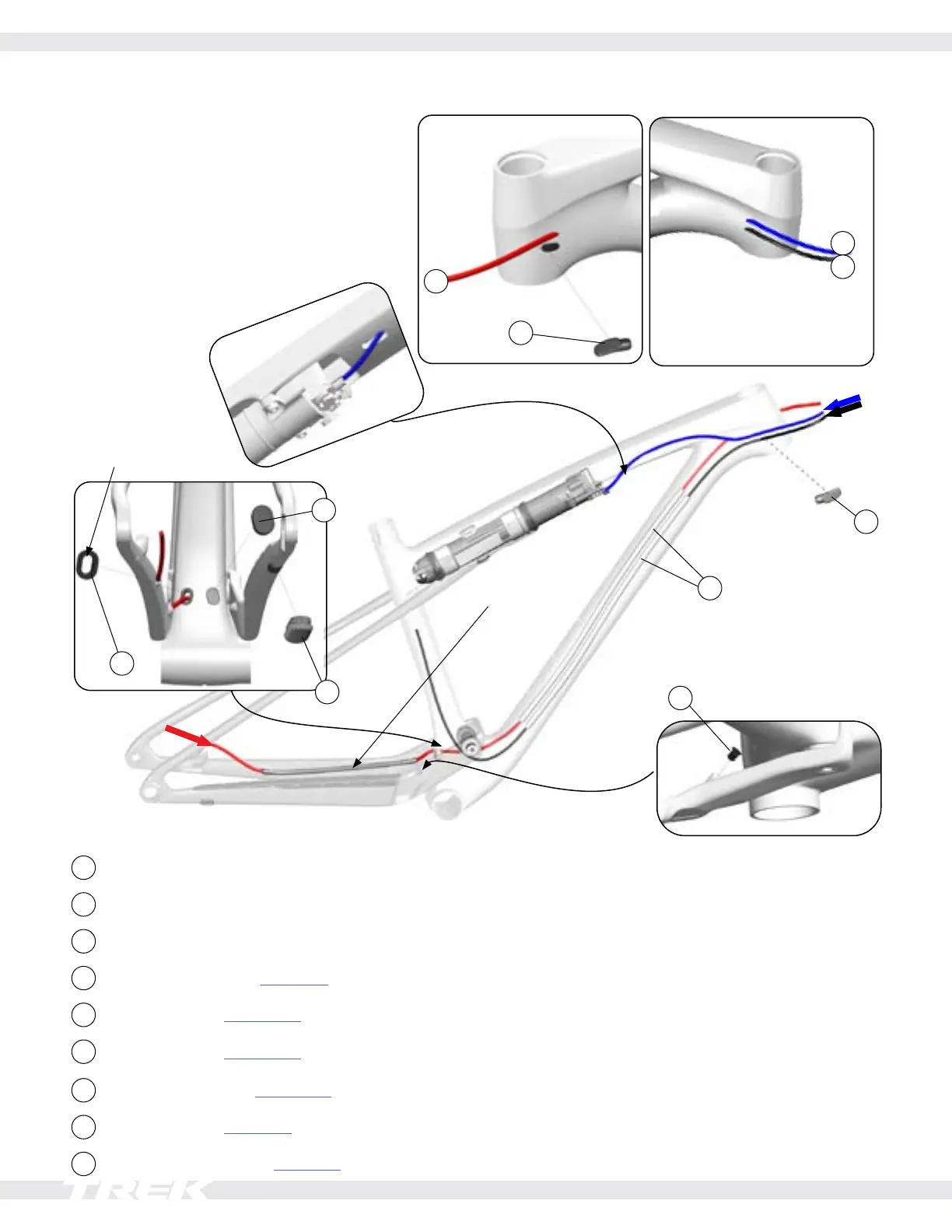

Route the cables as shown below.
4
8
7
5
6
1
2
Install the grommet prior
to routing the brake hose.
Cable tunnel
molded into
the frame
3
4
9
1
Rear brake hose
2
IsoStrut lockout cable housing
3
Dropper seatpost cable housing
4
Cable housing plugs — W600649
5
Cable exit plug — W5256254
6
Chainstay plug — W5259425
7
Cable exit grommet — W5255861
8
Chainstay plug — W600209
9
Foam housing sleeves — W528082
