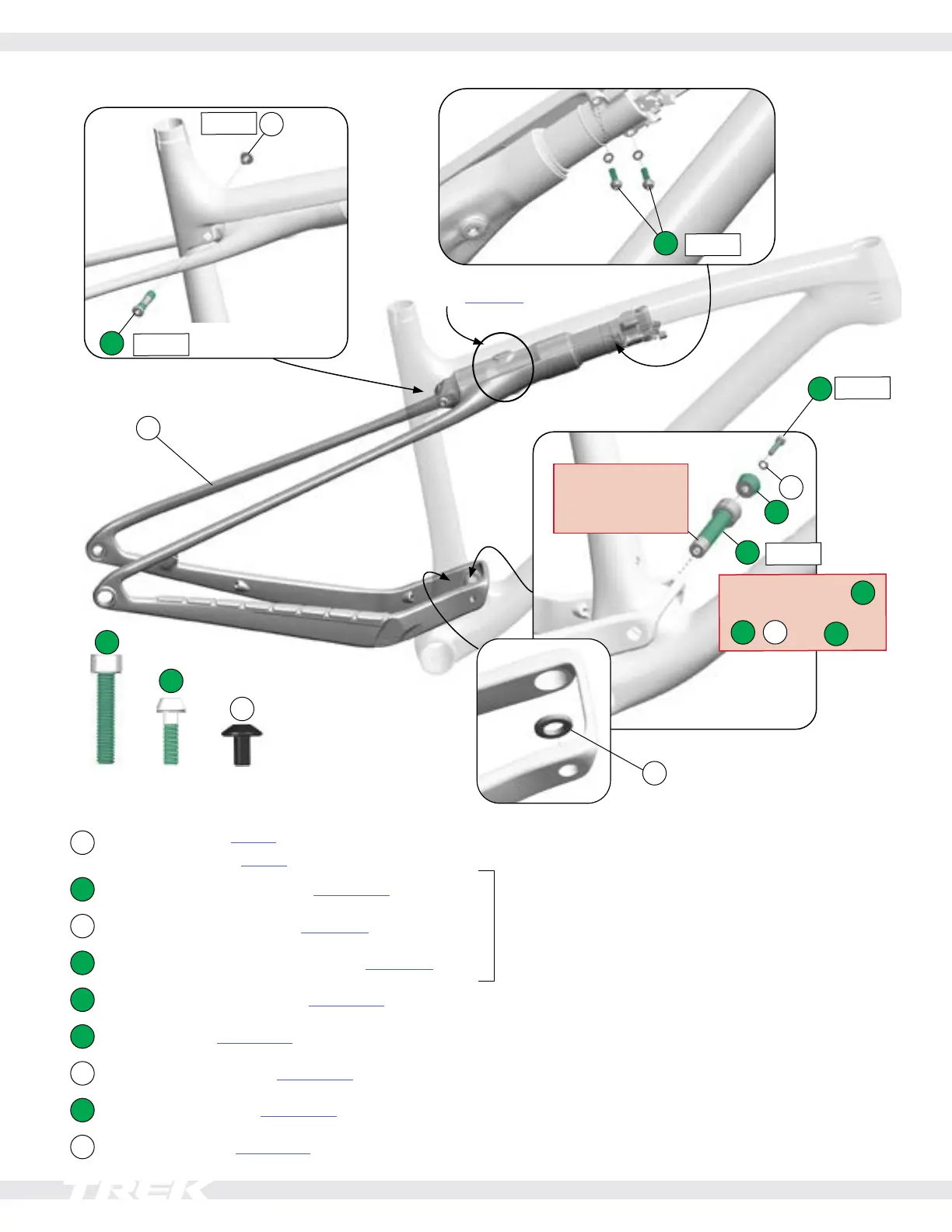

Trek SUPERCALIBER SL - Swingarm Components and Installation; Swingarm Assembly; IsoStrut Axle Bolt; Endcap Fastener

2024 Supercaliber
6
Swingarm
3
2
4
1
8
7
6
5
10Nm
10Nm
5Nm
7Nm
20Nm
Important: Torque
5
prior to installing
6
,
7
, and
8
.
See page 13.
M5x18
4
3
M6x12
9
Install between the main frame
and driveside of the swingarm.
Important: Do not
apply grease to the
threads.
8
M5x25
1
Swingarm SM — 45582
M-XL — 45583
2
IsoStrut axle bolt, M6x10mm — W5290780
— IsoStrut mounting fasteners
3
Endcap fastener, M6x1mm — W582252
4
Fasteners, M5x18mm, with washers, — W584485
5
Main pivot bolt, M15x71mm — W5306810
6
Wedge spacer — W5306811
7
Washer, 5.3mm x 1mm — W5309244
8
Fastener, M5x25mm — W5306809
9
Spacer, 15x26x4 — W5307573
