Trek SUPERCALIBER SL - Replacing Bushings and Seals; Tools for Seal Replacement; Tools for Bushing Replacement; Remove Carriage Wiper Seals

2024 Supercaliber
15
Replace bushings and carriage wiper seals
Tools for replacing the seals
• IsoStrut seal and bushing press tool set — 5317338
• Delrin rod, 1 inch (25.4mm)
• Headset press
• Maxima Suspension Plush Fluid 10wt oil — 600297
Tools for replacing the bushings
• Slide hammer
• 38 Expanding collet
• IsoStrut seal and bushing press tool set — 5317338
• Bushing sizer head — 5318880
• Bushing sizer handle — 5318944
• Clean, dry cloth
NOTICE: Inspect all tools prior to use to make sure they
are clean. Dirty tools could deposit grit into the shock
which could mar surfaces and create friction that could
damage the shock.

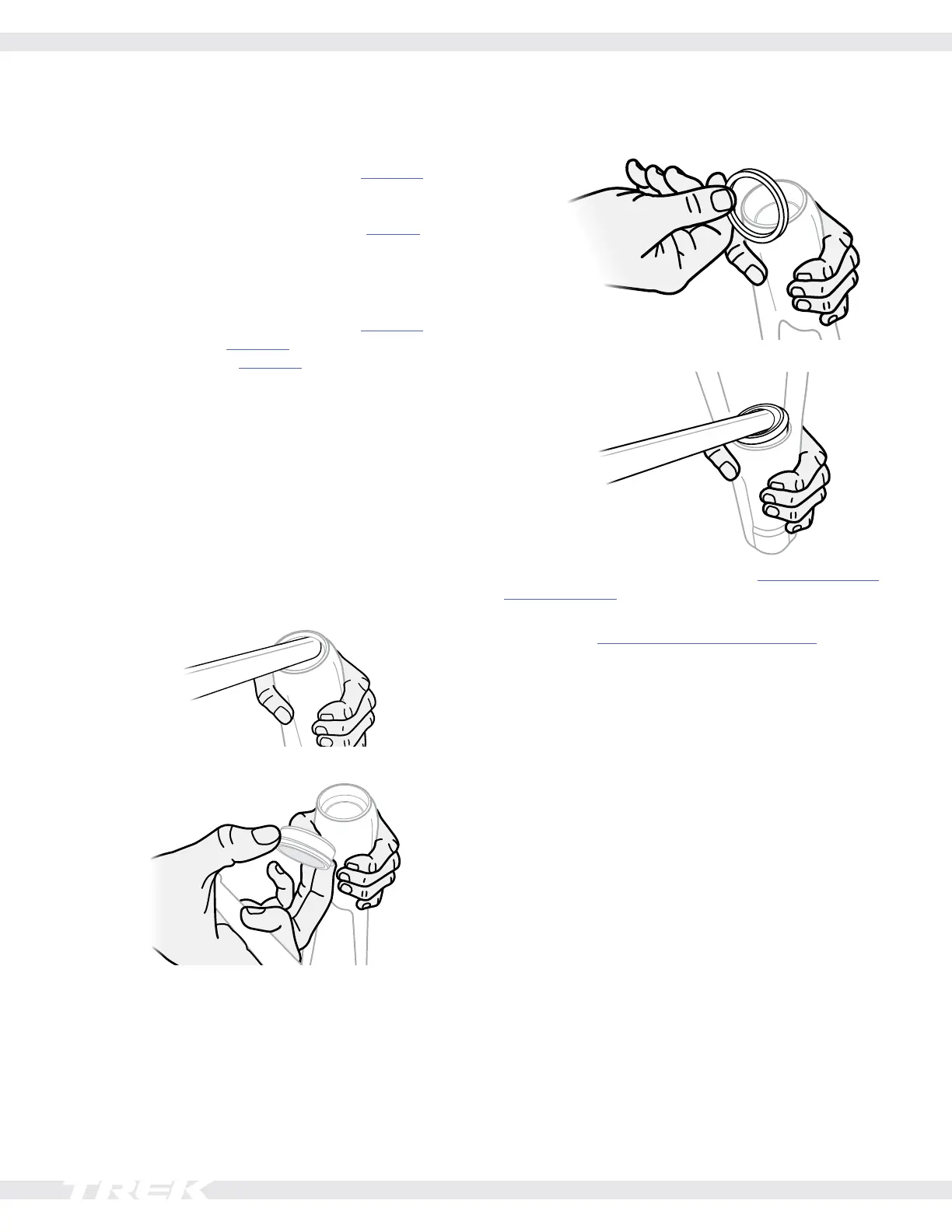

Remove the carriage wiper seals
1. Use the Delrin rod to pull out the front seal.
Tip: You may need to move the rod around the car-
riage to remove the seal.
2. Pull out the foam ring.
3. Use the Delrin rod to pull out the rear seal.
If you are replacing only the seals, see Replace the wiper
seals on page 18
If you are replacing both the seals and the bushings, con-
tinue with the Replace the bushings on page 16.
