2024 Supercaliber
18

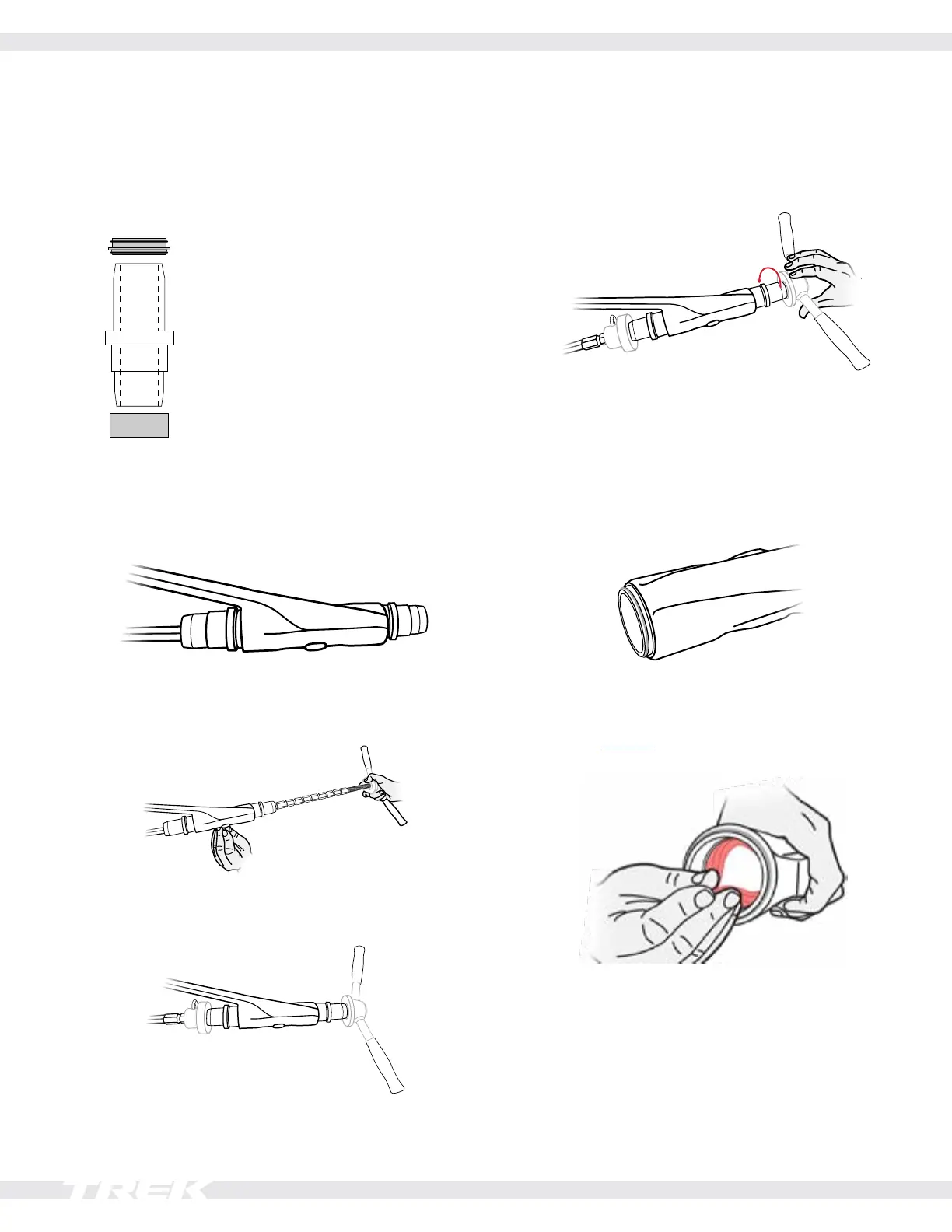

Replace the wiper seals
Notice: Take care to not scuff or scratch the bushings.
Scuffed or scratched bushing will need to be replaced.
1. Wipe the seal surface inside the carriage to remove
debris.
2. Load a new seal onto each seal installation tool.
Seal
Use this side of the tool for pressing in
seals.
Bushing
Use this side of the tool for pressing in
bushings.
3. Put one tool with one seal into the front of the car-
riage, and the other tool with the other seal into the
rear of the carriage.
4. Insert the upper half of the headset press into the
front of the carriage.
5. Insert the lower half of the headset press into the rear
end of the carriage and lock it into place.
6. Spin the headset press until it is snug against the seal
tool. Check for correct alignment of the press, tools,
and seals. Rotate the press to push the seals into
place.
7. Tighten the press until you feel resistance. Press the
wiper seals for approximately 30 seconds. Remove the
press and both tools.
8. Inspect the seals to verify there is no gap between the
seal and the carriage.
9. Soak the foam ring in Maxima Suspension Plush Fluid
10wt oil — 600297.
10. Install the foam ring into the front of the carriage.
