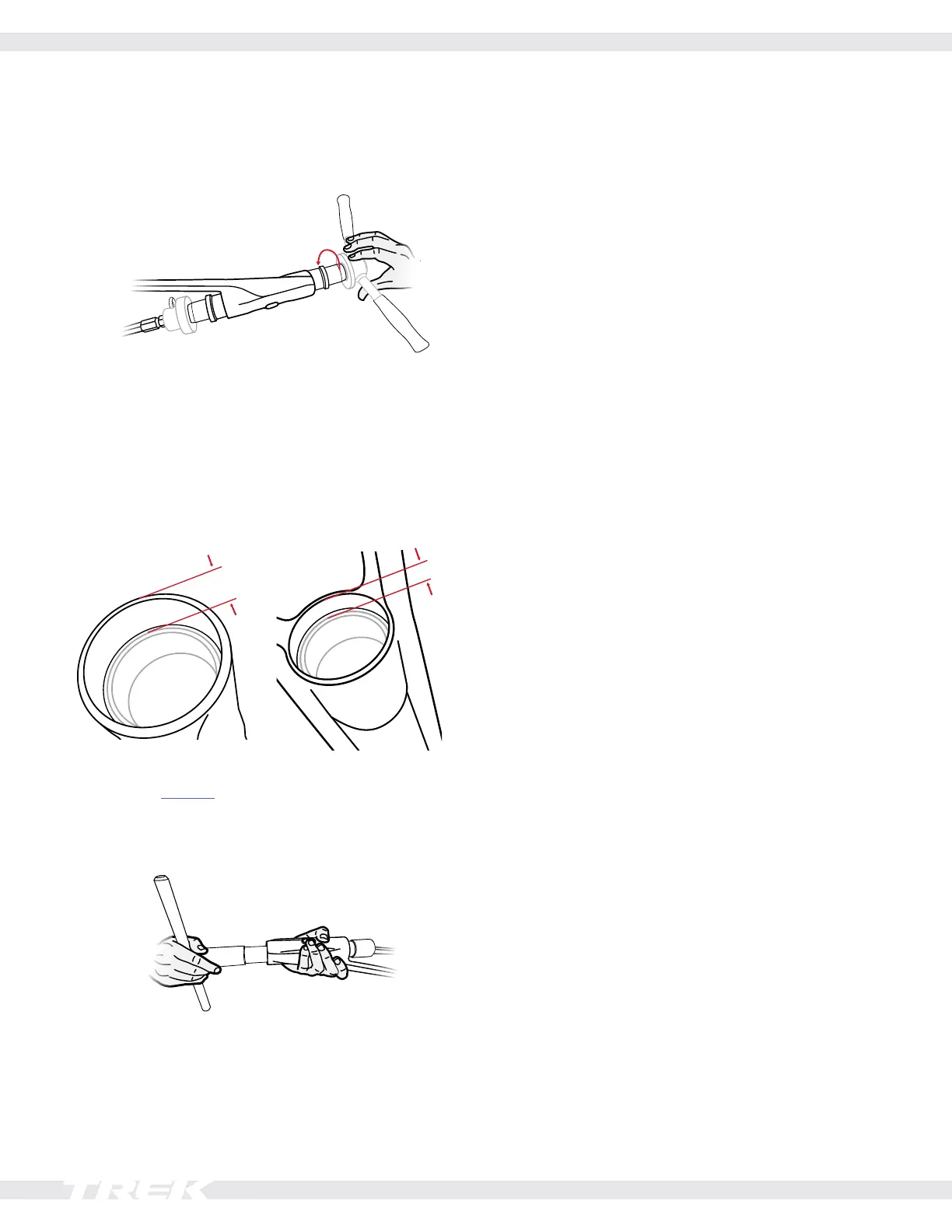

10. Spin the headset press until it is snug against the
bushing tool. Check for correct alignment of the press,
tools, and bushings. Rotate the press to push the
bushings into place. It’s normal to have different gaps
at the front and rear of the carriage.
11. Tighten the press until you feel resistance. Once you
feel resistance, remove the press and tools.
12. Inspect the bushings to verify they are pressed deep
enough into the carriage. From the top of the bushing
to the step above the bushing, the measurements
should be:
Front = 16.5mm Rear = 10mm
13. Apply a light coat of Maxima Suspension Plush Fluid
10wt oil — 600297
14. From the front of the carriage, use the bushing sizer to
size the bushings to 38.01 - 38.07mm. The sizer can
be rotated to the left or to the right.
15. Repeat step 14 one to four times, alternating between
the front and rear bushings.
