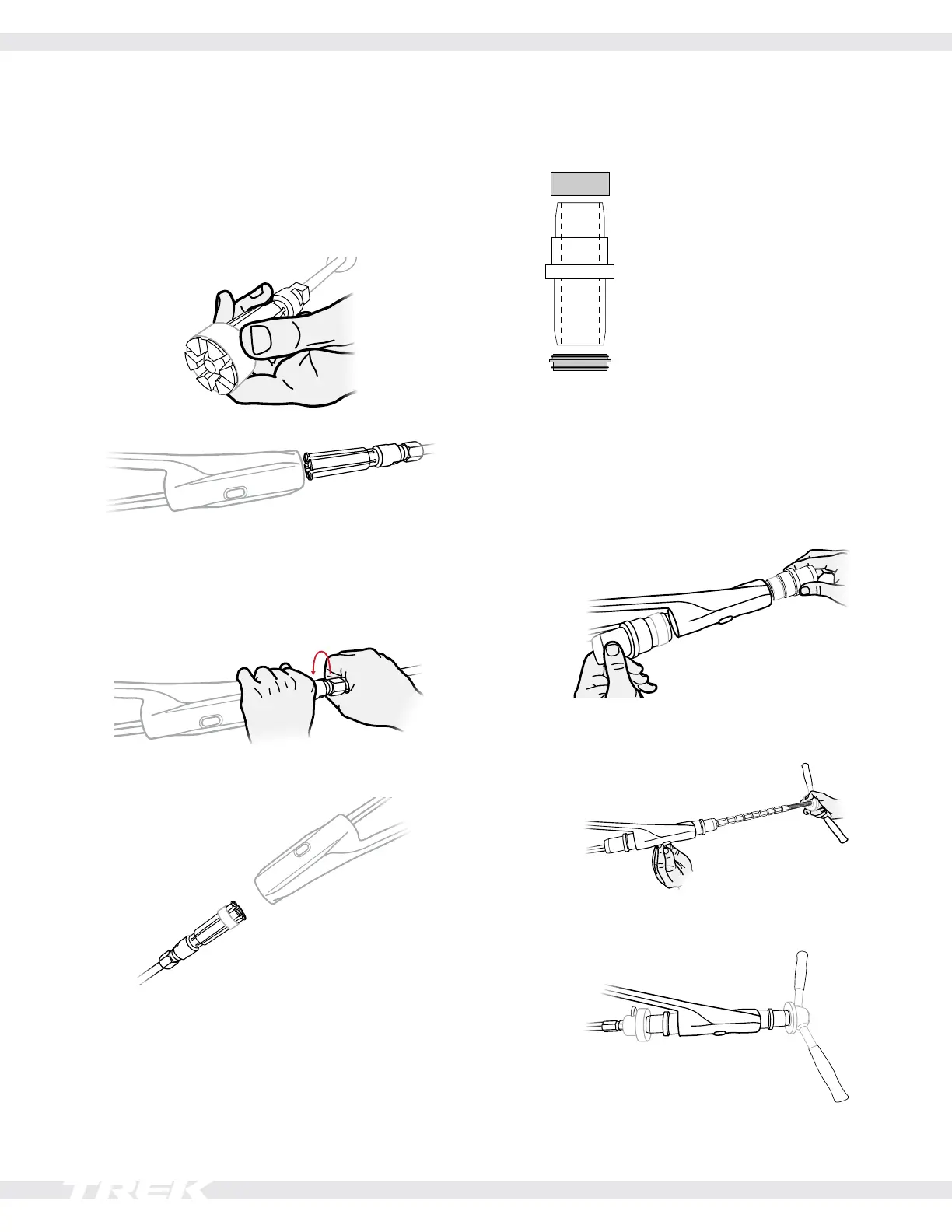

Replace the bushings
Notice: Do not apply grease to the bushings.
1. Put the slide hammer with the collet attached inside
the front end of the carriage.
Notice: Take care to engage only the bushing, and
NOT the interior of the carriage. Engaging the car-
riage could damage the carriage.
2. Thread the collet to engage the bushing lip.
Tip: Be careful not to engage the lip inside the car-
riage. Engage the bushing only.
3. Use the slide hammer to remove the bushing.
4. Repeat steps 1–3 to remove the rear bushing.
5. Wipe the bushing bores with a clean, dry cloth to
remove any debris.
6. Load a new bushing onto each bushing installation
tool.
Bushing
Use this side of the tool for pressing in
bushings.
Seal
Use this side of the tool for pressing in
seals.
Notice: Do not use grease when installing the bush-
ings. Using grease could cause the bushings to slip
out of place.
7. Put one tool with one bushing into the front of the
carriage, and the other tool with the other bushing into
the rear of the carriage.
8. Insert the upper half of the headset press into the
front of the carriage.
9. Insert the lower half of the headset press into the rear
end of the carriage and lock it into place.
