Trekmaster TM57409 - Set Up Instructions - Tent; Initial Tent Erection Steps

1
2
8
7
5
15
15
4
LOUNGE ROOM
Rear
Left
Left
Right
Front
BEDROOM
10
11
10
15
15
15
15
15
12
12
14
14
13
10
4
AWNING
3
6
6
6
5
7
5
Right
6

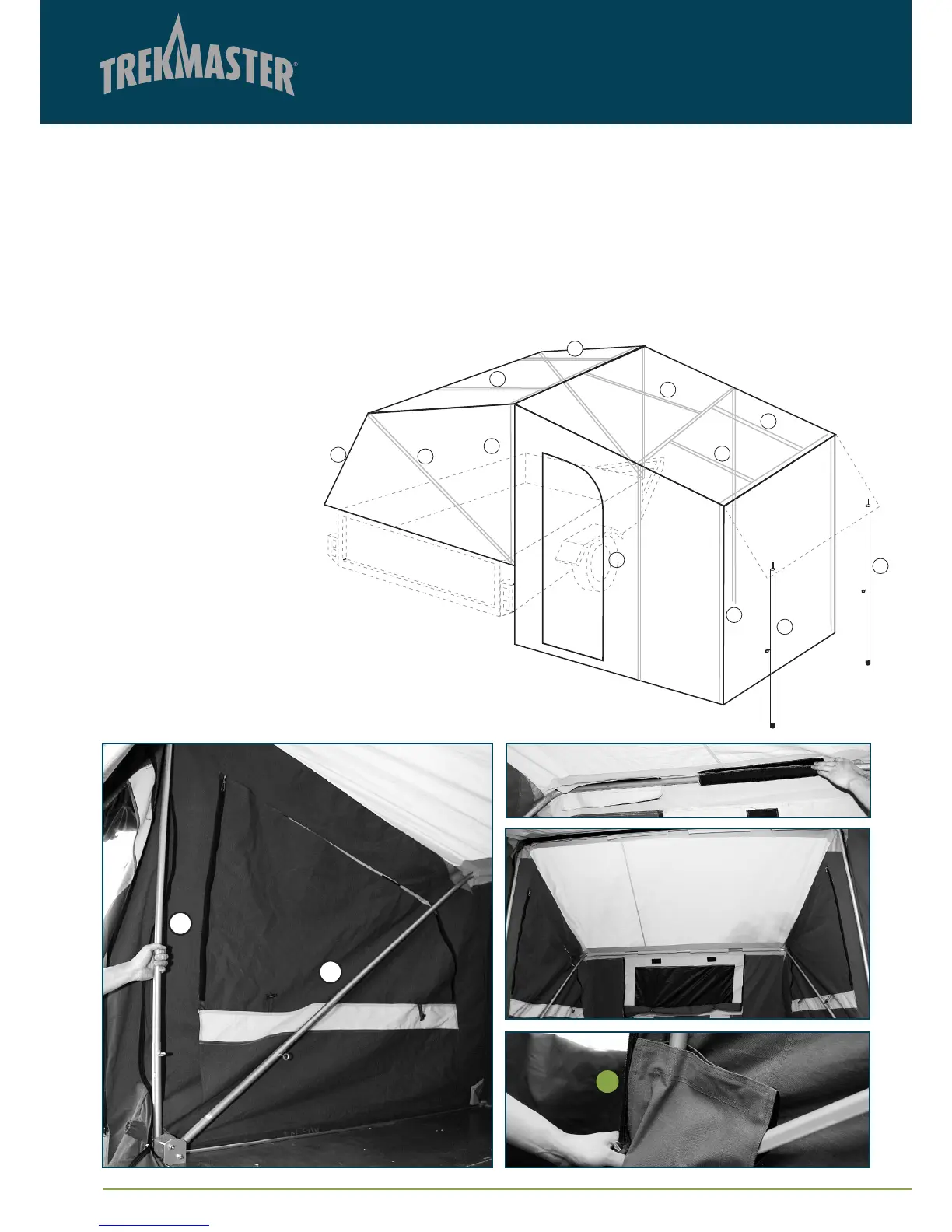

SET UP INSTRUCTIONS - TENT
STEP 1
• Select a suitable location to erect your camper trailer, ensure that the surface is solid and as level as possible.
STEP 2
• Release D ring on travel cover and un-zip.
STEP 3
• Remove protective travel cover and store away.
STEP 4 - Tent
• Fold out tent and enter through
D door - locate Pole (2).
• Raise Pole (2) into upright
centre position and fasten to
inner edge of tent wall at roof
using hook and loop tabs.
• Raise Pole (1) into position
at top of bedroom wall
and fasten using hook
and loop tabs.
Note: To avoid injury while
raising and adjusting poles,
always tighten tee nuts to ensure
poles are held together in position.
Cover each
side of the brackets with canvas
Pockets (A) supplied.
A
1
2
