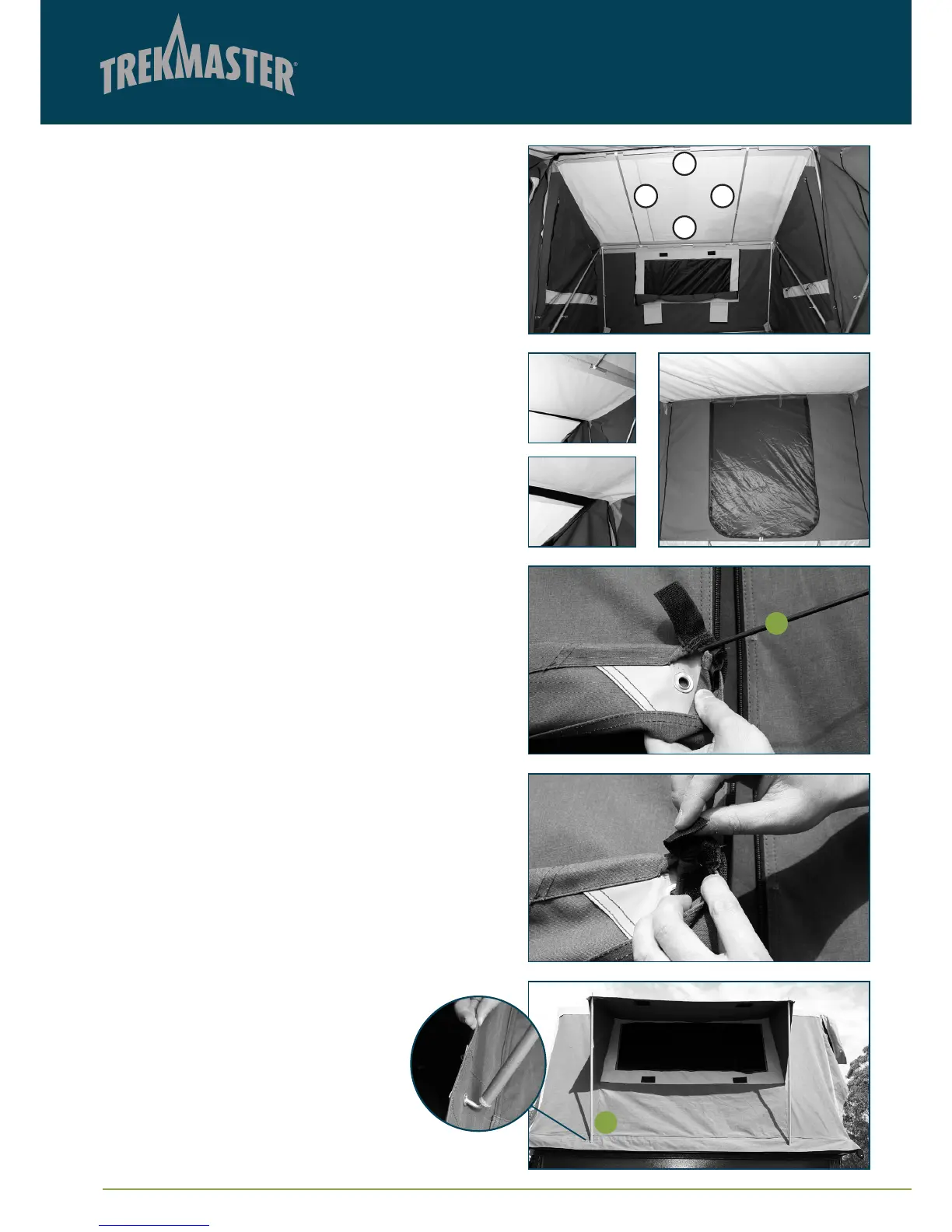

STEP 10

• Attach bedroom roof Tension Bar (7) to Poles (1) & (2) using

‘C’ clip ends.

• Ensure tee nut is facing downwards - adjust tension bar.

STEP 11

• Extend all pre-tied guy ropes away from the tent using

Pegs (D).

• Tension guy ropes as required.

STEP 12

• To attach bedroom / lounge room divider, use zippers

located at both sides of bedroom outer wall.

• Fasten top edge of room divider at roof using hook and loop

tabs located along Pole (2).

• Attach the lounge room divider to Pole (3) using ‘C’ clips.

STEP 13 – Bedroom Window

• Insert Fibreglass Poles (C) into each seam edge of bedroom

window cover.

• Secure ends with attached hook and loop tabs.

• Insert straight pin end of Bedroom Window Pole (B) into

corner eyelet of bedroom window cover.

• Insert other end with ‘l’ shaped pin into eyelet at tent wall.

• Repeat procedure for both sides.

Step 12

Step 13

Step 10
