12

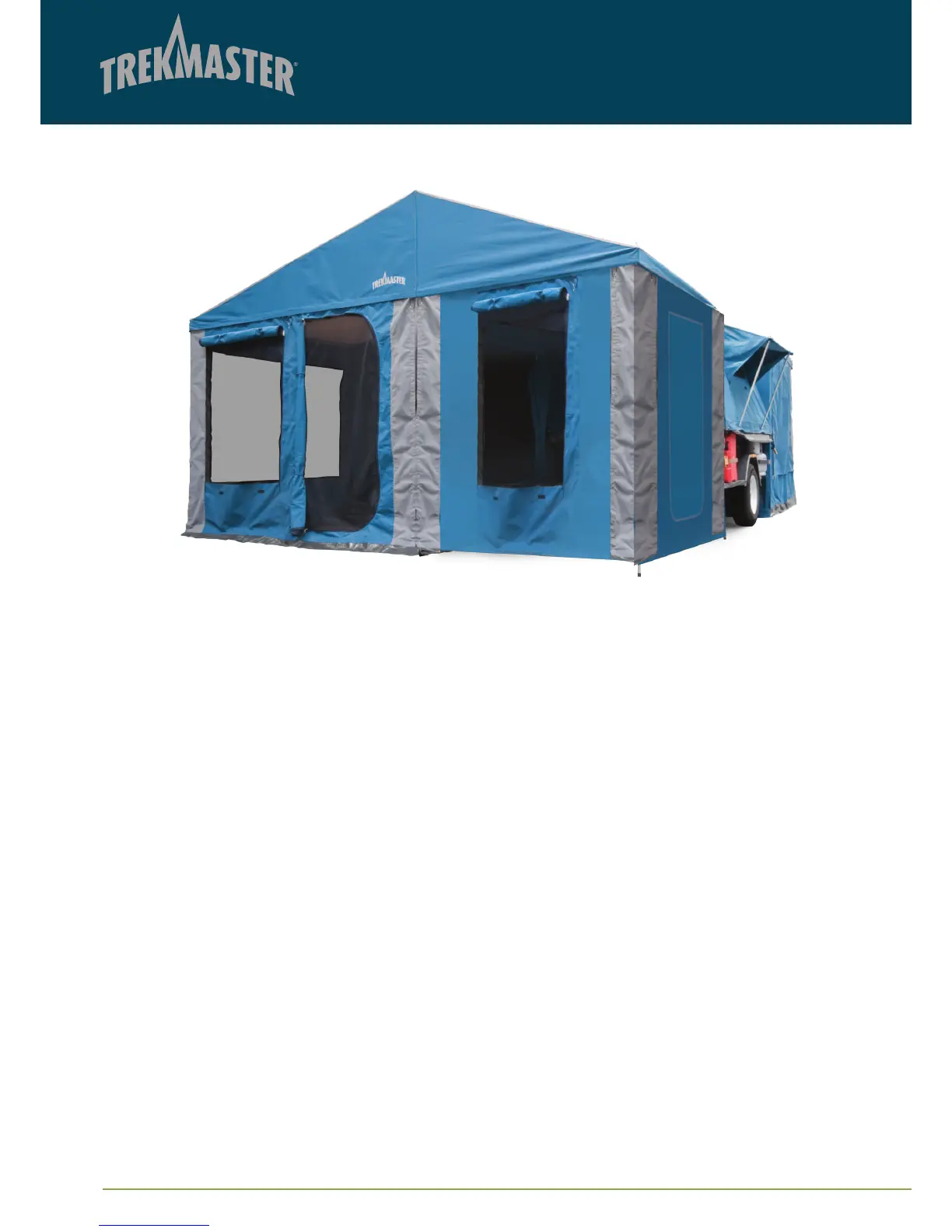

OPTIONAL SPARE ROOM – SOLD SEPARATELY
Roof, wall and floor kit
Part No.: TM57456
SPARE ROOM ROOF
STEP 1
• Attach the Spare Room roof to the tent using zipper, then pull roof over the top of the tent.
STEP 2
• Insert ‘L’ shaped pin of Roof Pole (10) through the tent eyelet at left hand corner into hole located on the end of Pole (4).
• Ensure Pole (10) tee nuts are facing downwards
STEP 3
• Insert straight pin of Awning Pole (15) into hole at other end of Pole (10) and join with end of Pole (12)
• Ensure Pole (12) tee nuts are facing downwards
• Adjust Pole (15) in the upright position using the tee nuts.
STEP 4
• Insert ‘L’ shaped pin of second Roof Pole (10) through the tent eyelet into hole located on the end of Pole (2)
• Ensure Pole (10) tee nuts are facing downwards
STEP 5
• At centre front of spare room, insert straight pin of Awning Pole (14) into hole at end of Pole (12) & (10) and join with end of
Pole (13).
• Ensure Pole (13) tee nuts are facing downwards.
• Adjust Pole (14) in the upright position using the tee nuts.
STEP 6
• At other end of Pole (13), insert straight pin of second Awning Pole (15) then join to hole at end of Pole (10).
• Ensure Pole (10) tee nuts are facing downwards.
• Adjust Pole (15) in the upright position using the tee nuts.
