TREND T4 - Cutter Installation and Removal

-9-
How to Fit and Remove a Router
Cutter

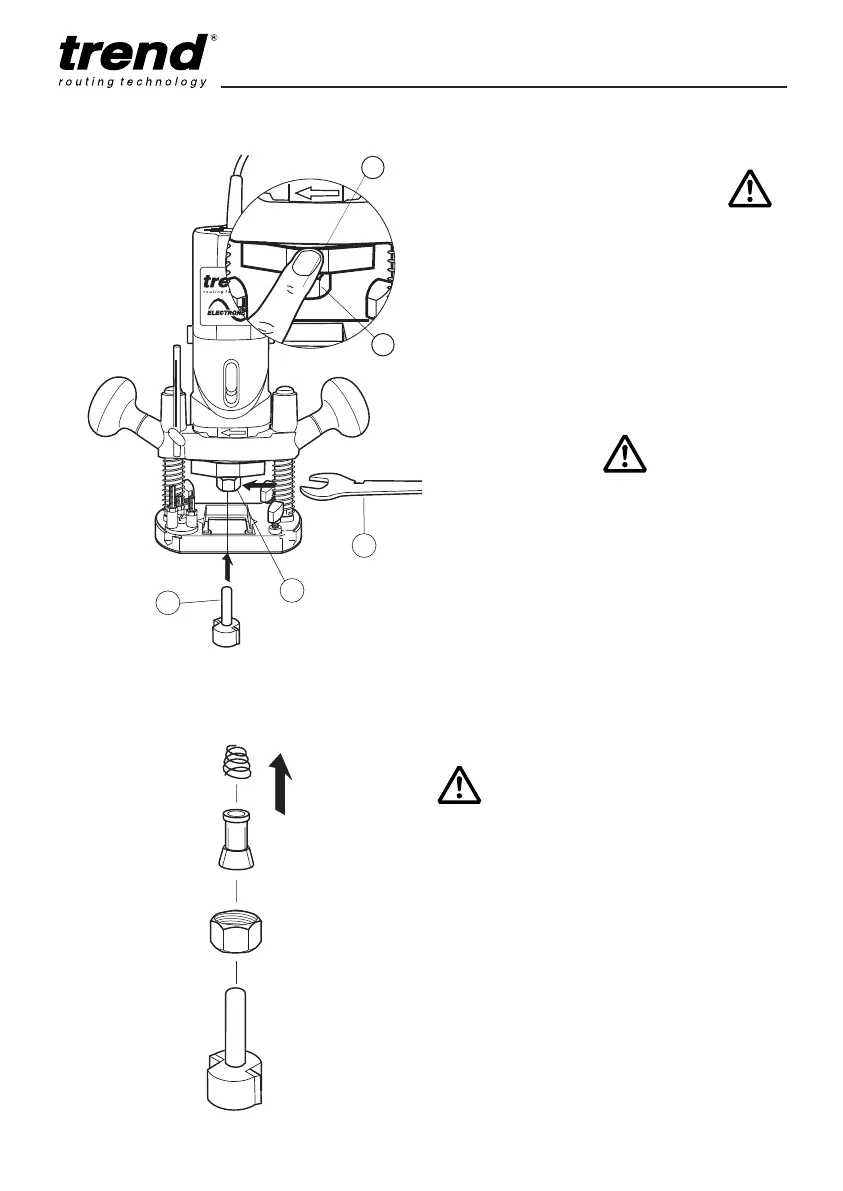

Fitting Cutters
■ Insert at least
3
/4 of the shank length of the
cutter (1) into the collet assembly (2).
■ Press the spindle lock (2) until the router
spindle is locked (you may need to turn the
spindle slightly to engage it).
■ Tighten the collet nut with the 17mm A/F
spanner (3). Do not use excessive force.
Removing Cutters
■ Press the spindle lock (2) until the router
spindle is locked (you may need to turn the
spindle slightly to engage it).
■ Undo the collet nut with the 17mm A/F
spanner.
■ The cutter should now slide out.
■ Each time you finish using a cutter, remove it
and store it in a safe place.
■ A collet spring is fitted into the spindle behind
the collet to allow for easy collet change.
Correct Sequence for Fitting Collet,
Nut, Collet Spring and Cutter
T4
Do not tighten the collet without a
cutter fitted.
Always use cutters with shanks which
match the diameter of the collet.
Do not use cutters larger than 30mm in
diameter.
.
1
3
2
.
1
2
