WEP Key: Select the level of encryption from the drop-down list. The WLAN
Router supports, 64 and 128-bit encryption.
Key 1 ~ Key 4: Enables users to create up to 4 different WEP keys. Manually
enter a set of values for each key. Select a key to use by clicking the radio button
next to the key.
WPA/WPA2/WPA-Auto Security

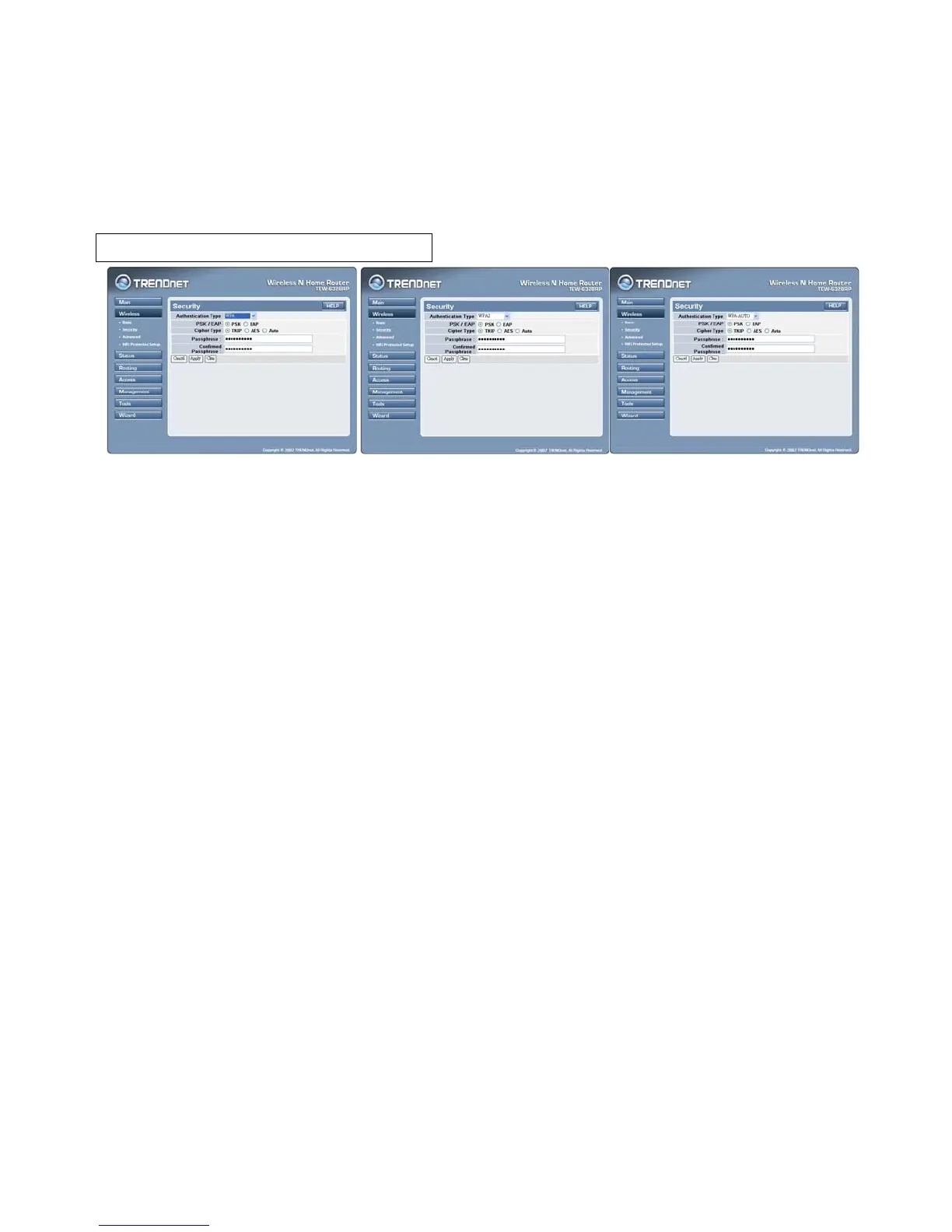

If WPA, WPA2 or WPA-Auto EAP is selected, the above screen is shown. Please
set the length of the encryption key and the parameters for the RADIUS server.
Cipher Type: Select the cipher type for TKIP or AES encryption, Selected Auto
for auto detects the cipher type.
RASIUS Server:
1. Enter the IP address, Port used and Shared Secret by the Primary Radius
Server.
2. Enter the IP address, Port used and Shared Secret by the Secondary Radius
Server. (optional)
