Routing
This selection enables users to set how the WLAN Router forwards data: Static and
Dynamic. Routing Table enables users to view the information created by the
WLAN Router that displays the network interconnection topology.

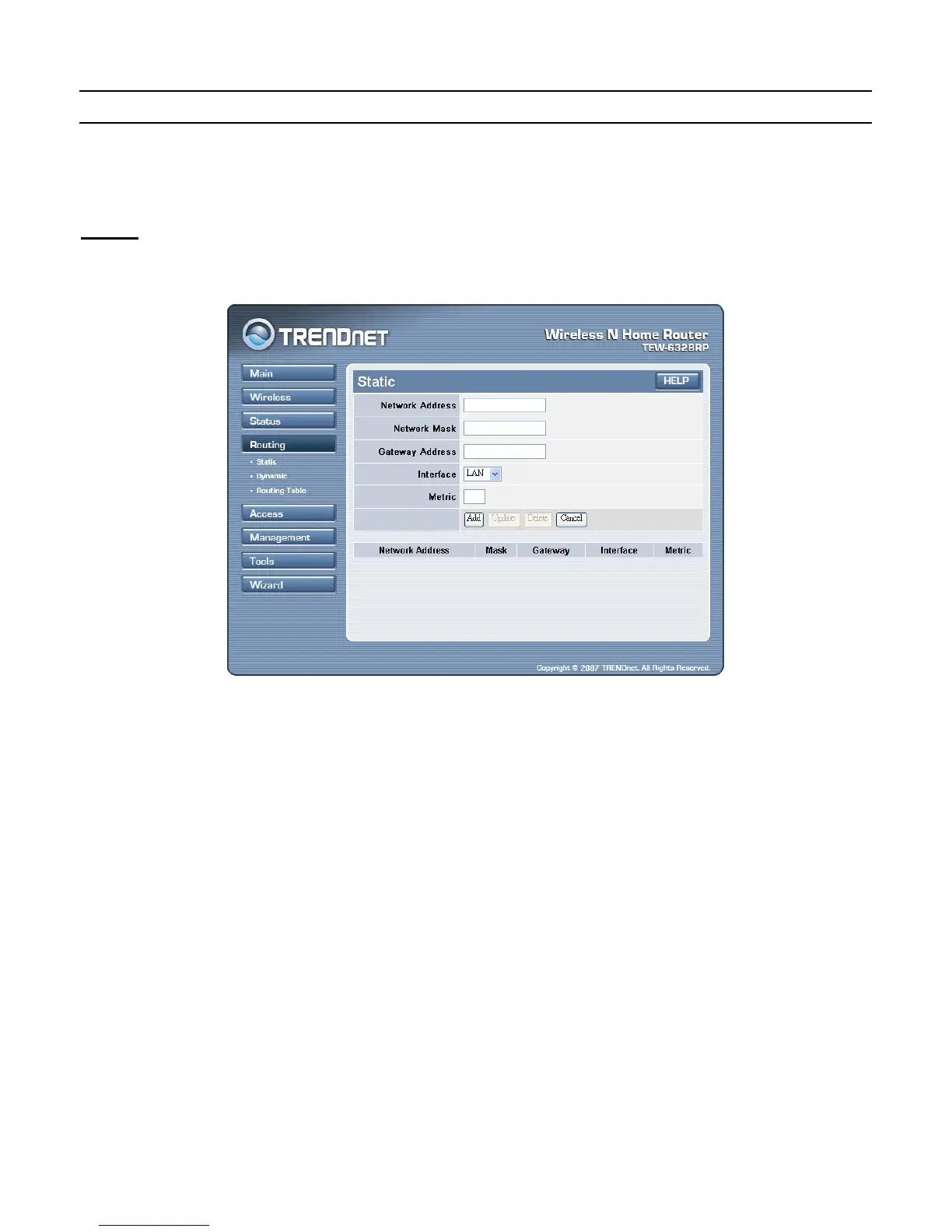

Static
It enables users to set parameters by which the WLAN Router forwards data to its
destination if the network has a static IP address.
Network Address: Type the static IP address the network uses to access the
Internet. Contact the ISP or network administrator for this information.
Network Mask: Type the network (subnet) mask of the network. If this field is left
blank, the network mask defaults to 255.255.255.0. Contact the ISP or network
administrator for this information.
Gateway Address: Type the gateway address of the network. Contact the ISP or
network administrator for this information.
Interface: Select an interface, WAN or LAN, to connect to the Internet.
Metric: Select which metric that the user wants to apply to this configuration.
Add: Click to add the configuration to the static IP address table at the bottom of
the page.
Update: Select one of the entries in the static IP address table at the bottom of the
page, and after changing parameters, click “Update” to confirm the changes.
Delete: Select one of the entries in the static IP address table at the bottom of the
page and click “Delete” to remove the entry.
