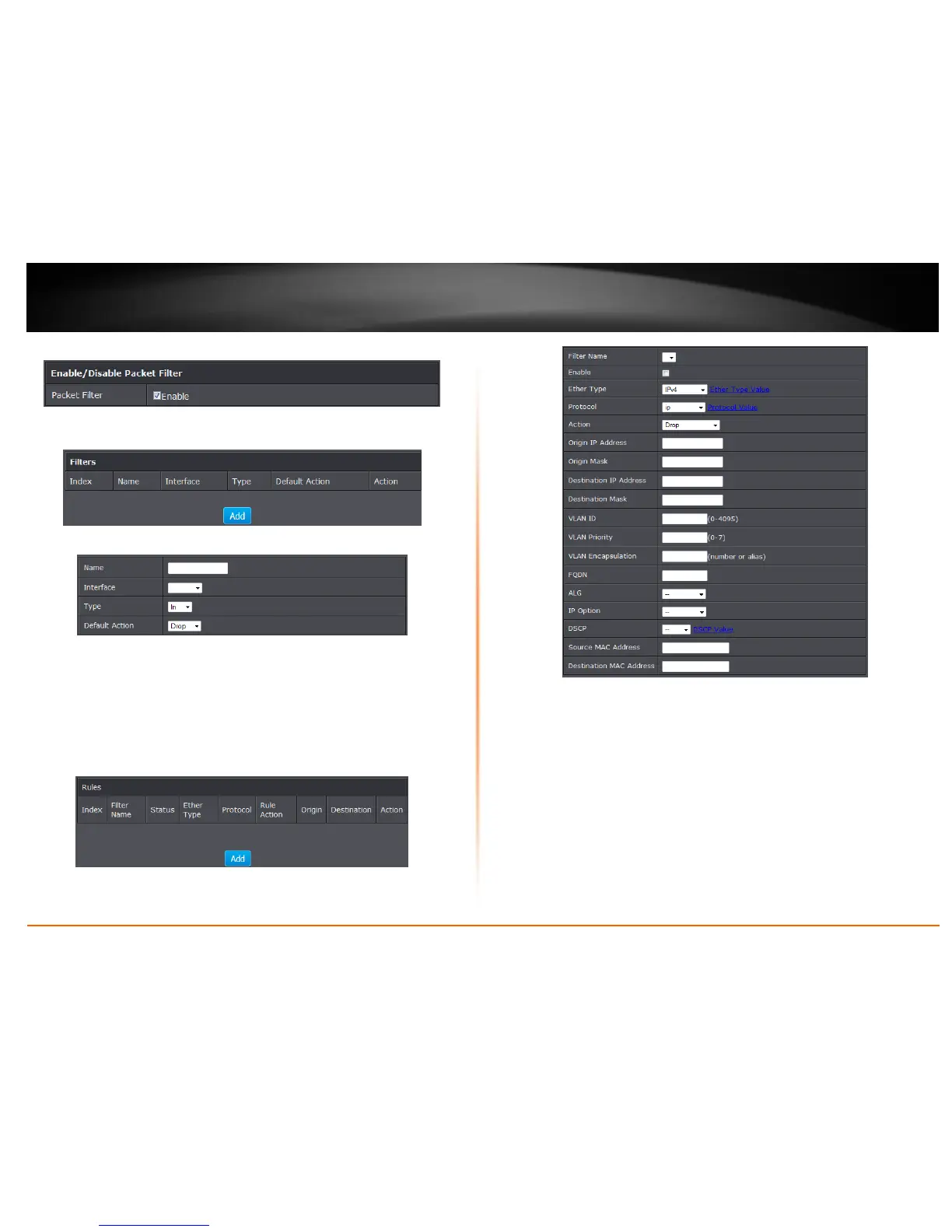

3. Under Packet Filter section select Enable and click Apply.
Filter

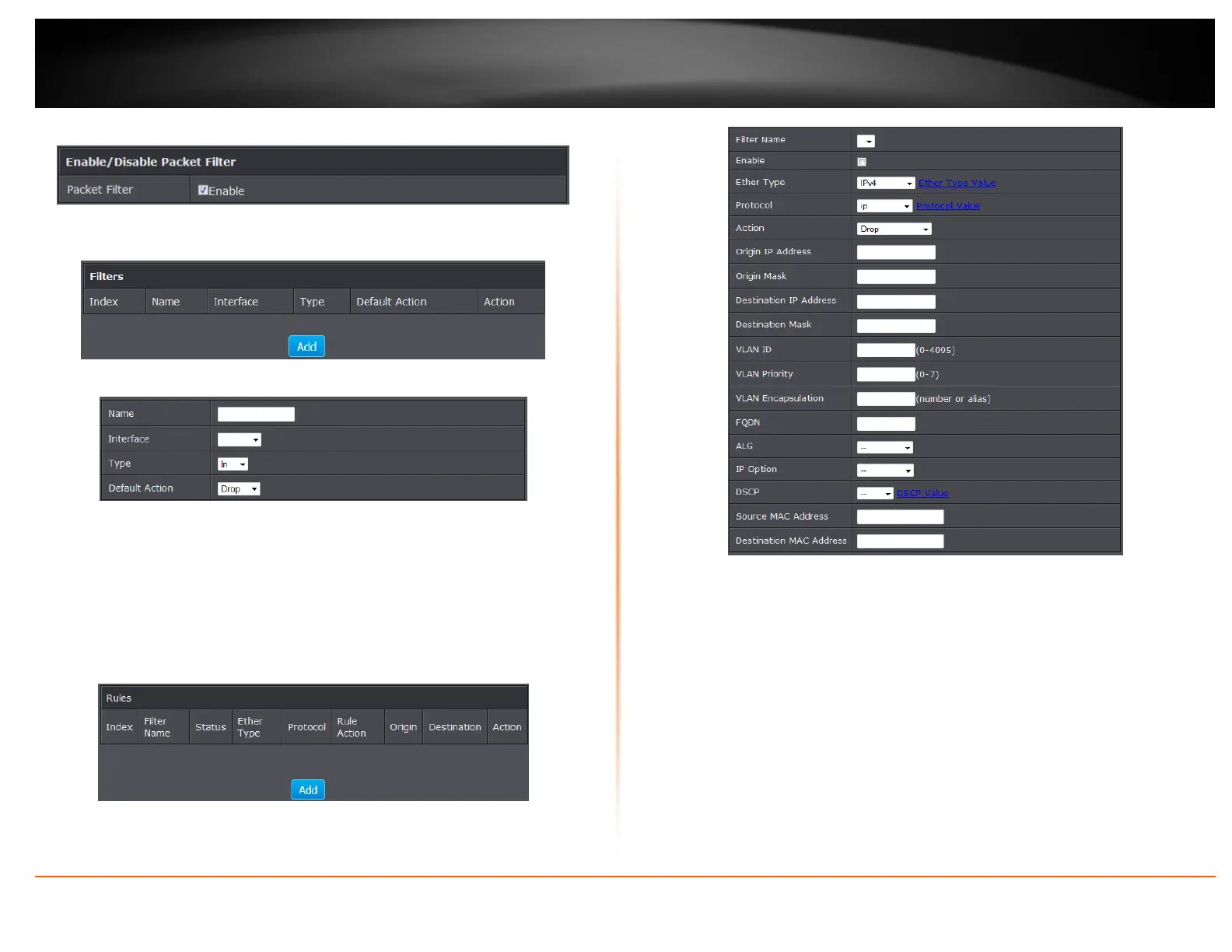

1. To create a new filter rule. Click Add in the Filters section.
2. Review the settings and click Apply to save.
 Name: Enter the name of the filter.
 Interface:
 Type: Select the type of packets to filter. In for incoming packets and Out to filter
outgoing packets Select the interface used for the filter..
 Default Action: Select to drop or allow the packets.
Rules
1. To create a new rule. Click Add in the Rules section.
2. Review the settings and click Apply to save.
 Filter Name: Select the filter name to apply the rule. Enter the name of the filter.
 Enable: Check to enable rule
 Ether Type: Select the ether type to apply on the rule.
 Protocol: Select the protocol type to apply on the rule.
 Action: Select the action to take on the rule
 Origin/Destination IP: Enter the IP address of the packets origin and destination
 Origin/Destination Mask: Enter the Subnet mask of the packets origin and
destination.
 VLAN ID: Enter the VLAN ID to apply on the rule
 VLAN Priority: Enter the VLAN priority of the packets
 VLAN Encapsulation: Enter the encapsulation type
 FQDN: Enter the domain name
 ALG: Select the ALG type
 IP Option: Select IP option type
