TRENDnet User’s Guide
TEW-721BRM
4

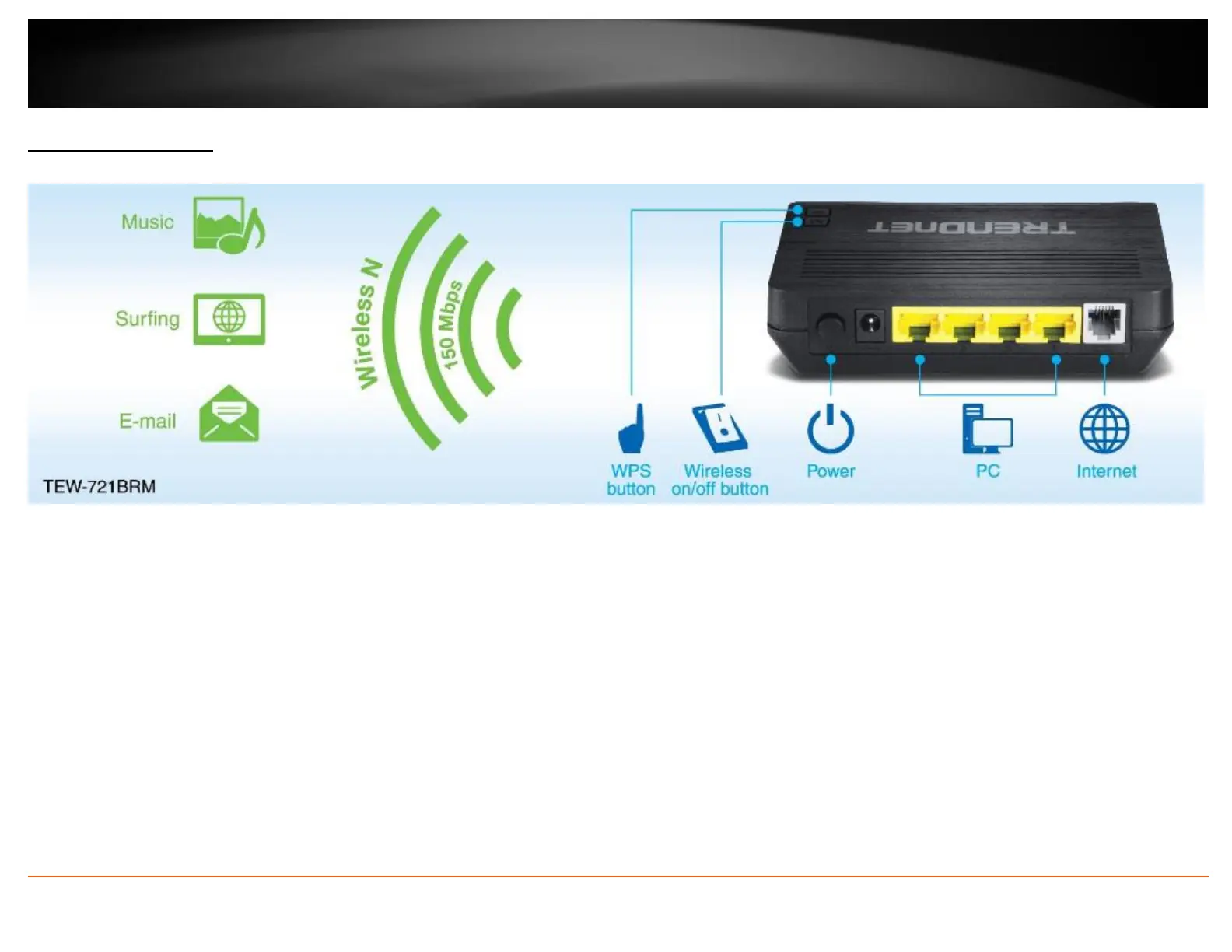

Application Diagram
The router is installed near the wall telephone jack/DSL line (DSL service supplied by your ISP “Internet Service Provider”) which connects to the Internet. Wireless signals from the router
are broadcasted to wireless clients such as laptops (with wireless capability) thereby providing Internet access.
