TRI tool 301SP - 5. MAINTENANCE; ALL MODELS; 301 SP with an Air Motor

Model 301SP Tube Squaring Machine
92-0579 Rev. 190612 9
5. MAINTENANCE
ALL MODELS
• Clean all components, refer to Fig 2.
• Coatallcomponentswithalightlmofoilbeforeuse.Useaclean,non-
detergent oil, preferably SAE 10 (90SSU) or lighter.
• If the Model 301SP is operated in the vertical position (Cutting Head up), turn
it upside down and remove the chips and all debris after each cut. The tool
life may be severely shortened, if chips and/or other debris are not removed.
• Disassembly of the Model 301SP will void the warranty, except when
performed by TRI TOOL Inc. designated repair technician.
301SP with an Air Motor
Includeanadequatelter,regulatorandlubricator(FRL),fortheairsupply.The
Air Motor warranty is void if damage occurs from contaminated air or lack of
lubrication.

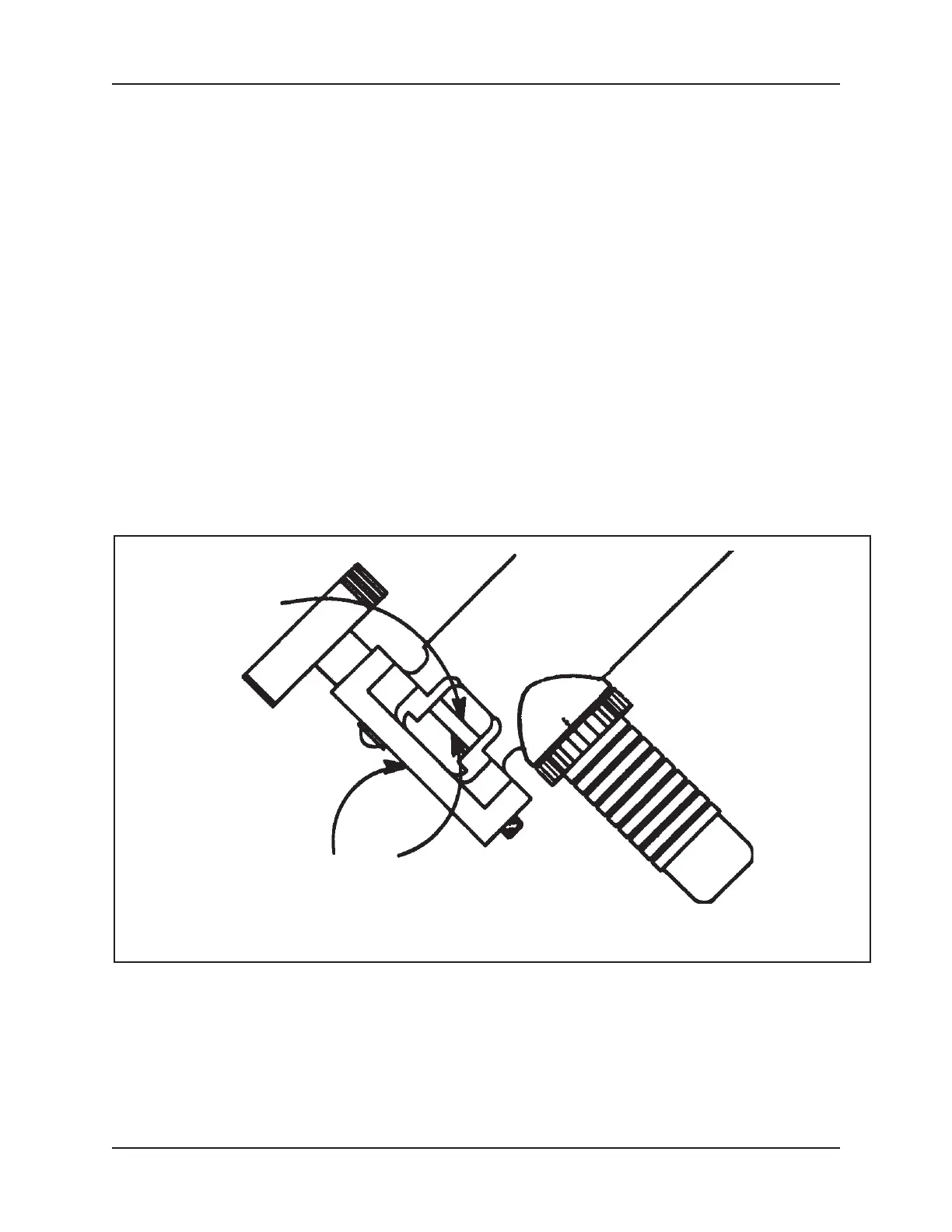

Figure: 2. Model 301SP Sites to Clean
