TRI tool 301SP - Page 19

Model 301SP Tube Squaring Machine
92-0579 Rev. 190612 17

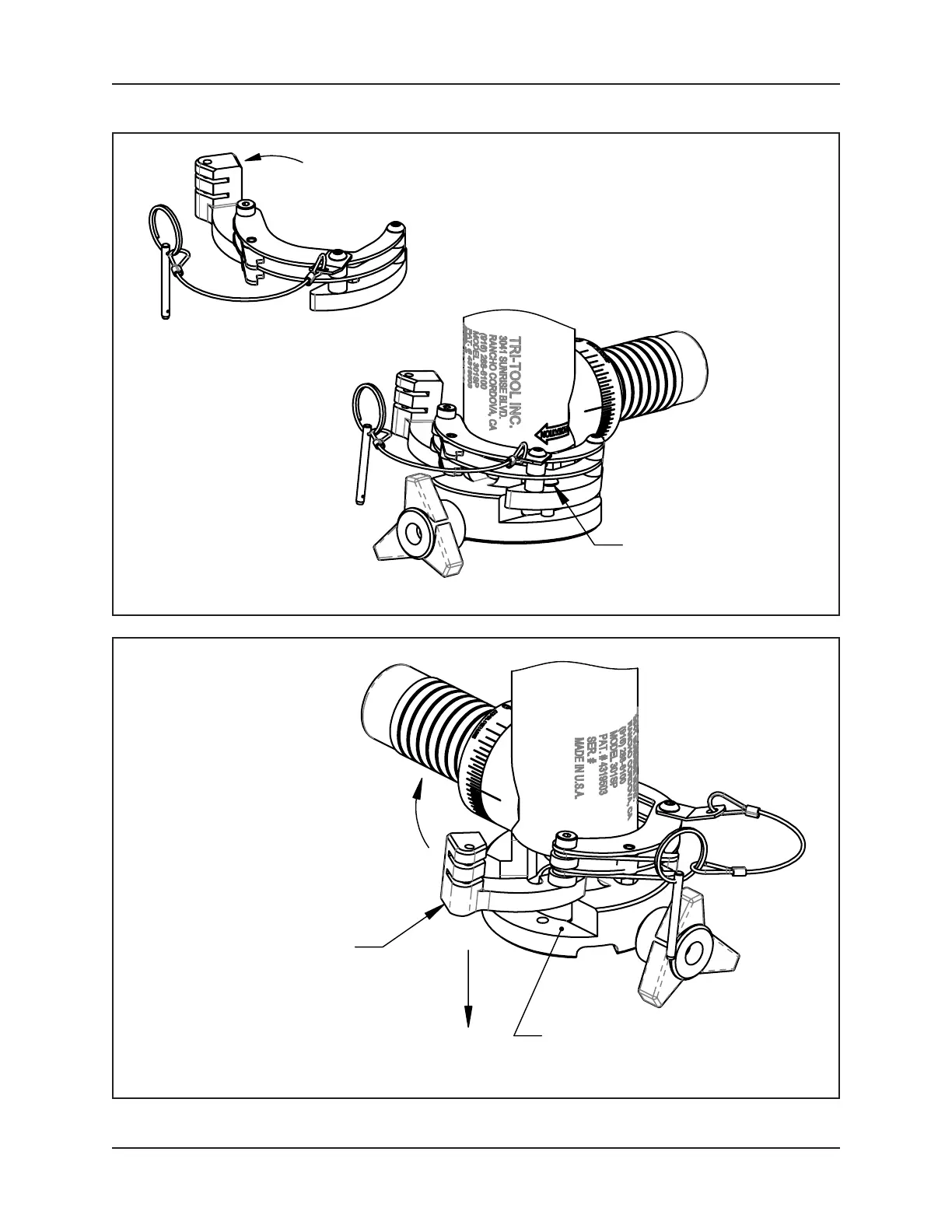

OPEN CHIP GUARD
AS SHOWN
ANGLE CHIP GUARD
AND ALIGN SLOT WITH
BUTTON HEAD SCREW
ROTATE CHIP GUARD
INWARDS AND DOWN
CHIP GUARD WILL REST
FLAT ON THIS SURFACE
