TRI tool 301SP - Page 40

TRI TOOL INC.
92-0579 Rev. 190612
38

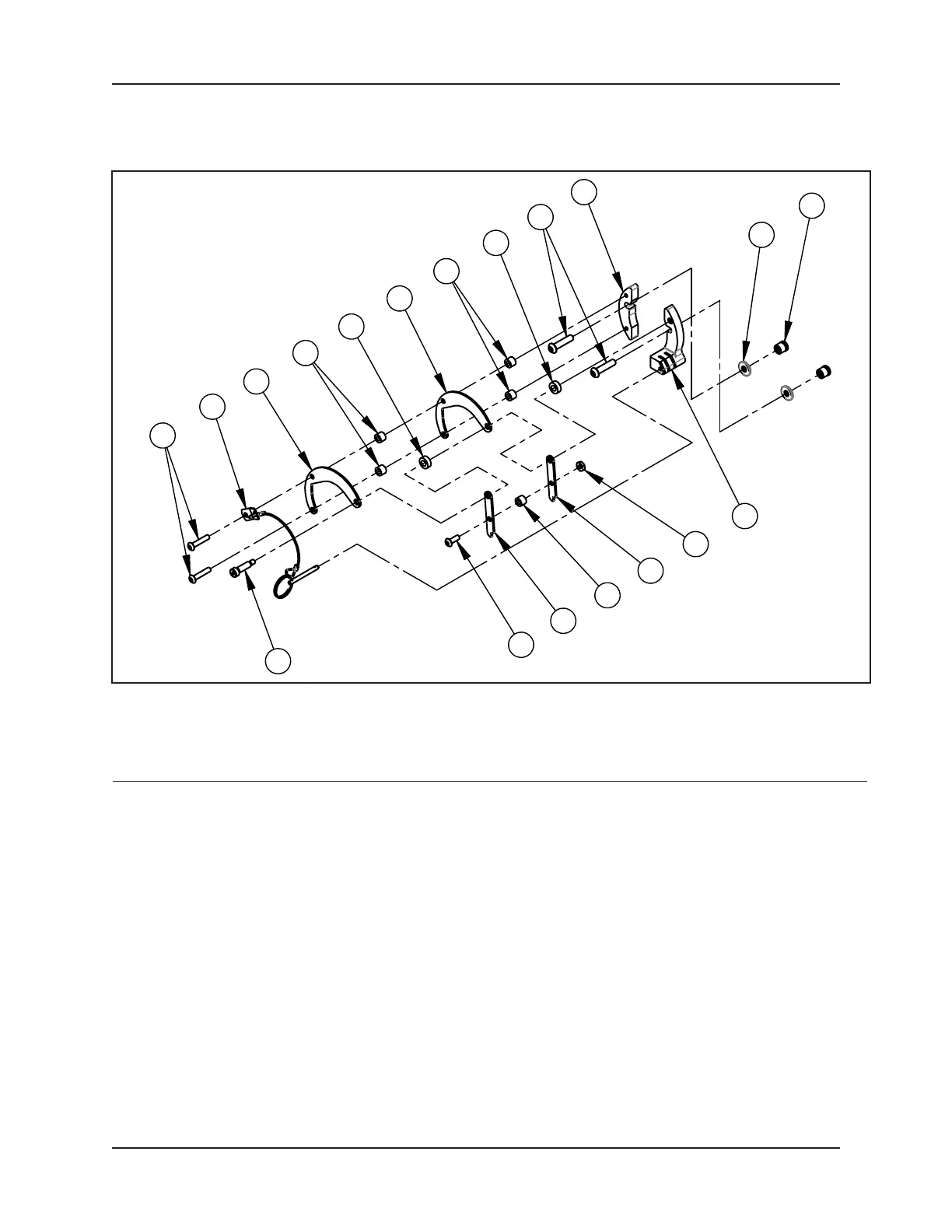

CHIP GUARD KIT, 301SP (P/N 05-1431)
7
10
5
1
9
2
4
12
2
11
3
6
4
1
4
6
13
8
14
Parts List, Chip Guard Kit, 301SP (P/N 05-1431)
Item Part Description Qty
No. No.
1. 24-4554 PLATE, CHIP GUARD 2
2. 24-4555 PLATE, DOOR, CHIP GUARD 2
3.  30-6428  INSERTNUT,1/4-20    2
4.  30-6429  SPACER,3/8"O.D.X3/16"I.D.X9/32"  5
5. 30-6455 PIN, QUICK RELEASE W / LANYARD 1
6. 30-6456 SPACER, 1/2" X 3/16" X .252" I.D. 2
7.  33-0316  SCREW,BUTTON,#10-32X1"   2
8.  33-4131  SCREW,BUTTON,1/4-20X11/8"  2
9.  33-4401  SCREW,BUTTON,#10-32X9/16"  1
10. 33-4402 SCREW, SHOULDER, MOD. 1
11. 34-0304 WASHER, .265" I.D. X .750" O.D. X .090" THK. 2
12.  35-0013  NUT,HEX,#10-32    1
13.  48-4058  BLOCK,CHIPGUARD    1
14.  48-4119  BLOCK,HINGE,CHIPGUARD   1
