Trianco Contractor H.E. 50/90 EXTERNAL - SERVICING (Continued); SERVICING THE BOILER STEPS; BAFFLE ARRANGEMENTS

19
Condensate Unit & Trap
The condensate unit and trap should be inspected
as part of the annual service schedule. Remove the
access cover from the top of the condensate unit
and clean all deposits from within. Ensure there are
no blockages within the condensate pipework and
the ‘U’ trap itself.
When complete, recheck the integrity of the
pipework joints by pouring a small amount of water
into the condensate unit and looking for leaks.
Some water should be retained within the ‘U’ trap.

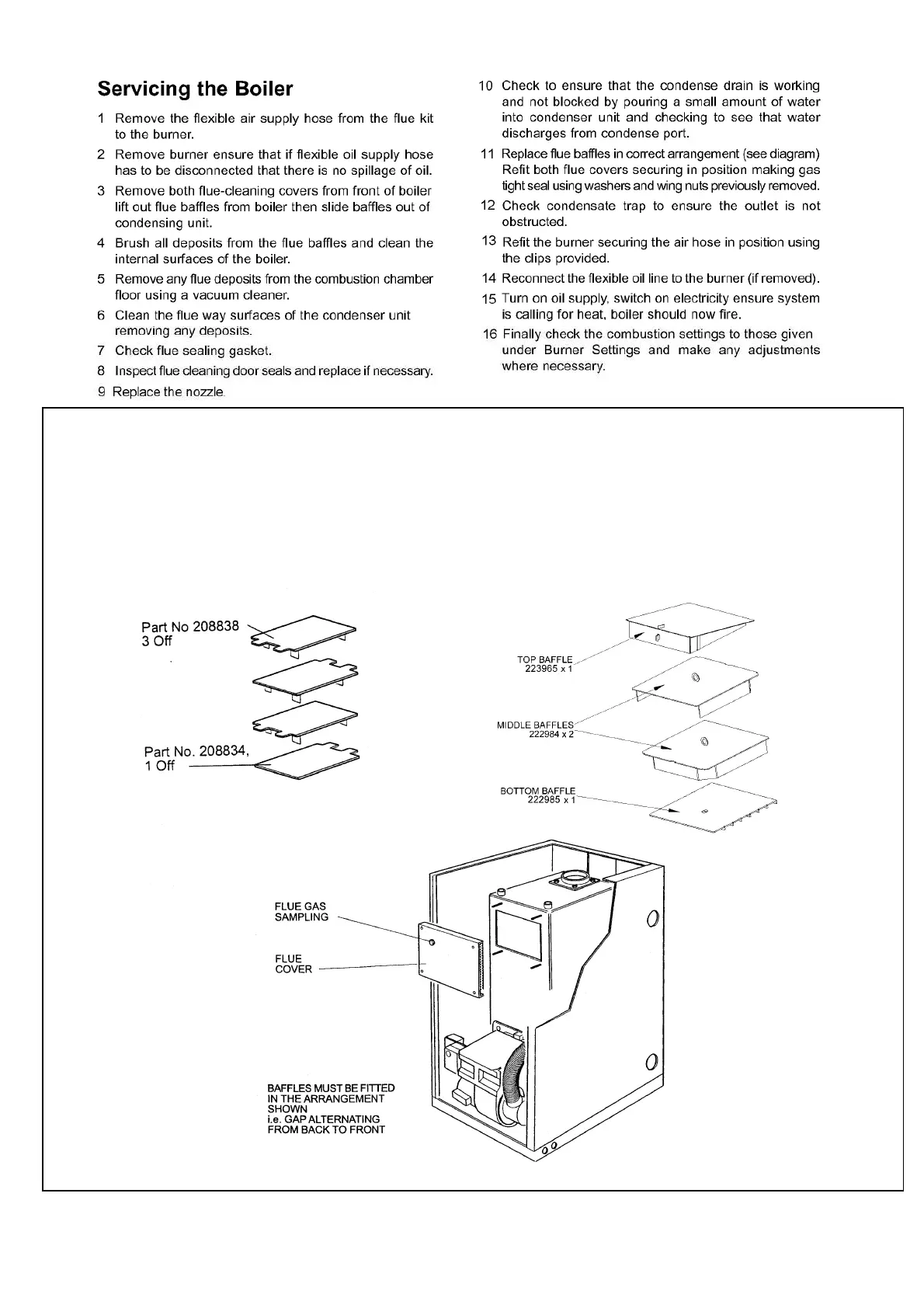

FIG. 16 – BAFFLE ARRANGEMENTS
IMPORTANT:
FAILURE TO ENSURE THE CORRECT PLACEMENT OF BAFFLES WILL
RESULT IN THE INCORRECT OPERATION OF THE BOILER,
INVALIDATING THE APPLIANCE WARRANTY.
50/90
100/125
