CRYSTAL
14
Number of
DMX channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
11 33 33-43 44 55 66
13 33 33-45 46 59 72
15 33 33-47 48 63 78
18 33 33-50 51 69 87

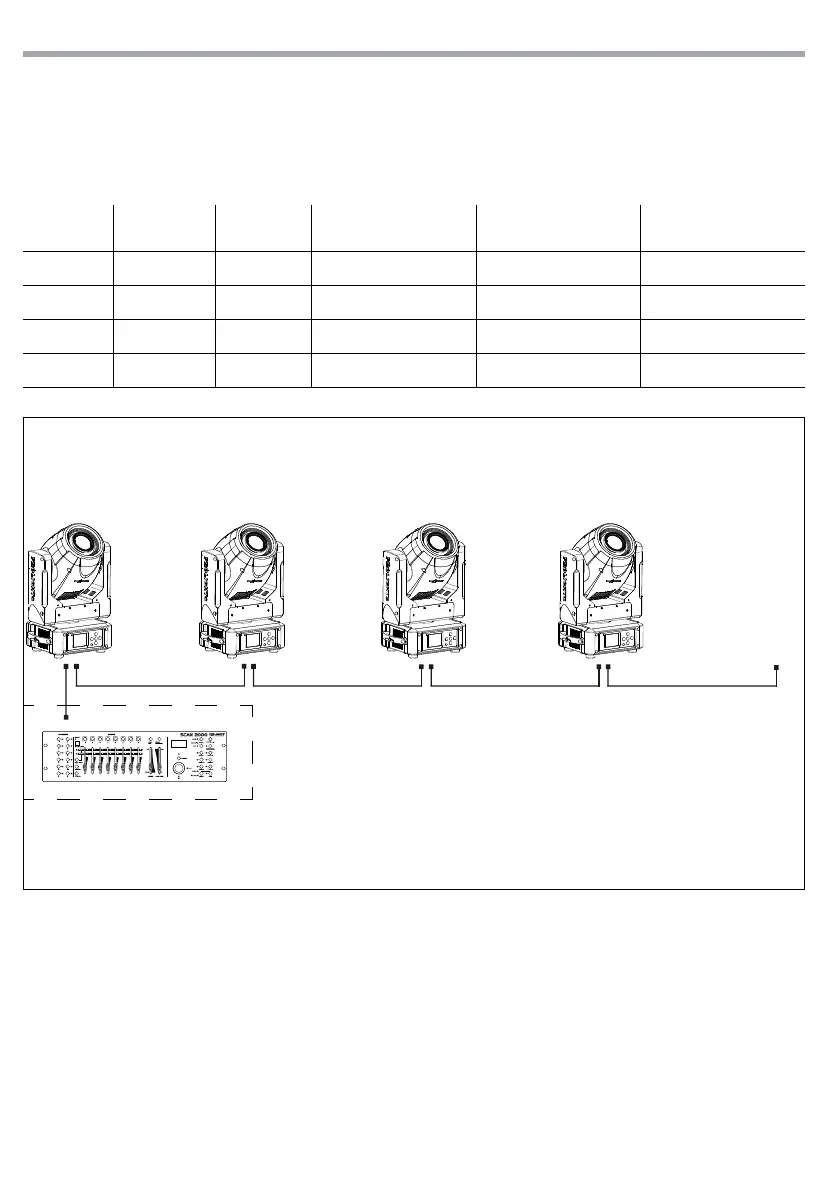

Example 11 DMX channels configuration
channel. If e. g. address 33 on the controller is provided for controlling the function of the first DMX chan-
nel, adjust the start address 33 on the CRYSTAL. The other functions of the light effect panel are then
automatically assigned to the following addresses.
An example with the start address 33 is shown below:
DMX512 Controller
. . . . . . . . . . . .
DMX Address: 33 DMX Address: 66DMX Address: 44 DMX Address: 55
Fig.5
