Trinamic CANopen quickstart guide • Guide • Document Revision V1.00 • 2021-Sept-10
8 / 10

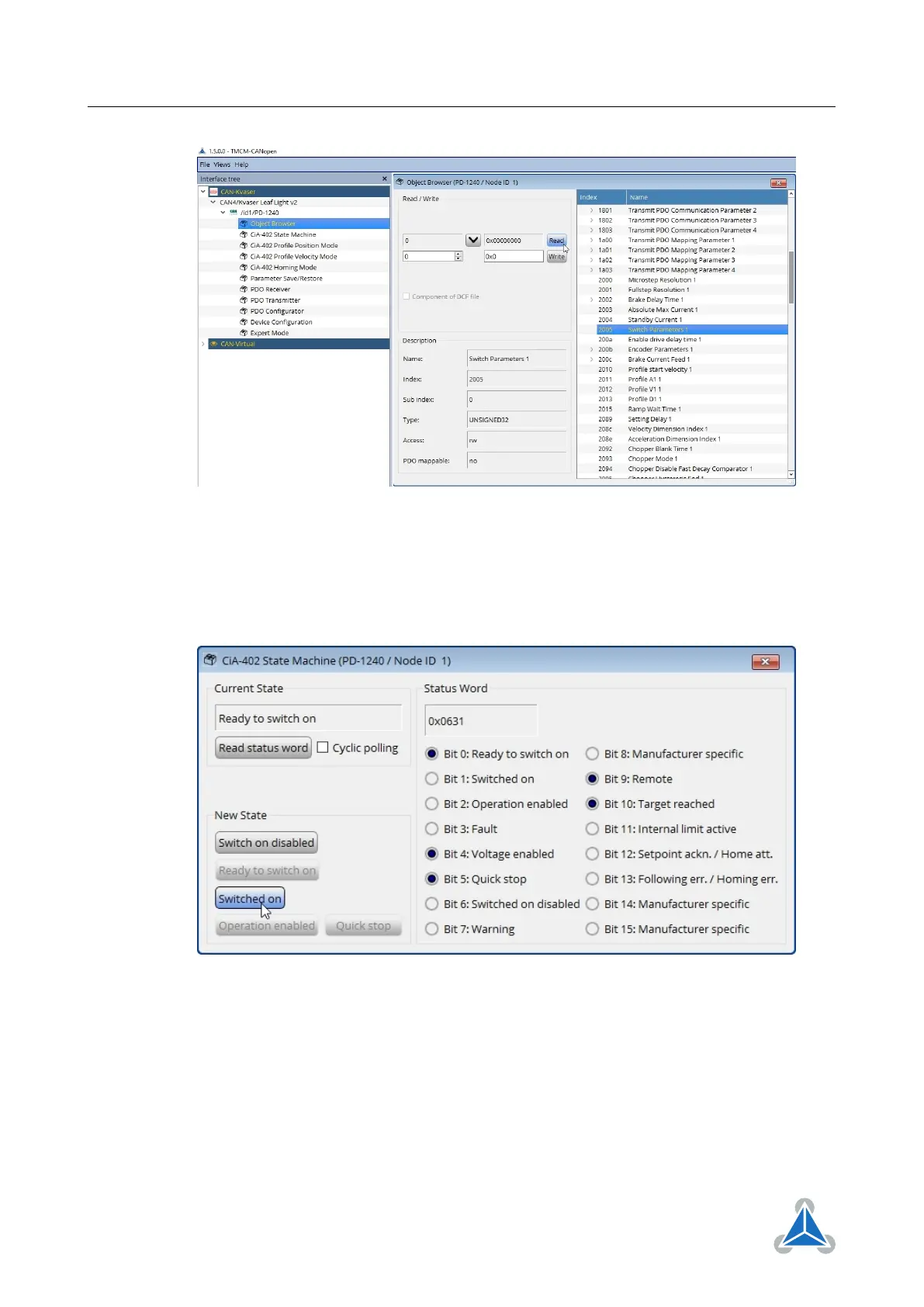

Figure 10
5. Open the CiA-402 State Machine.
6. Switch from Switch on disabled to Ready to switch on.
7. Switch to Switched on
Figure 11
8. Switch to Operation enabled
The motor is powered with hold current.
©2021 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at www.trinamic.com
