The spur outlet must still be accessible even when your cooktop is located in its
operating position.
Cable type: H05 VVF 3 core x 4mm2
The cable can be looped if necessary, but make sure that is not kinked or trapped
when the cooktop is in position. Care must be taken to avoid the cable being in
contact with hot parts of the appliance.
Warning: THIS APPLIANCE MUST BE EARTHED.
The mains terminal block is located on the underside of the cooktop and the
terminals are accessible by removing the terminal block cover. This is done by
depressing the front of the cover and releasing it from the securing clips.

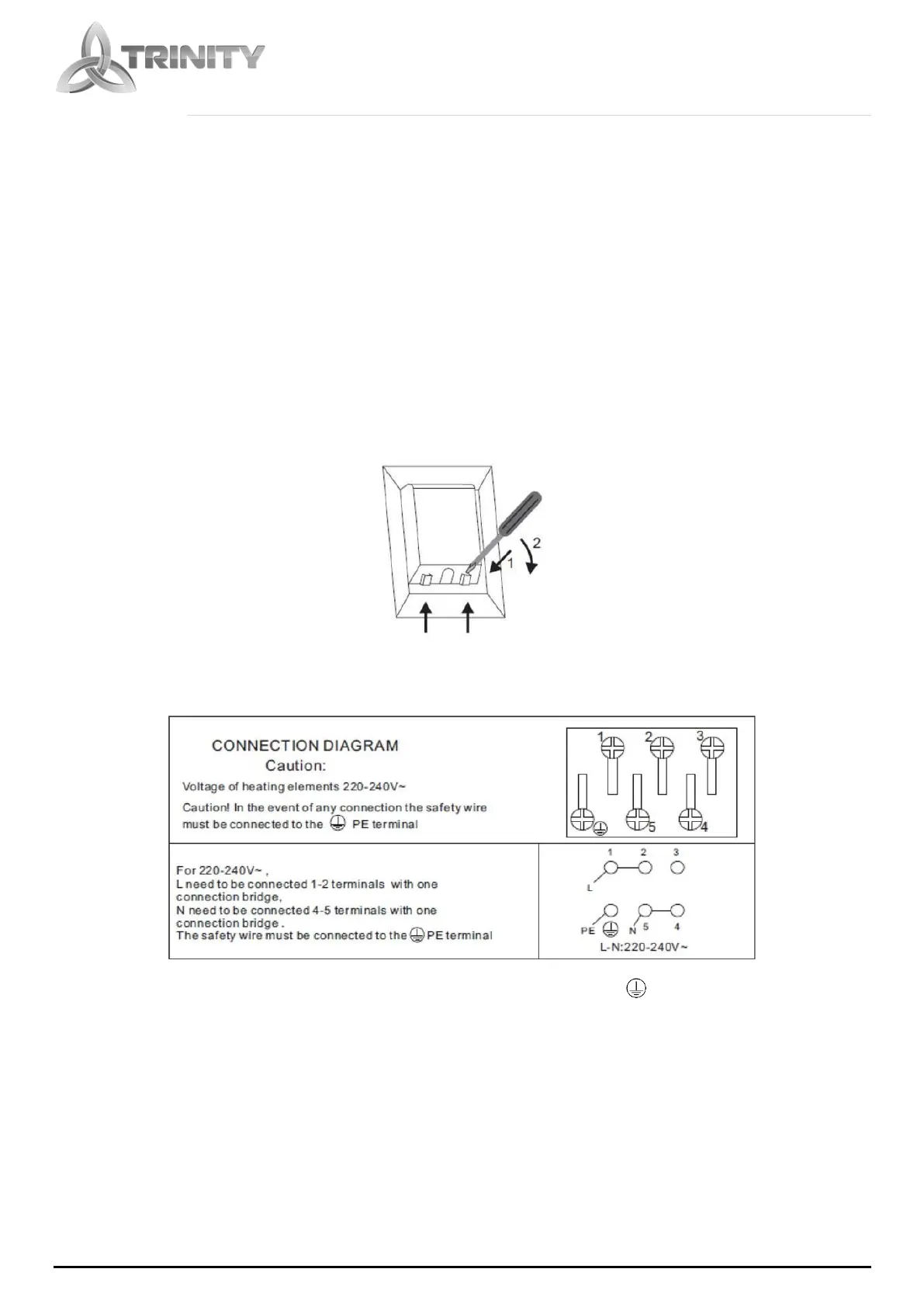

The cable connections must be in accordance with the diagram located on the
bottom of the cooktop (see below). The terminal bridges must also be positioned
as indicated.
L - Live or Phase; N - Neutral; PE - Earth
Carefully and fully tighten ALL of the terminal screws.
If the cooktop is switched on for the first time and only two zones work, you
should recheck that the terminal screws are all fully tightened and the bridges are in
correct position.
This should be done before contacting the Customer Care.
