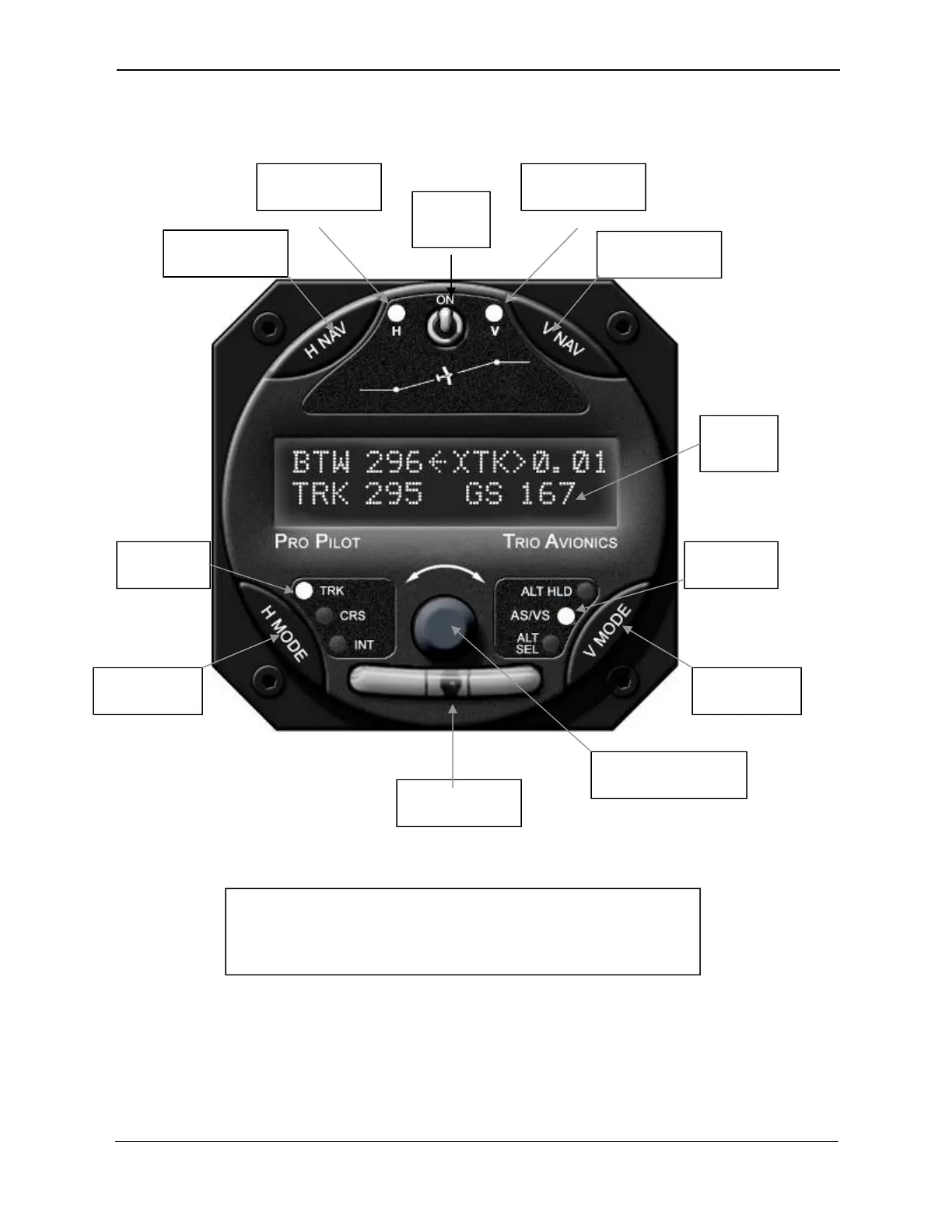

Pro Pilot Control Head Diagram
On/Off
Switch
H NAV Servo
On/Off
V NAV Servo
On/Off
H NAV Servo
LED
V NAV Servo
LED
Display
Screen
H MODE
Pushbutton
V MODE
Pushbutton
Slip-Skid
Indicator
Rotary Encoder
A
nd Pushbutton
V MODE
LEDs
H MODE
LEDs
H NAV - Horizontal Navigation (Activates/Deactivates Roll Servo)
V NAV - Vertical Navigation (Activates/Deactivates Pitch Servo)
H MODE - Sequences through Horizontal Navigation Modes
V MODE - Sequences through Vertical Navigation Modes
