1- Check if your box has already the 4 holes for the step in (A): if so, skip to step 4

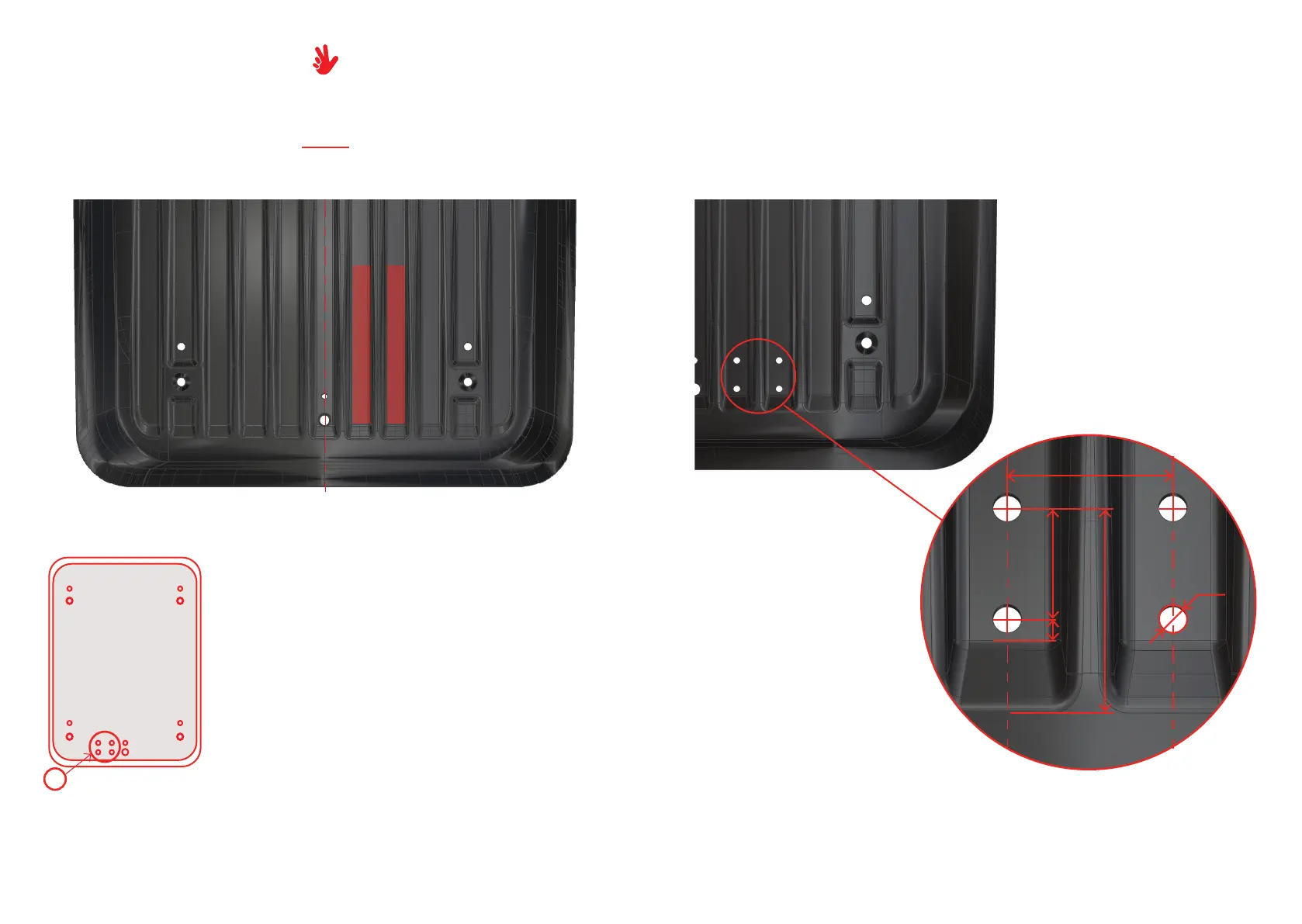

2- With the front box flipped upside down, on the right side identify the 2 gaps between the
reinforcement fins (shown in red in the picture).
3- With a 9mm tip, drill 4 holes as shown in the picture. They have to stay in the middle of
the flat part between the fins.
center rightleft
35 (±1)
52 (±1)
7
60 (±2)
DIMENSIONS IN MM.
A
front
TOP VIEW
BOTTOM VIEW
rear
(handlebar side)
24
25
INSTALLING THE STEPIN
Ø9
