ASSEMBLING THE BIKE
14
1- Unscrew 4x M8 bolt from the front of the bike frame. M8 bolts are the big and long ones.
They come with 2 different lengths: the long ones have to be mounted on the front, with
washers between the bottom of the frame and the nut.

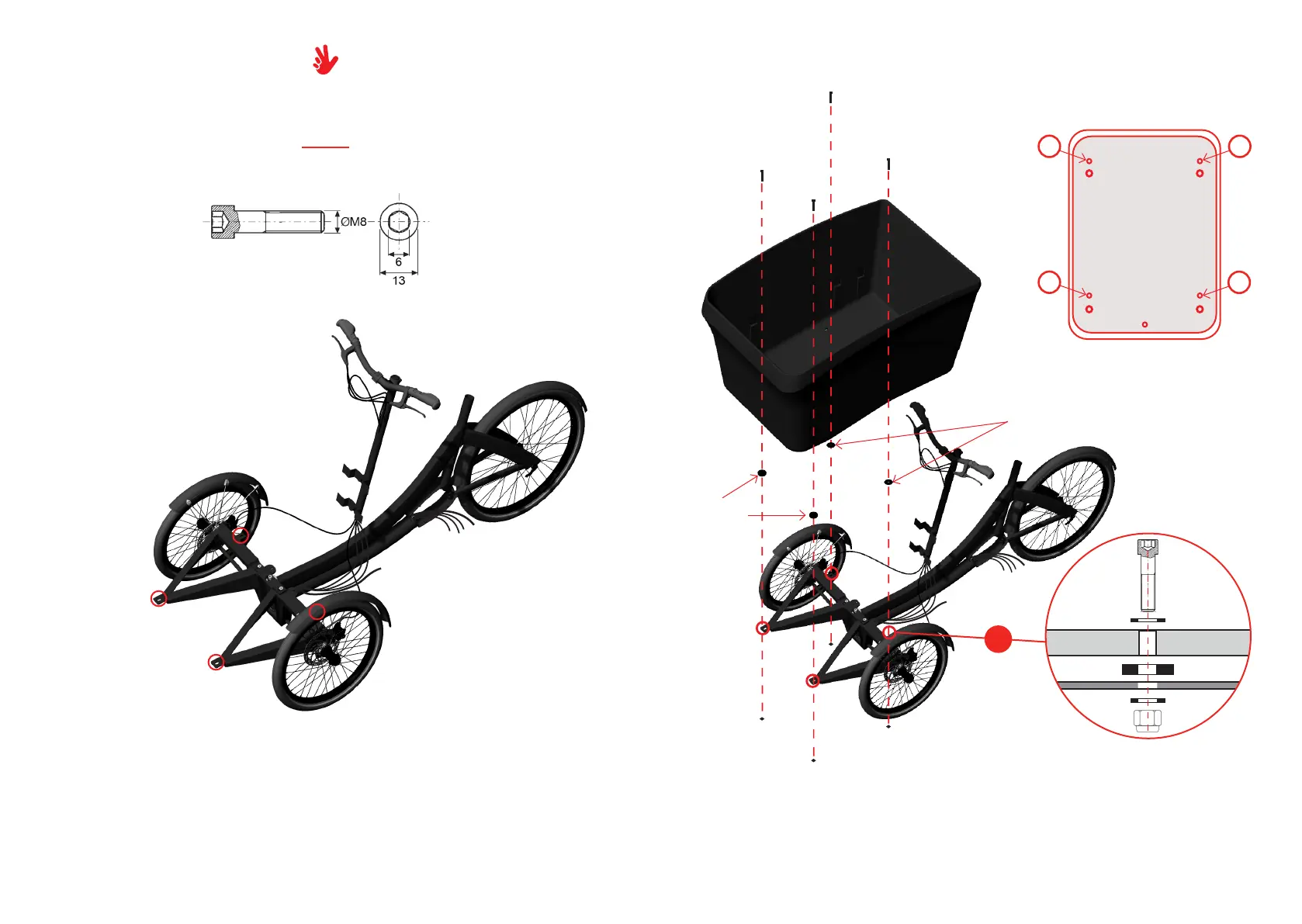

2- Place the box on the front metal frame, align the 4 SMALL holes (1, 2, 3, 4) as shown
in the big picture and place 4x M8 bolt in them (long ones on the rear, short ones on the
front). Put bolts (apply some grease on them), nuts and washers according to picture A.
Tight all the 4 bolts using a force of 10 Nm (7.38 ft-lb).
15
DIMENSIONS IN MM.
1
3
2
4
rear
(handlebar side)
front
2x nylon spacers
ø25x10hx9mm
(from next container)
2x nylon spacers
ø25x20hx9mm
(from next container)
TOP VIEW
A
ASSEMBLING THE BIKE
