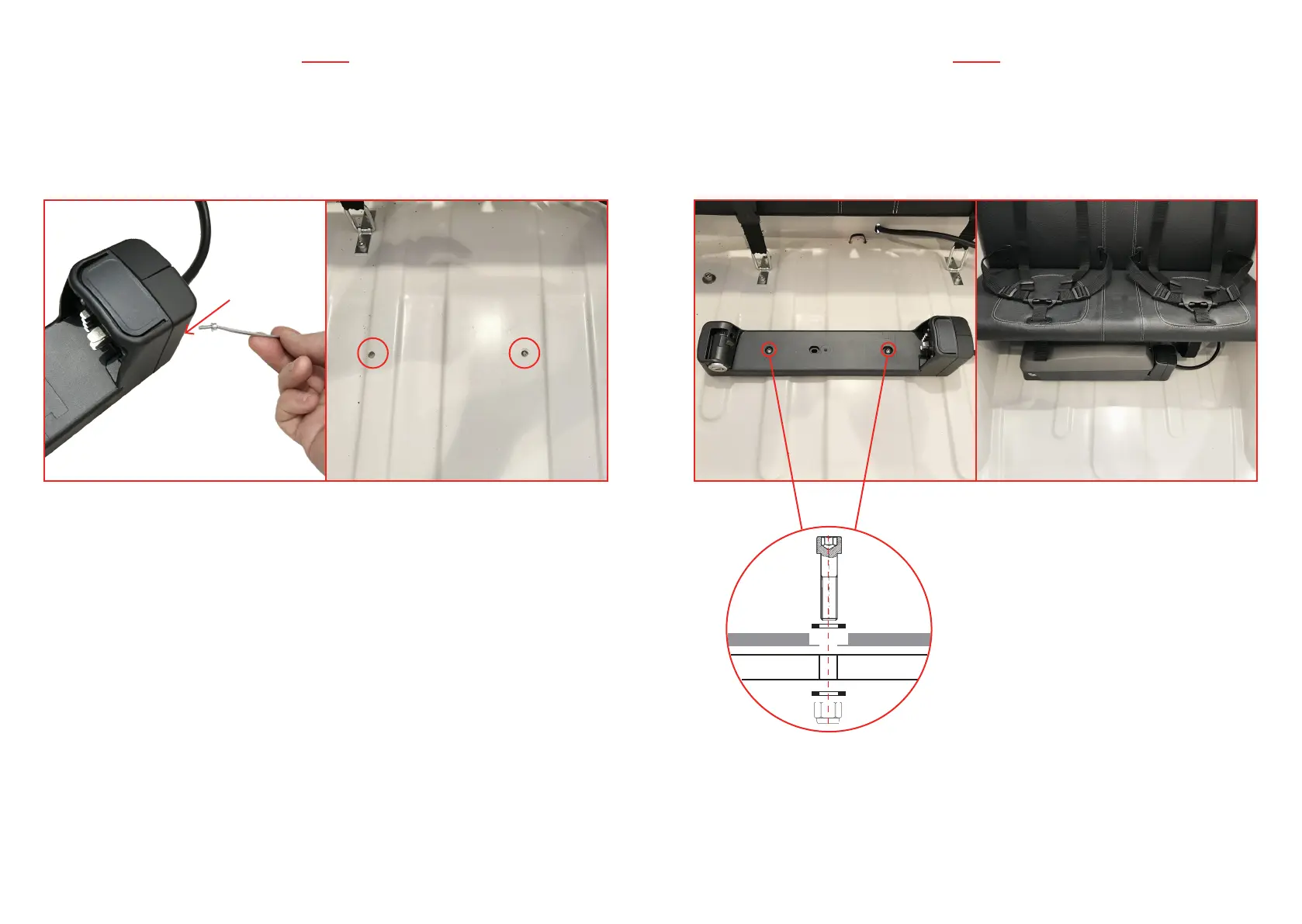

5- Mount the left half of the terminal part. Use the small Allen headed bolts + washers.
Tight both the left and the right bolts.
6- Identify the mounting holes on the front box floor.
7- Fix the battery dock to the box using 2 M6 bolts. Use 2 washer + 1 M6 bolt + 1 M6 nut in
each hole. A nut and a washer have to be placed under the front box.
8- Place the seat (if included) in its position.
22
23
MOUNTING THE BATTERY MOUNTING THE BATTERY
