Trion HE Plus 1400 - Typical Mounting Positions

Installation
15
For Qualified HVAC
Installer Only

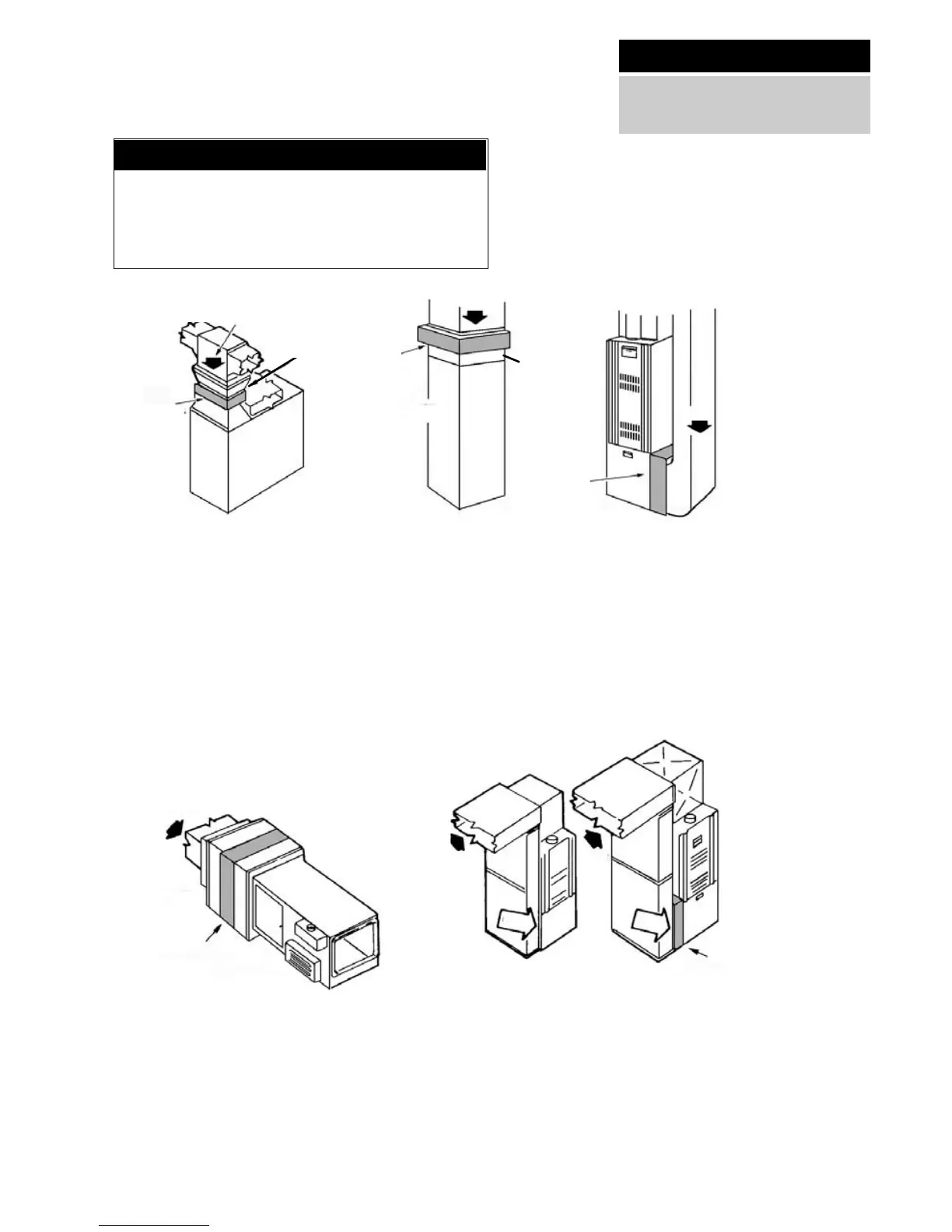

TYPICAL MOUNTING POSITIONS
(Air cleaner shown shaded in illustrations)
Horizontal Furnace – Mounted
vertically in return duct as
close to the furnace as
possible.
Offset Installation
– If there is less
than 7-in. for mounting the air cleaner
between the duct and the furnace,
move the return air drop.
Space Saver
Furnace
(Highboy) – Side
installation.
Mounted
vertically, where
return air enters
side inlet of
furnace.
Counterflow
Furnace –
Mounted
horizontally in
return duct – just
above the
furnace.
Basement Furnace
(Lowboy) – Mounted
horizontally in return
plenum – just above the
furnace.
Before making changes to a HVAC system
that may affect the ventilation of
fuel-burning appliances, contact your
heating contractor.
WARNING
Transitions
Before
After
Transitions
