ELECTRICAL INSTALLATION
CAUTION:
If the Electronic Air Cleaner is wired directly to the
integrated accessory control on the furnace, it is
imperative that the ampere rating of the control be
sufficient to handle the current required by the air
cleaner. All wiring shall be performed in accordance
with the National Electric Code.
CAUTION:
Do not wire the Electronic Air Cleaner directly to a
multiple speed blower motor. Wiring to a multiple
speed blower motor will damage the Air Cleaner
power supply and void the warranty.
Read the instructions in the furnace installation manual
carefully before attempting installation or operation of the
Electronic Air Cleaner. Failure to follow these instructions
may result in an improper installation and therefore void
the HVAC system and/or Air Cleaner warranty.

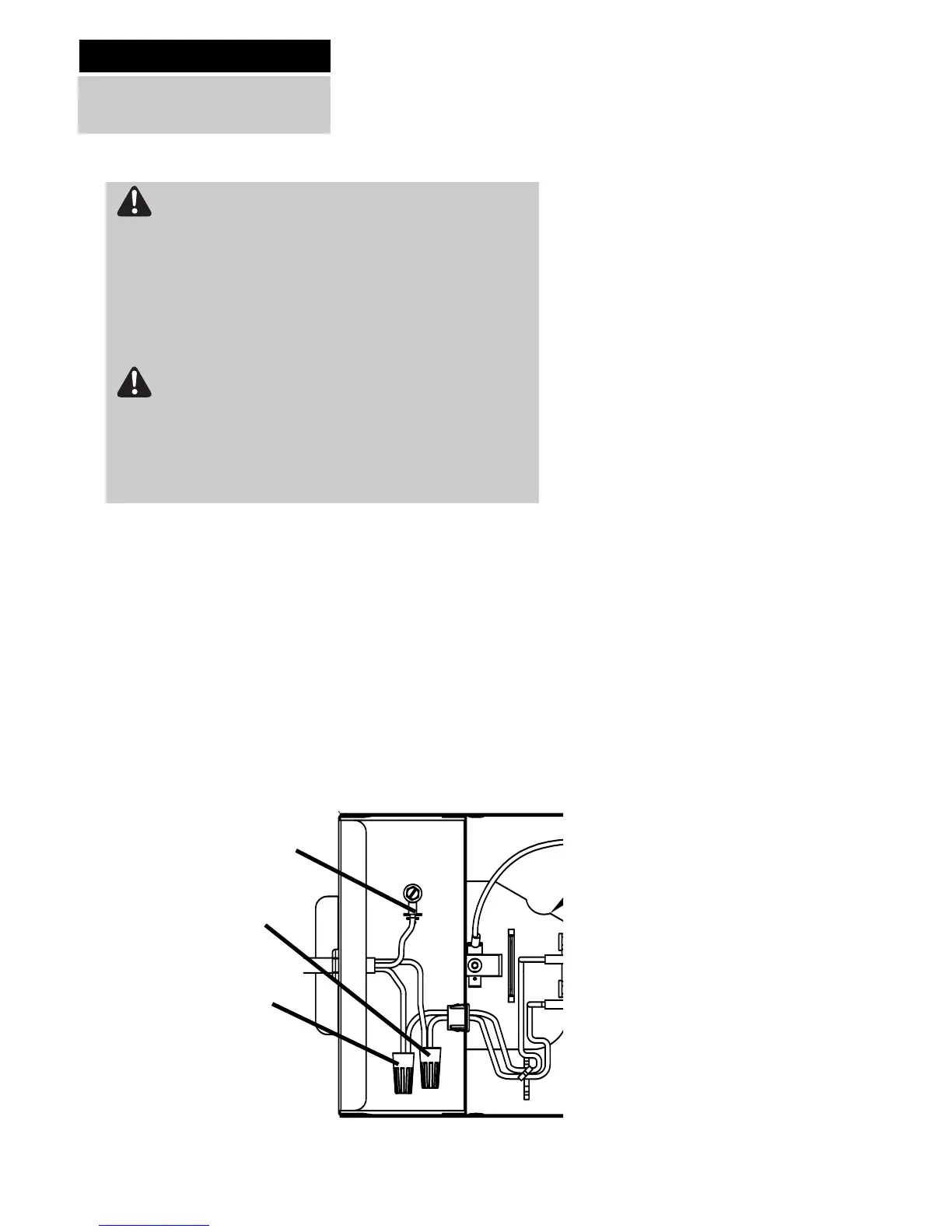

PROCEDURE FOR WIRING THE ELECTRONIC AIR
CLEANER TO INPUT POWER SOURCE
A power cord is provided on the 120 volt model for
connection to a standard 120V receptacle. If the unit is to
be permanently connected to the furnace control panel, a
wiring compartment (with a knockout hole) is located at the
rear of the Power Tray Assembly. It is accessible by
removing the Power Tray Cover.
Installation
18
For Qualified HVAC
Installer Only
Green
Black to Black
White to White
To Next Page
