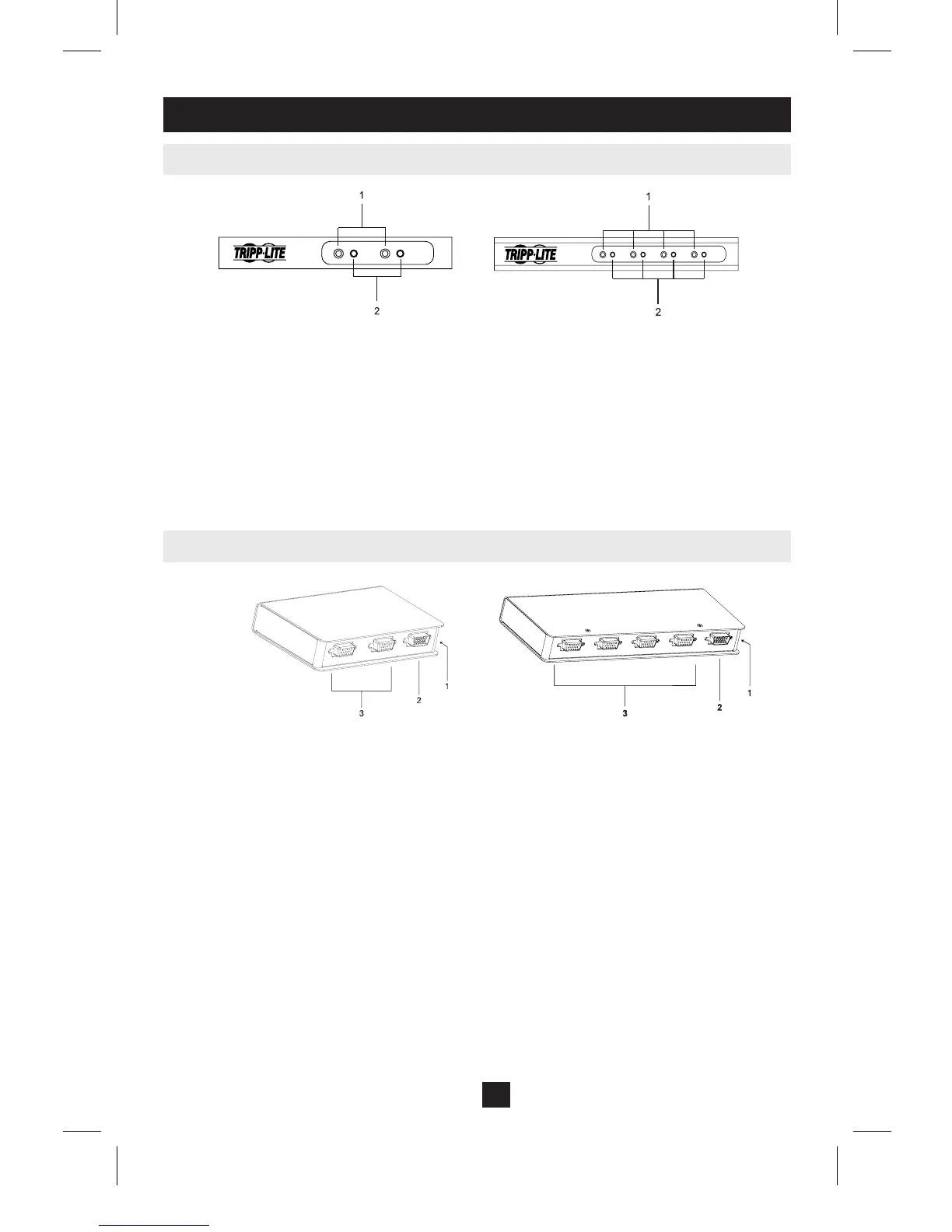

3. Components
3.1 Front View
3.2 Rear View
Port Selection Buttons1)
Press a button to select the corresponding port•
Port LEDs2)
The Port LEDs are built into the Port Selection Buttons. A lit LED indicates
that its corresponding Port is the one that has been selected. If flashing, the
corresponding port is being accessed in an auto scan.
Power Jack (not shown)1)
The power adapter cable plugs in here.
Note: The KVM switch does not require external power. Use of a power
adapter is optional, and requires a separate purchase.
Console Port Connector2)
The Console Adapter Cable plugs in here.
CPU Port Connectors3)
The KVM cables that connect the unit to the mouse, keyboard, and video ports
on the computers you are connecting can plug into any available port.
