Tripp Lite B024-DPU08 User Manual

4
Installation
Rack Mounting – Front
Note: Unless otherwise specified, rack screws mentioned in the following steps are user-supplied. If you need additional screws,
contact your rack dealer.

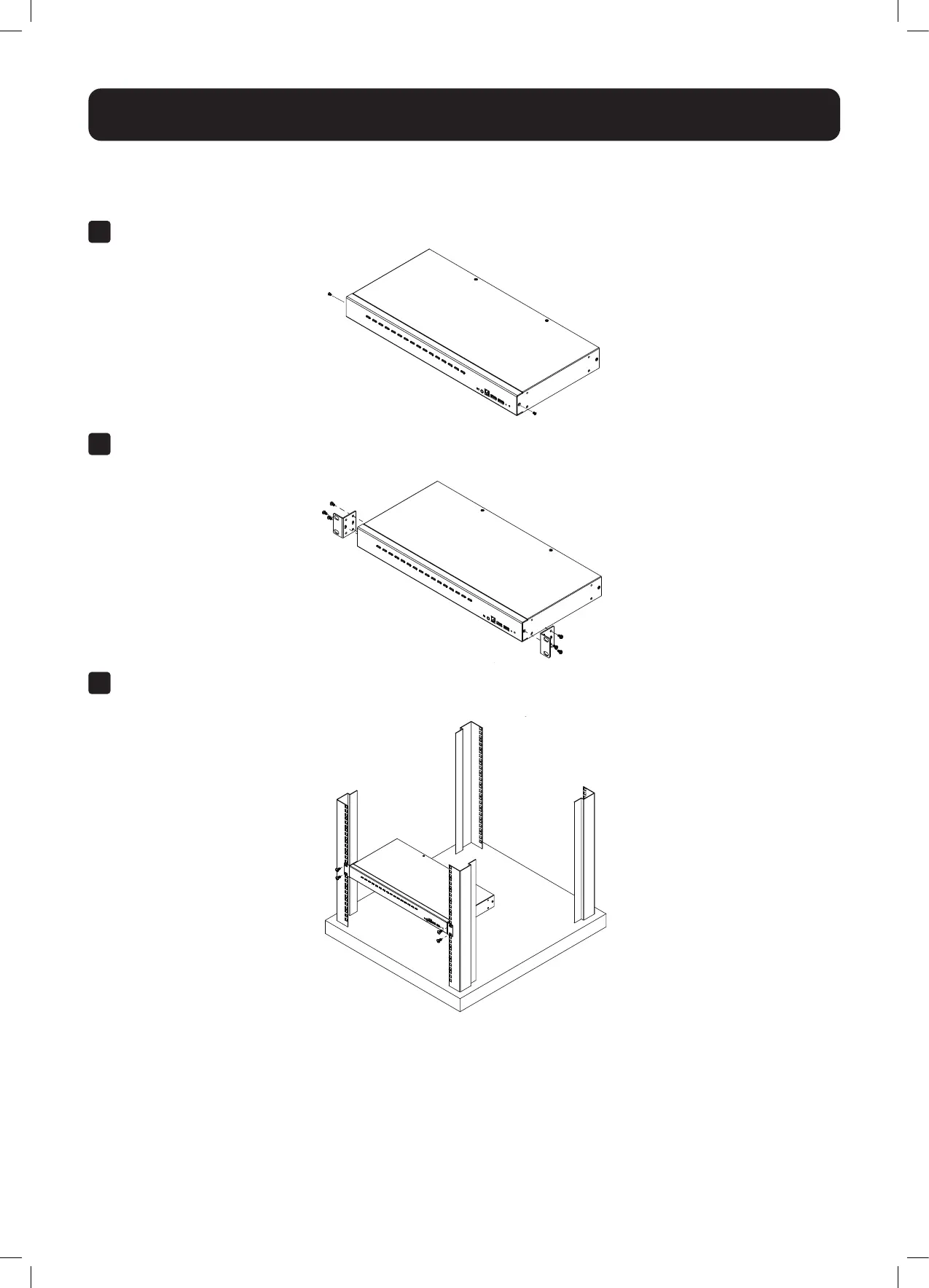

1
Remove the screws, one each from the left and right sides near the front of the unit.
2
Use the M3 x 6 Phillips hex head screws supplied with the rack-mounting kit to attach the rack mounting brackets to
the sides near the front of the unit.
3
Place the KVM switch in the rack. Position it so the holes in the mounting brackets line up with the holes in the rack.
Secure the mounting brackets to the front of the rack.

Tripp Lite B024-DPU08 Specifications

General

Console ports	3.5mm headphone, DisplayPort, USB A
Audio connections	Yes
Headphone outputs	10
DisplayPort version	1.2
DisplayPorts quantity	9
Console USB ports quantity	2
Number of computers controlled	8
Cables included	Audio (3.5mm), DisplayPort, USB Type-A to USB Type-B
Maximum resolution	4096 x 2160 pixels
Input current	1.2 A
Output current	3.33 A
Output voltage	12 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	18.44 W
Product color	Black
Rack capacity	1U
Housing material	Metal
Built-in display	No
Package type	Box
Package depth	324.1 mm
Package width	499.1 mm
Package height	133.1 mm
Package weight	4790 g
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	CE, REACH, RoHS, WEEE
Country of origin	Taiwan
Master (outer) case width	515 mm
Master (outer) case height	155 mm
Master (outer) case length	328 mm
Master (outer) case weight	5400 g
Harmonized System (HS) code	8471.80.1000
Quantity per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332263725

Weight and Dimensions

Depth	44 mm
Width	214.3 mm
Height	432.4 mm
Weight	3110 g
