Tripp Lite B126-2A1 User Manual

OPTIONAL LOCAL
MONITOR
LOCAL
TRANSMITTER
REMOTE
RECEIVER
BLU-RAY
MONITOR 1
Up to 200 ft. at 1080i @ 60Hz (Cat6)
Up to 150 ft. at 1080p @ 60Hz (Cat6)
MONITOR 2
5

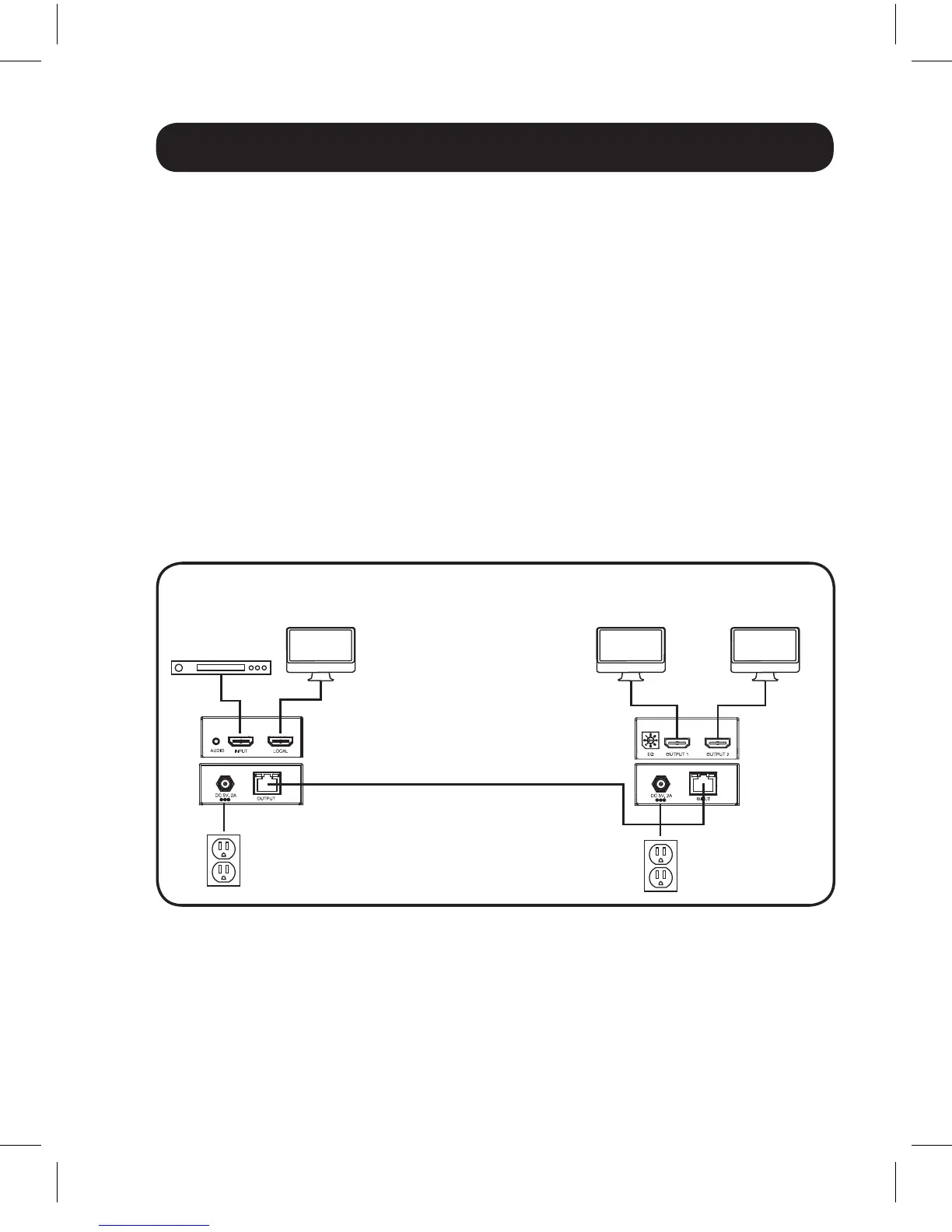

Standard 1 x 2 Extender Kit Installation
Notes:
1. Test to make sure that the entire installation works properly before
running cables through ceilings/walls.
2. 24 AWG, solid wire Cat5e/6 cable, such as Tripp Lite’s N202-Series, is
required to achieve maximum distance and resolution.
3. The diagram below shows the maximum extension distance when
using Cat6 cabling. When using Cat5 cabling, the maximum extension
distance is 175 ft. at 1080i (60Hz), and 125 ft. at 1080p (60Hz).
4. The B126-2A1 is set to transmit a stereo audio signal by default.
Press the Audio button on the transmitter unit to switch to 7.1-channel
surround sound audio. (7.1-channel surround sound signal will be
Multi-Channel or PCM)
