Standard Extender Kit Installation
Model B127A-111-BDTD
Notes:
1) Test to ensure the entire installation works properly before pulling cables
through ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid wire Cat6
cable. Using stranded-wire Cat6 cable or cable with a gauge (AWG) size higher
than 24 AWG will result in shorter extension distance. Higher gauge cabling,
such as 26 AWG, has a more limited transmission capability than lower gauge
cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid-
wire cabling.

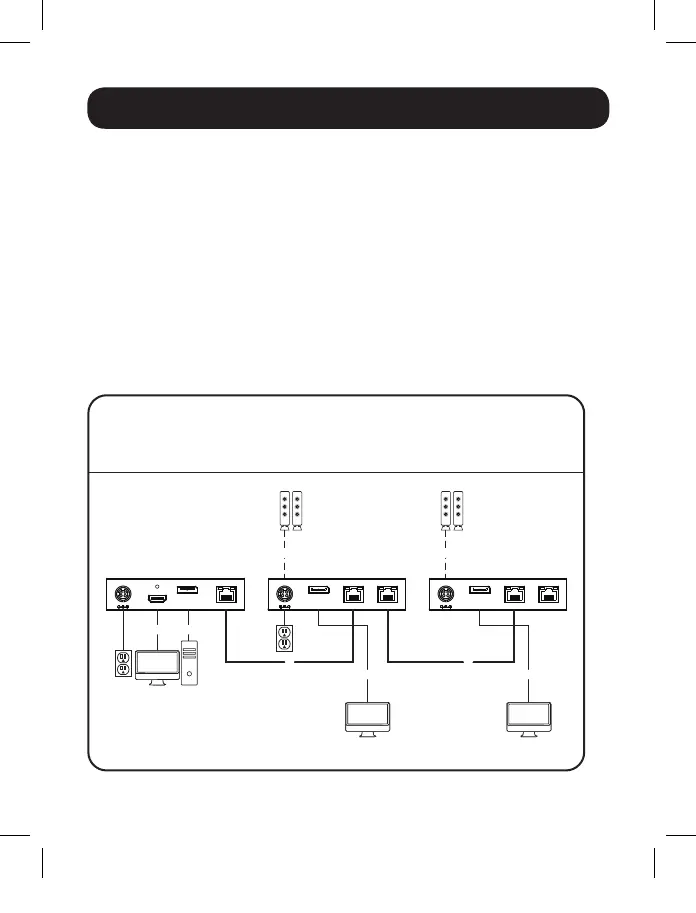

3) The installation diagram shows a B127A-111-BDTD kit.
4) External power is not required for remote receiver units due to Power over
Cable (PoC) technology incorporated in the transmitter units.
DC 24V, 1A
OUTPUTLOCAL INPUT
DC 24V, 1A
OUTPUTOUTPUT
INPUT
DC 24V, 1A
OUTPUTOUTPUT
INPUT
Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz
Toslink cable
Up to 15 ft. (4.5 m) DisplayPort cable at 4K/60Hz
B127A-111-BDTD
extender kit
DisplayPort
Source
Monitor
Monitor Monitor
Up to 230 ft. (70 m)
at 4K/60Hz
Up to 230 ft. (70 m)
at 4K/60Hz
LOCAL / TRANSMITTER REMOTE / RECEIVER
