DIN-Rail Mounting and Dismounting Instructions
Mounting the Switch Removing the Switch
Click
Push
Push
Click
ATTENTION: The NFI-Series switches are open-type devices
and shall be DIN mounted or wall mounted (NFI-U05 and
NFI-U08-1 only) in a rack enclosure. The ambient temperature
should not exceed 75°C (167°F).
Mounting the Switch

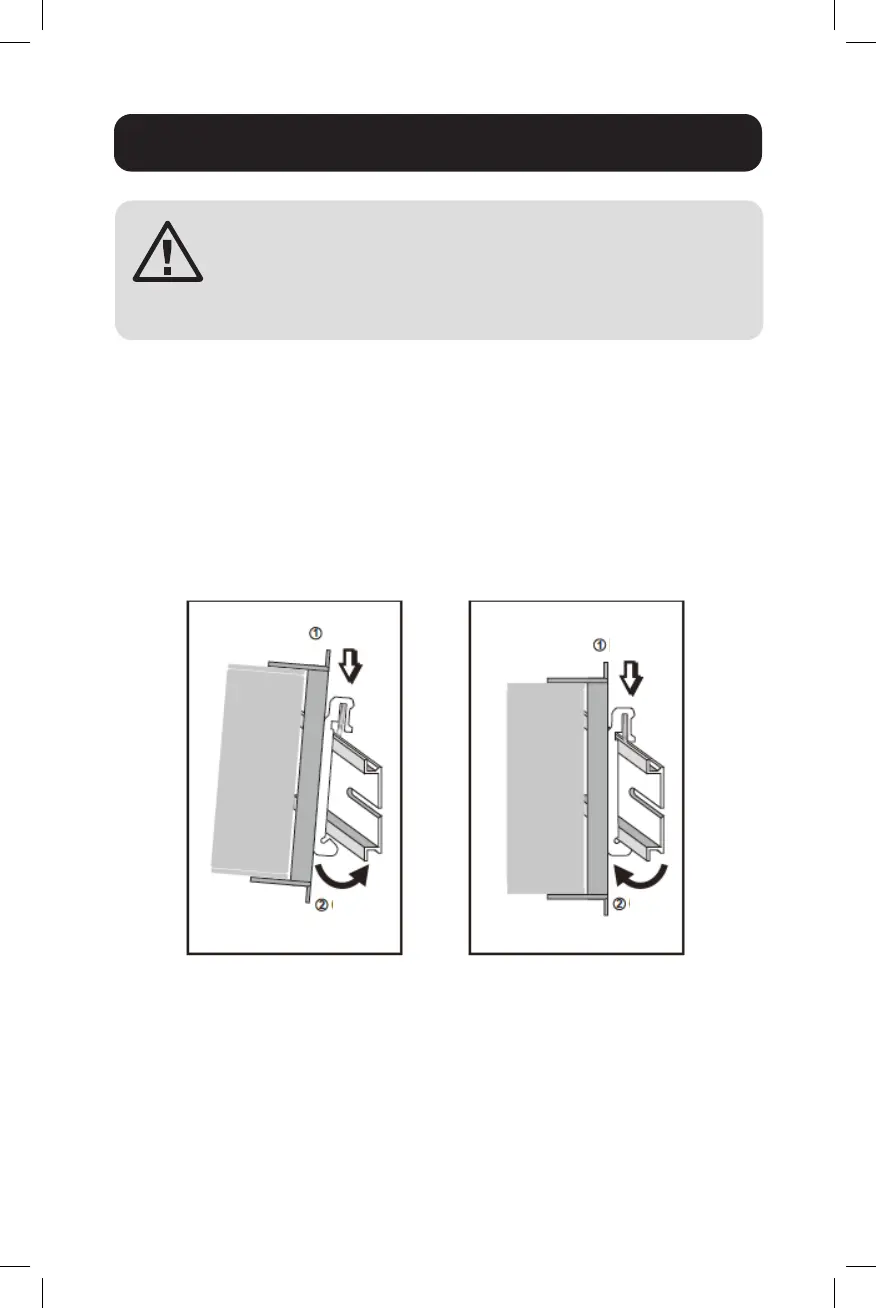

Place the switch on the DIN rail from above using the built-in slot. Push the
front of the switch toward the mounting surface until it snaps into place.
You will hear a “click” to indicate it has successfully snapped into place.
Dismounting the Switch
Press the switch from the top, then pull out the lower edge of the switch to
remove it from the DIN rail.
