DIN-Rail Mounting and Dismounting Instructions
ATTENTION: A corrosion-free DIN mounting rail is advisable.
When mounting the switch, be sure to allow enough space
between devices to install the cabling and to ensure proper
airflow.
Wall-Mounting Installation for NFI-U05 and
NFI-U08-1 Only
Wall-Mounted Mask (NFI-U05 Only)
1. Mount the switch by using mounting holes on the wall at the appropriate
places.
2. The switch can be wall mounted either vertically or horizontally.
Mounting holes for
NFI-U05

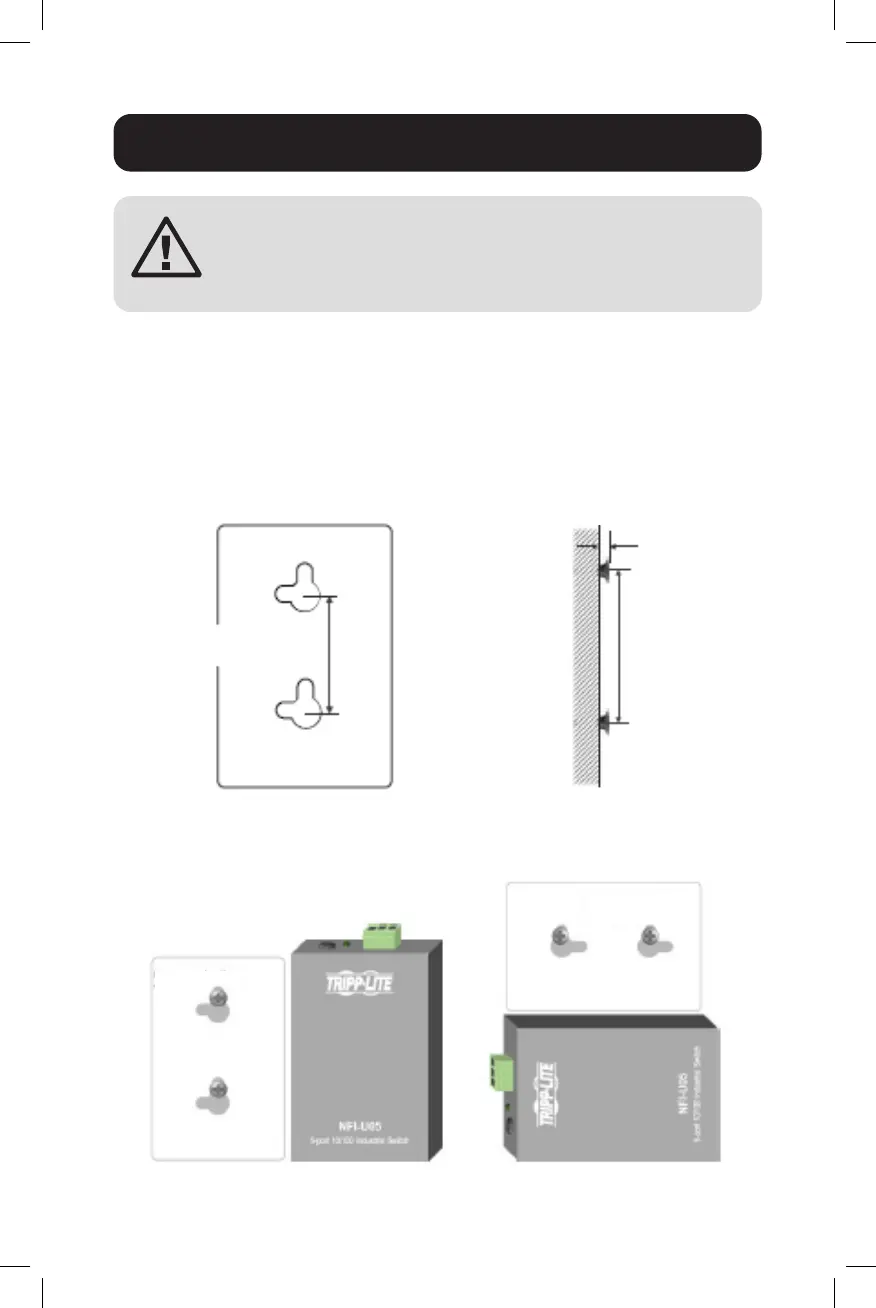

Mounting Holes for Drawing of NFI-U05 Screw Installation Distance
Horizontal Direction InstallationStraight Direction Installation
50 mm
1.5 mm - 3 mm
50 mm
Mounting direction
with screw
Mounting direction
with screw
