Wiring Power Input
Redundant Power Input
(NGI-U08C2POE8 Only)
Use “PWR” for Primary Power input and “RPS” for Redundant Power
input.
To insert the power wire and connect the +24~57VDC power to the
power terminal block:
•Useaatheadscrewdrivertoloosenthewireclampscrews.
• Insert the corresponding wires into the contacts.
• Tighten the wire clamp screws to prevent the wires from loosening.

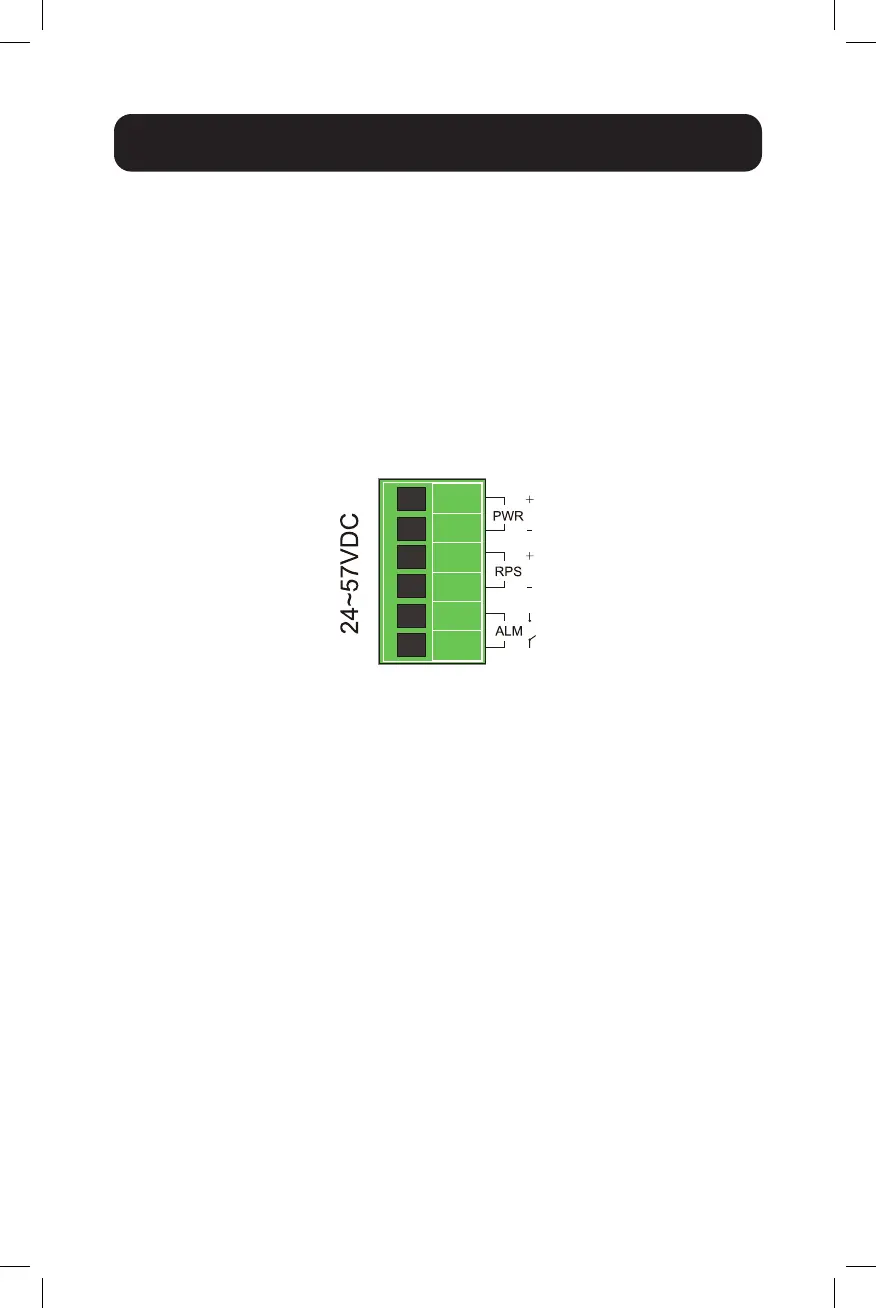

Top View of the
Terminal Block
