15
Wiring Power Input
Wiring Power Input (NGI-U05C2POE4 and
NGI-U05POE4 Models Only)
You can use “PWR” from the terminal block or 4-pin Mini-DIN for Power
input.

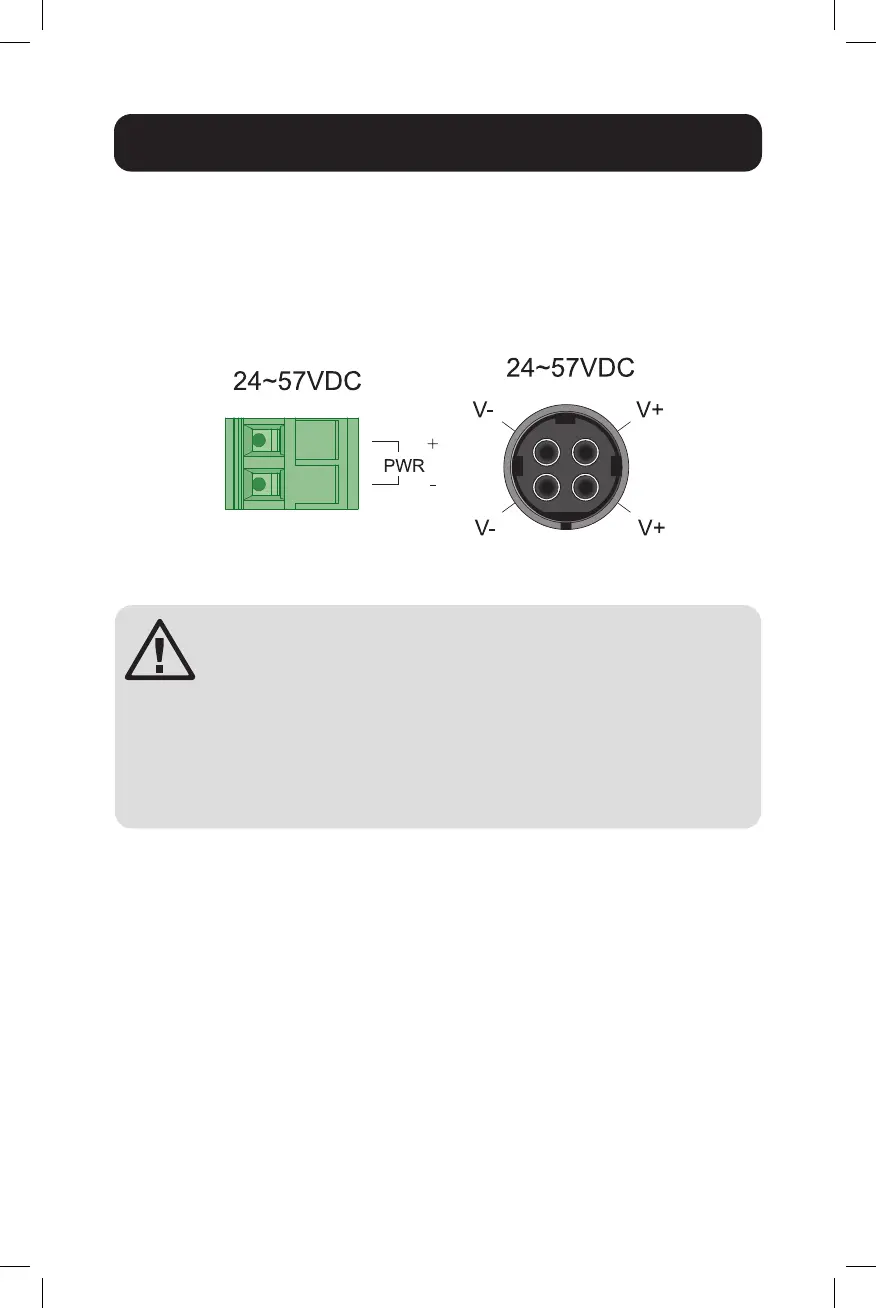

Top view of connectors are shown below:
Caution:
• Use copper conductors only.
• Use wiring cable with rated temperature at least 221°F
(105°C).
•Tightenthewiretoatorquevalue4.5lb•in(0.5N•m).
• The wire gauge for the terminal block should range between
12~18 AWG (4~0.75 mm2).
Connecting to Terminal Block
To insert the power wire and connect the +24~57VDC at a maximum of
6A DC power to the power terminal block:
•Useaatheadscrewdrivertoloosenthewireclampscrews.
• Insert the negative/positive DC wires into the PWR-/PWR+ terminals,
respectively.
• Tighten the wire clamp screws to prevent the wires from loosening.
Terminal Block
Mini-DIN
