Triton Shannon User Manual

Shannon electric shower
3
MAIN COMPONENTS
MAIN COMPONENTS

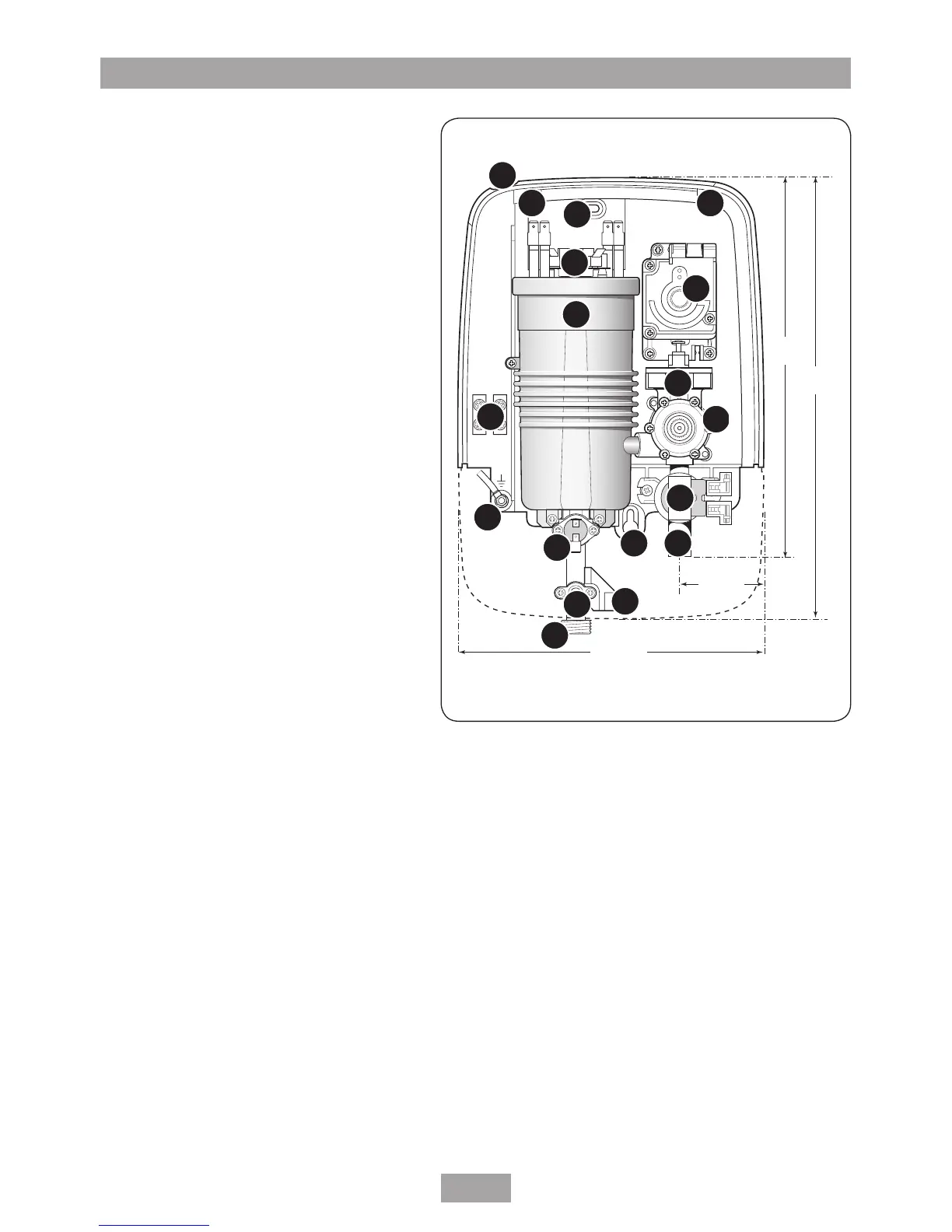

Inside unit (fig.1)
1. Top cable/pipe entry
2. Wall screw fixings
3. Cover screw fixings
4. Thermal safety cut-out
5. Power selector assembly
6. Can and element assembly
7. Pressure switch/flag assembly
8. Stabilising valve
9. Terminal block
10. Earth connection
11. Solenoid valve
12. Water inlet
13. Thermal cut-out (outlet)
14. Pressure relief device (PRD)
15. Shower outlet
255
mm
300
mm
58 mm
208 mm
T00311
Fig.1
NOTE: Not all wiring is shown for reasons of clarity
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3
2
3
