Triton T70gsi Plus User Manual

16
USER OPERATING INSTRUCTIONS
WARNING
If restarting immediately after stopping,
be aware that a slug of hot water will be
expelled for the first few seconds.
10
check list
SECTION

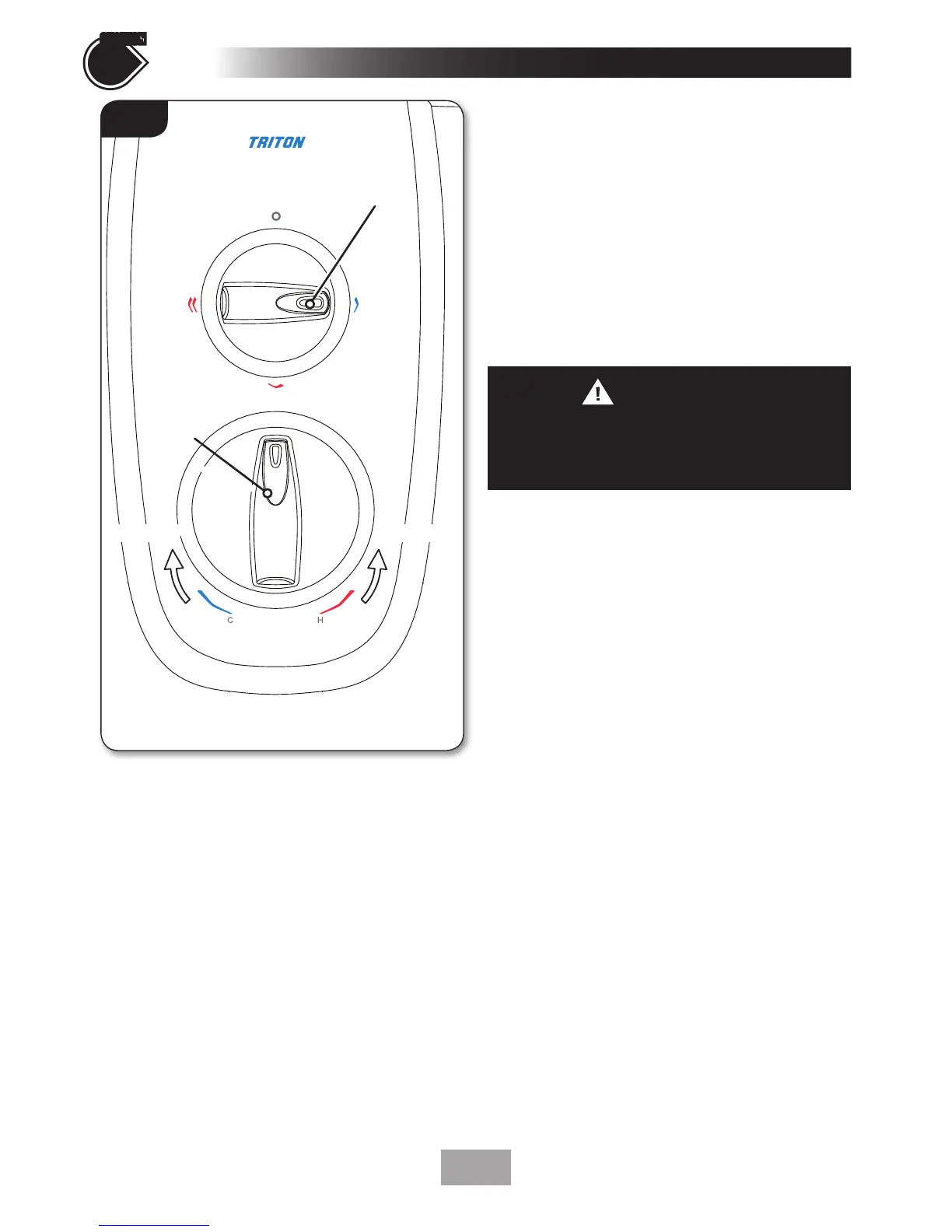

OPERATING THE SHOWER - (fig.19)
Make sure the commissioning procedure
has been carried out.
To start the shower
• Turn the power selector to either Cold,
Economy or High and the water will flow.
To stop the shower
• Turn the power selector to the ‘OFF’ position.
• After stopping the unit MUST be isolated via
the 45amp-isolating switch.
To use the power selector
The power selector has three positions - COLD,
ECONOMY and HIGH.
Cold setting - single blue line.
• Cold: the cold setting does not provide any
heat from the heater can to the incoming
water.
Economy setting - single red line.
• Economy: uses only one of the elements
within the heater can.
NOTE: If the stated flow rate required for the unit
cannot be met due to low water pressure, it will
be necessary to operate the unit on this setting
during the warmer months because of flow rate
limitations entering the unit.
High Setting - double red lines.
• High: uses both of the elements within the
heater can.
IMPORTANT: it will take a few seconds for the
temperature to stabilise once changes have been
made.
Power selector
Cold
Economy
High
Temperature
control
COLDER
Fig.19
OFF
HOTTER

Triton T70gsi Plus Specifications

General

Start/Stop Button	Yes
Phased Shutdown	Yes
IP Rating	IPX4
Type	Electric Shower
Voltage	240 V
Cable Entry Points	Top, Bottom, Back, Left, Right
Temperature Control	Thermostatic
