Triton T70gsi Plus User Manual

9
Installation - FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES
ELECTRICAL INSTALLATION
IMPORTANT: Switch off the electricity supply at
the mains before proceeding.
• The supply cable MUST be secured either by
routing through conduit, in trunking, or by
embedding in the wall, in accordance with
IEE regulations.
NOTE: Conduit entry can only be from rear.
Installation - ELECTRICAL INSTALLATION
NOTE: Deviations from the designated entry
points will invalidate product approvals. The
cable entry points are listed on page 3.
• Seal around rear entry cable to prevent water
ingress into the wall.
FIT TO THE WALL & CONNECT THE
SHOWER SUPPLIES

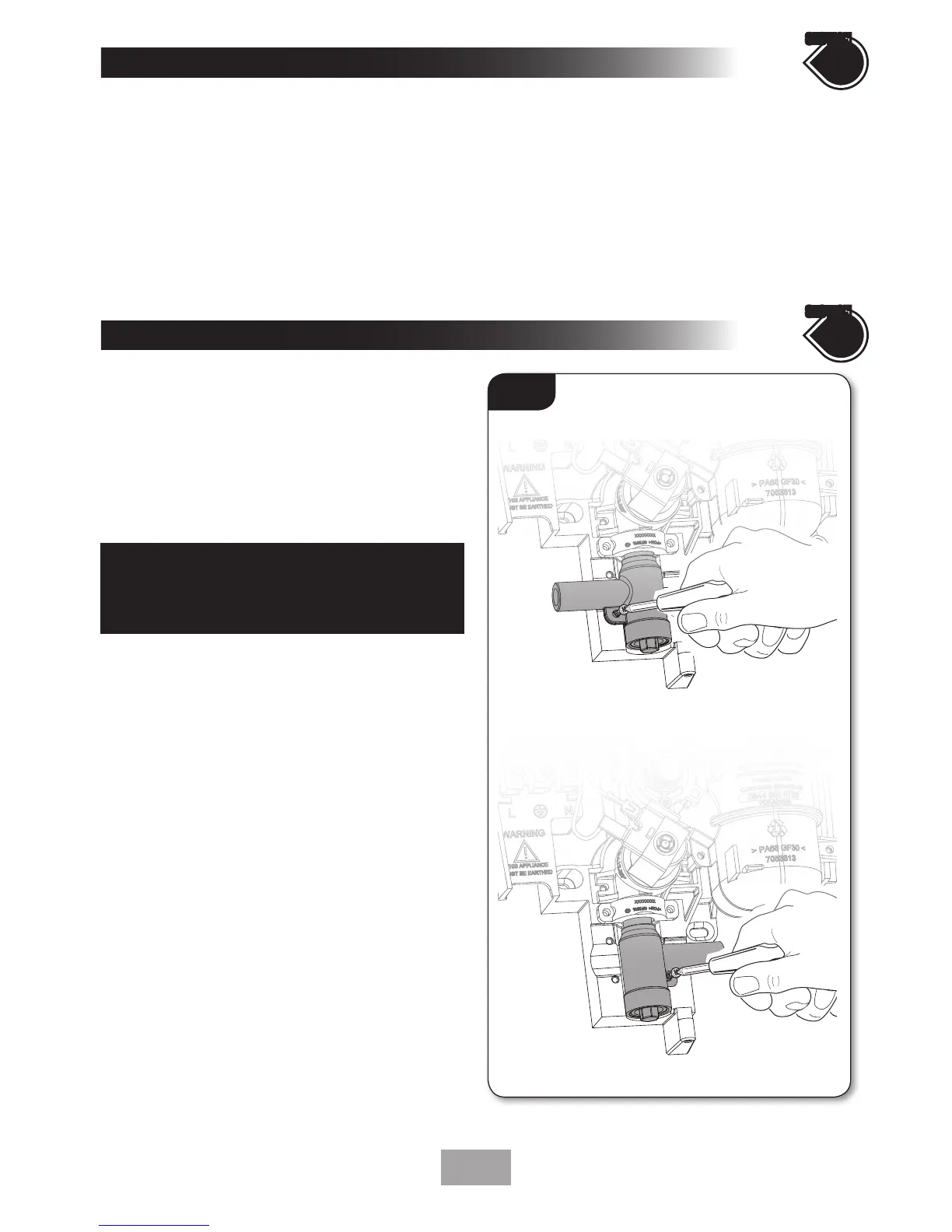

• The water inlet has been designed to
allow left or right fitting - (fig.8) decide
the inlet direction and then turn the inlet
either left or right and secure using the
retaining screw (contained in the pack).
6
check list
7
check list
SECTION
SECTION
Fig.8
Decide on Left or Right entry
Turn the inlet to the appropriate side
Insert the retaining screw
IMPORTANT!
The water inlet MUST ONLY be used in
the ‘Left’ or ‘Right’ entry position.

Triton T70gsi Plus Specifications

General

Start/Stop Button	Yes
Phased Shutdown	Yes
IP Rating	IPX4
Type	Electric Shower
Voltage	240 V
Cable Entry Points	Top, Bottom, Back, Left, Right
Temperature Control	Thermostatic
