Triumph A9508186 - Left Hand Mount and Cable Routing

11 of 20

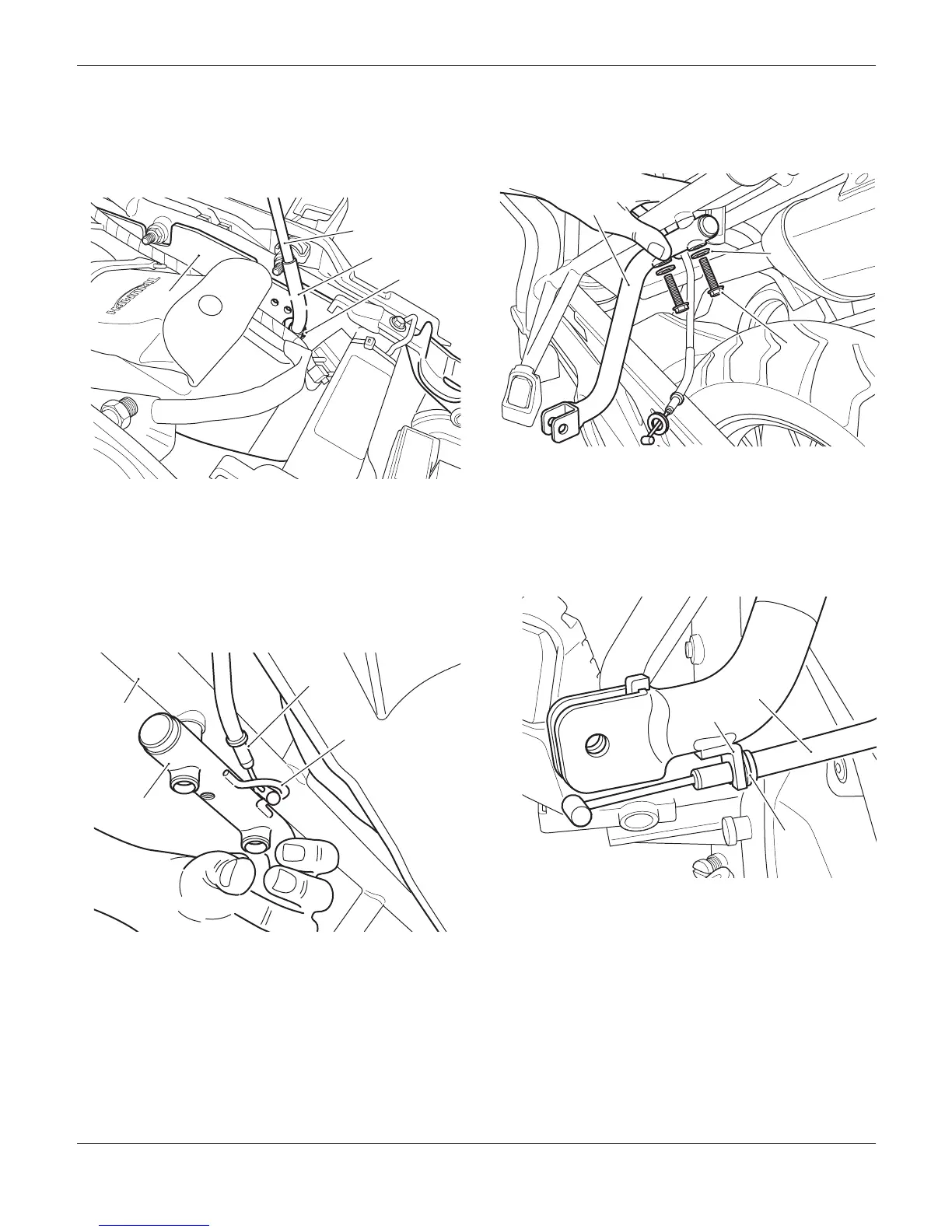

41. Feed the end of the pannier cable with the
curved metal tubing, over the main wiring
harness in the battery tray moulding and
through the large hole on the left hand side of
the battery tray moulding.
1. Battery tray moulding
2. Large hole
3. Pannier cable
4. Curved metal tubing
42. Whilst offering the left hand pannier third mount
to the motorcycle rear subframe, route the
pannier cable through the wire guide on the
pannier third mount.
1. Subframe
2. Left hand pannier third mount
3. Wire guide
4. Pannier cable
43. Secure the left hand pannier third mount to the
motorcycle rear subframe using two M6 x 50 mm
bolts and M6 washers, in the orientation shown.
Tighten the bolts to 12 Nm.
1. Left hand pannier third mount
2. Bolt, M6 x 50 mm
3. Washer, M6
44. Locate the outer cable into the bracket on the
left hand third mount, ensuring the washer is
positioned as shown below.
1. Pannier cable
2. Washer
3. Bracket, pannier third mount
2
1
4
3
2
1
3
4
2
1
3
2
1
3
