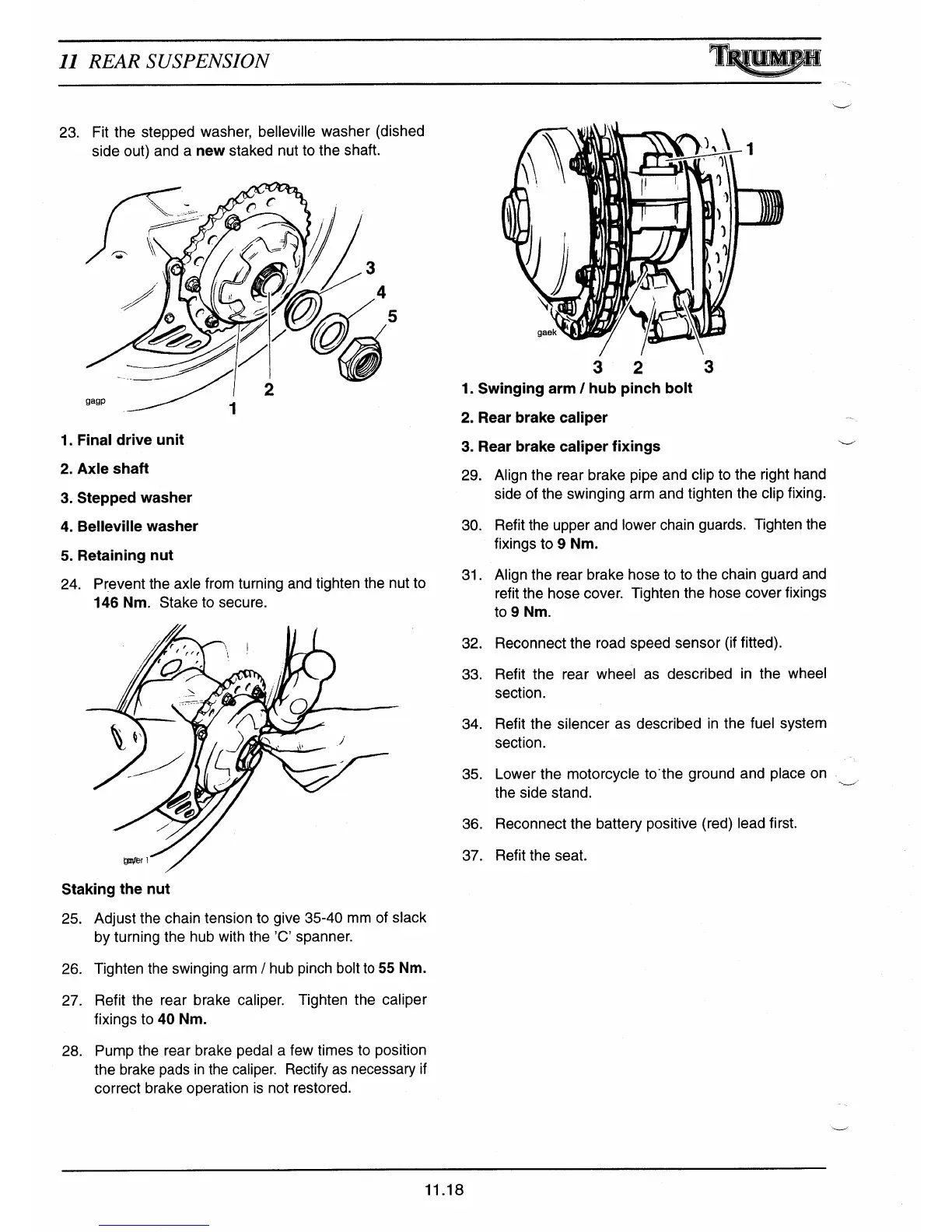

11 REAR SUSPENSION
23. Fit the stepped washer, belleville washer (dished
side out) and a
new
staked nut to the shaft.
gagp
lI/ 1
1.
Final drive unit
2.
Axle shaft
3.
Stepped washer
4.
Belleville washer
5.
Retaining nut
24. Prevent the axle from turning and tighten the nut to
146 Nm.
Stake to secure.
Staking the nut
25. Adjust the chain tension to give 35-40 mm of slack
by turning the hub with the 'C' spanner.
26. Tighten the swinging arm / hub pinch bolt to
55 Nm.
27. Refit the rear brake caliper. Tighten the caliper
fixings to 40 Nm.
28. Pump the rear brake pedal a few times to position
the brake pads in the caliper. Rectify as necessary if
correct brake operation is not restored.
3 2
3
1.
Swinging arm /
hub pinch bolt
2. Rear brake caliper
3.
Rear brake caliper fixings
29.
Align the rear brake pipe and clip to the right hand
side of the swinging arm and tighten the clip fixing.
30.
Refit the upper and lower chain guards. Tighten the
fixings to 9 Nm.
31.
Align the rear brake hose to to the chain guard and
refit the hose cover. Tighten the hose cover fixings
to
9 Nm.
32.
Reconnect the road speed sensor (if fitted).
33.
Refit the rear wheel as described in the wheel
section.
34.
Refit the silencer as described in the fuel system
section.
35.
Lower the motorcycle to*the ground and place on
the side stand.
36.
Reconnect the battery positive (red) lead first.
37. Refit the seat.
11.18
