484
5. When the bearing housing is fully fitted to the crankcase, remove and discard the
fixings.
6. Fit the retaining plate as noted for removal, make sure the OUT marking on the
retaining plate is facing outwards, and tighten the new fixings to 12 Nm.

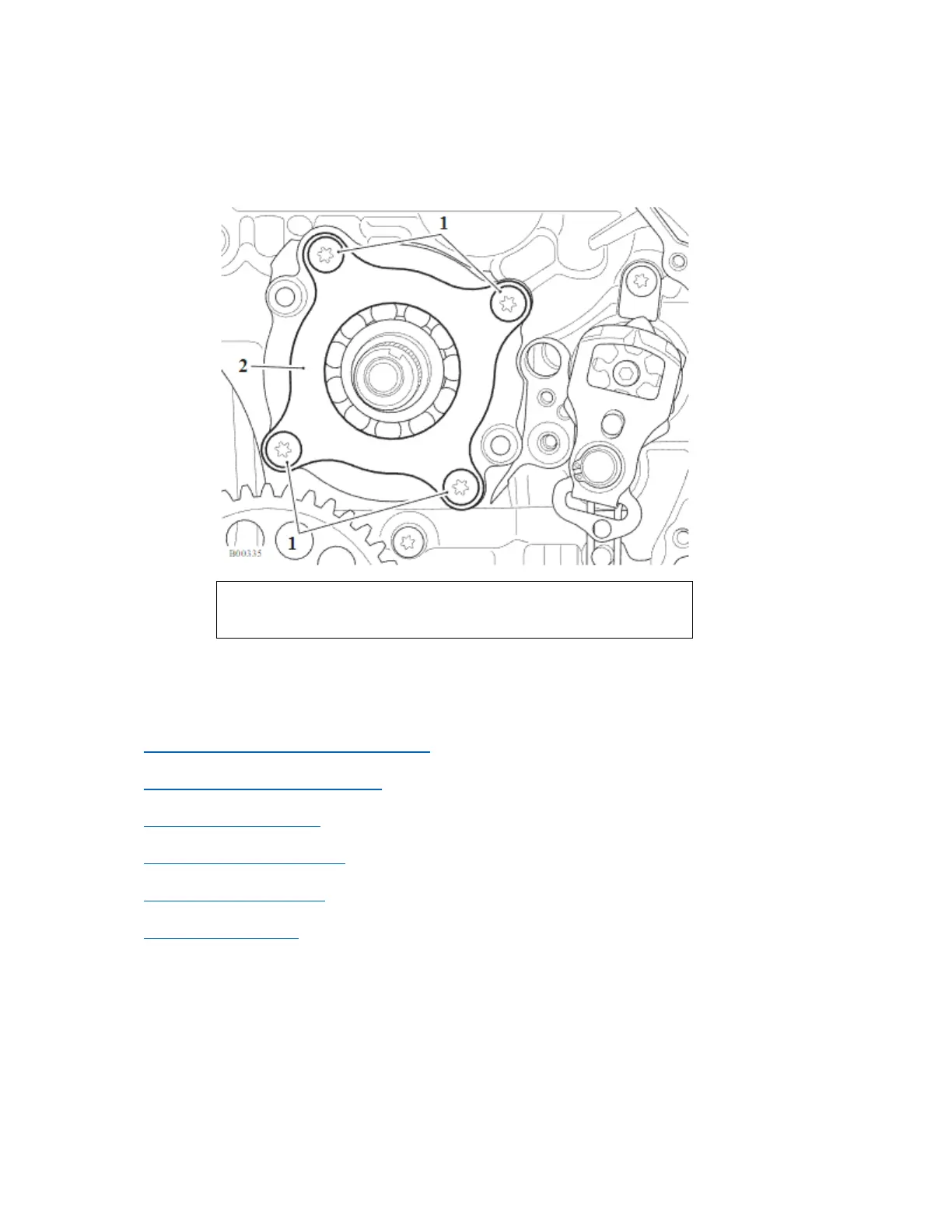

1. Fixings
2. Retaining plate
Perform the following operations:
• Gear Selector Forks - Installation
• Throttle Body - Installation
• Engine - Installation
• Fuel Tank - Installation
• Battery - Installation
• Seat - Installation
