Triumph T509 Speed Triple User Manual

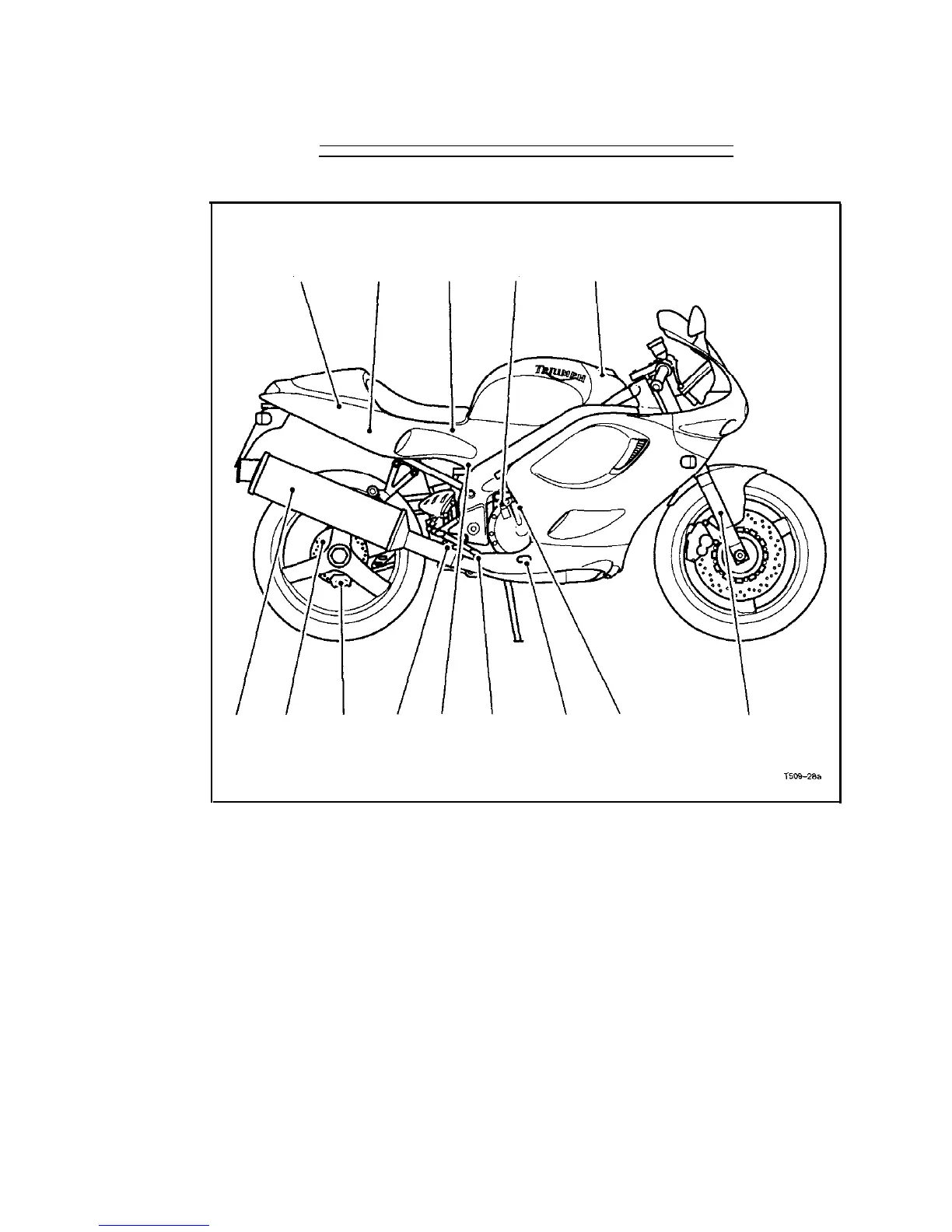

Parts Identification
16
26 15 22 27
28 17 18 25 19 20
21 23
24
15. Battery
22.
Oil Filler Plug
16. Tool Kit
23.
Clutch Cable
17. Rear Brake Disc
24.
Front Fork
18. Rear Brake Caliper 2.5. Rear Suspension Unit
19. Rear Brake Fluid Reservoir 26. Coolant Expansion Tank
20. Rear Brake Pedal
27. Coolant Pressure Cap
21. Oil Level Sight Glass
28.
Silencer
Page II

Triumph T509 Speed Triple Specifications

General

Displacement	885 cc
Bore x Stroke	76 x 65 mm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	6-speed
Front Brakes	Twin 320 mm discs, 4-piston calipers
Rear Brakes	Single 220 mm disc, 2-piston caliper
Ignition	Digital - inductive type
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Wheelbase	1, 430 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Front Suspension	43mm upside down forks, adjustable preload
Rear Suspension	Monoshock with adjustable preload
Fuel Capacity	18 liters
Final Drive	X ring chain
