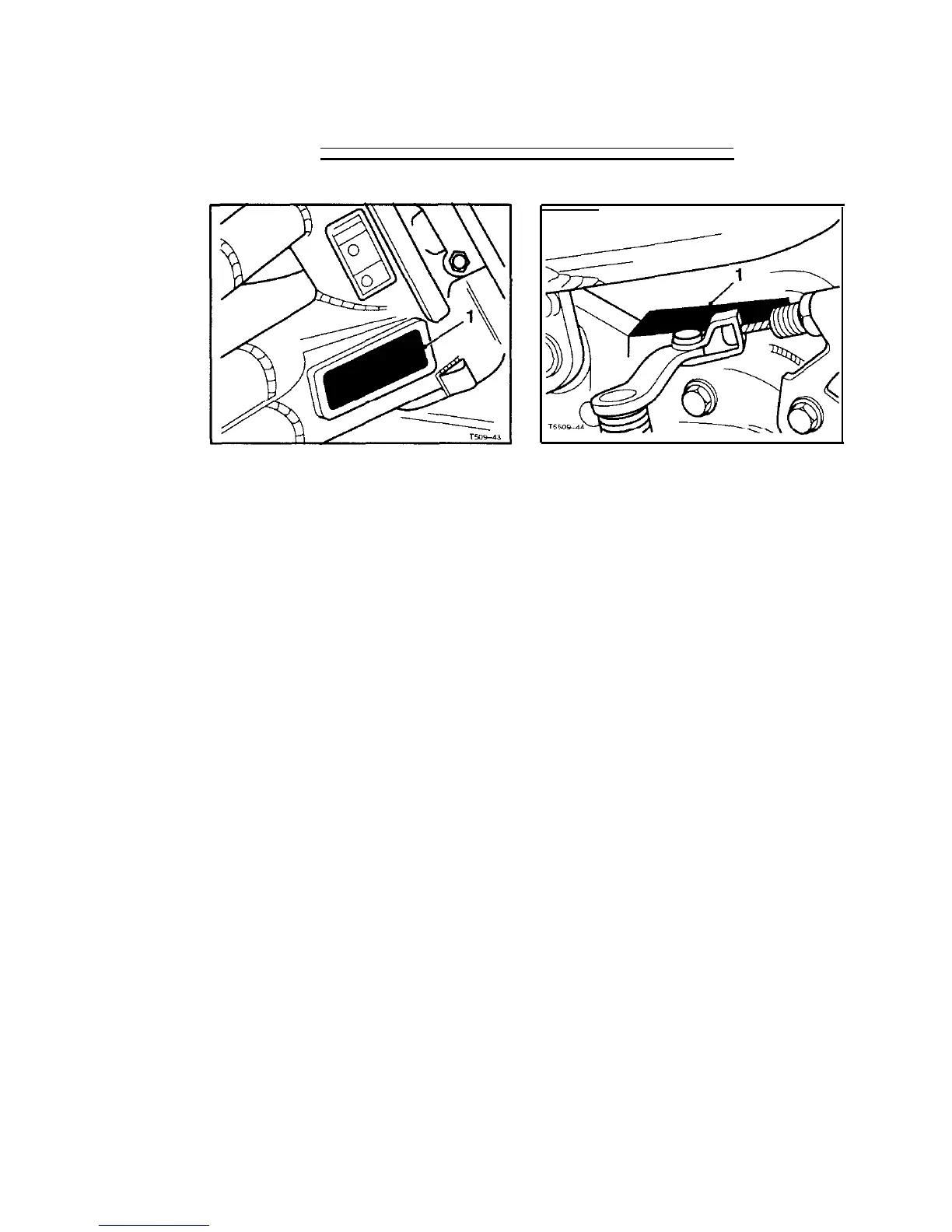

Serial Numbers
1. V.I.N. Number
Vehicle Identification Number (UN.)
The vehicle identification number is
stamped into the steering head. It is also
displayed on a plate, riveted to the frame,
immediately behind the steering head.
1. Engine Serial Number
Engine Serial Number
The engine serial number is stamped on the
crankcase, immediately above the clutch
cover.
Page
13

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Triumph T509 Speed Triple and is the answer not in the manual?

Triumph T509 Speed Triple Specifications

General IconGeneral
Displacement885 cc
Bore x Stroke76 x 65 mm
Fuel SystemMultipoint sequential electronic fuel injection
Transmission6-speed
Front BrakesTwin 320 mm discs, 4-piston calipers
Rear BrakesSingle 220 mm disc, 2-piston caliper
IgnitionDigital - inductive type
Front Tyre120/70 ZR17
Rear Tyre180/55 ZR17
Wheelbase1, 430 mm
Engine TypeLiquid-cooled, DOHC, inline 3-cylinder
Front Suspension43mm upside down forks, adjustable preload
Rear SuspensionMonoshock with adjustable preload
Fuel Capacity18 liters
Final DriveX ring chain
