Passenger Seat Removal
2
1

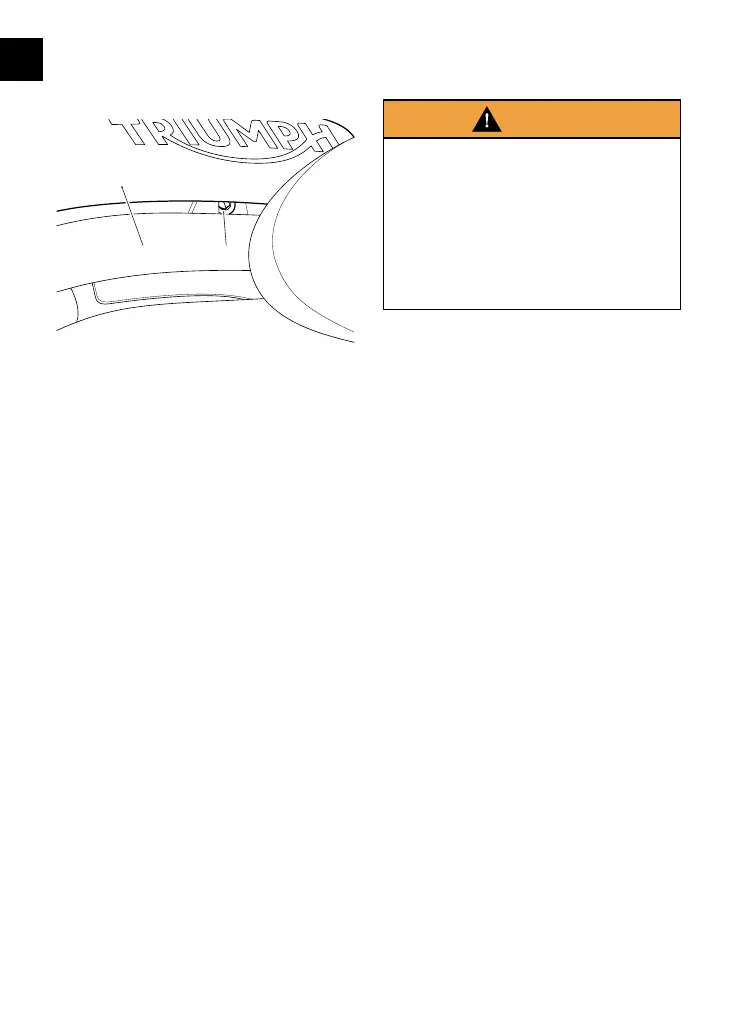

1. Passenger seat
2. Fastener
To remove the passenger seat:
▼ Remove the fastener securing the
passenger seat to the subframe.
▼ Lift the seat up from the back and
slide rearwards to remove it from
the motorcycle.
Rider’s Seat Removal
To remove the rider’s seat:
▼ Remove the passenger seat.
▼ Insert the ignition key into the seat
lock and turn it counterclockwise
while pressing down on the rear of
the seat. This will release the seat
from its lock.
▼ Lift the seat up from the back and
slide rearwards to remove it from
the motorcycle.
Scrambler 900 Seat Installation
The rider's seat must be installed
correctly before installing the passenger
seat on Scrambler 900 models.
Warning
To prevent detachment of the seat
during riding, after installation always
grasp the seat and pull firmly upwards.
If the seat is not correctly secured in
the lock, it will detach from the lock.
A loose or detached seat may cause
loss of motorcycle control and an
accident.
Rider’s Seat Installation
To install the rider’s seat:
▼ Engage the seat’s tongue under the
fuel tank.
▼ Press firmly down in the center of
the seat to engage the lock.
▼ An audible click can be heard when
the seat is correctly engaged in the
lock.
▼ Grasp the seat and make sure it is
securely retained.
Passenger Seat Installation
To install the passenger seat:
▼ Make sure that the rider’s seat is
correctly installed.
▼ Align the front locating lugs on the
passenger seat to their locating
slots on the subframe.
